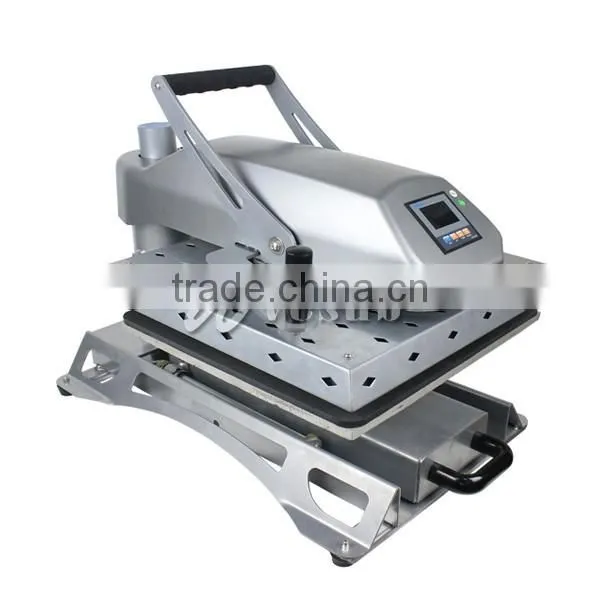

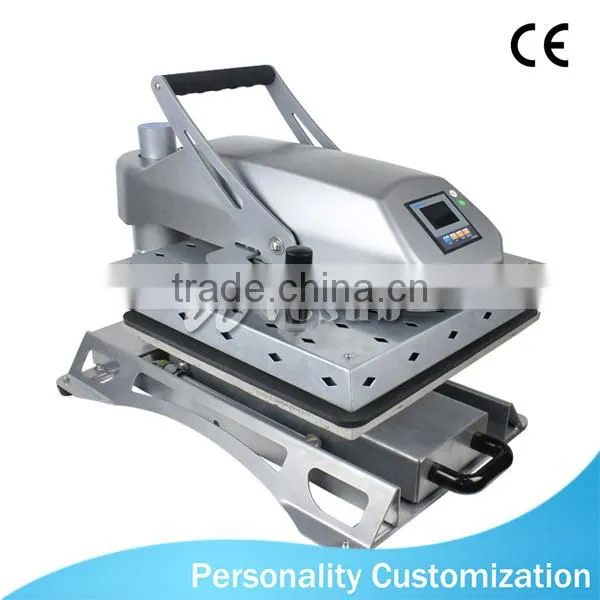

The PBSYN01 Flat Bed Heat press is a brand new product to Vesub. Superbly designed with a top build quality and an emphasis on user friendliness.
The Swing T-Shirt Heat Press Machine platen measures 50cm x 40cm which will accommodate the vast majority of sublimation products on the market. The digital display is easy to use and sympathetically programmed to allow calibration if required.
Another exciting feature is the base platen which is positioned on a roller track. This allows you to dress the press with your garment without possibility of burnt knuckles. A stand out feature that really makes the PBSYN01 an absolutely top class option for producing custom apparel as well as your other sublimation items.
Key Features
- Large swing away heat platen
- Easy to use digital display control panel
- Sliding base platen for ease of use and access
This heat transfer machine can transfer or pyrograph color designs or characters onto cotton ,fiber etc .It can also be used in scald printing and vesicant printing ,In a word ,it is economical and practical.
| Model No. | PBSYN01 |
| Machine Type | Manual,Rotary ,Draw-out Heat Press Machine |
| Controller | Digital Time & Temp. Controller |
| Voltage | 110V/220V |
| Power | 1.4kW/1.7kW |
| Time Range | 0-999sec. |
| Max. Temp. | 245°C (473°F) |
| Heating Board Size | 380mm x 380mm(15" x 15")/380mm x 580mm(15" x 23") |
| Swing-away | Yes |
| Under Plate | Draw-out available |
| Printing Thickness | Up to 32mm |
| Gross Weight | 40kg |
| Package Size | 760mm x 520mm x 580mm(30"x 20"x 23") |
| Application: | |
| T-shirt, Puzzle, Mouse Pad, Metal Board, Coaster, Slipper, Bag, Cushion, etc. | |
| Features: | |
| 1. Solid steel framework & stainless steel hardwares | |
| 2. New design apprearance, Laster direct structure, high precision | |
| 3. Fully digital temperature & Time control | |
| 4. Automatic Alarm,Temperature & Time recycle | |

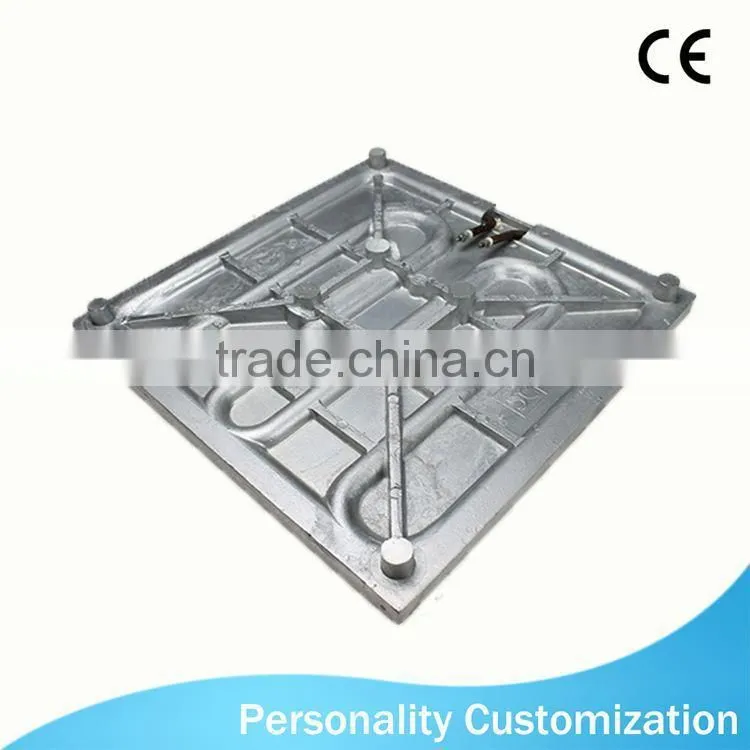

| 5. Teflon-coated thick heating platen, speed & even heater technology | |
| 6. Slide-out press platform for easy layout | |
| 7. Heat & pressure averaged, enable for high demand heat press | |
1:Image Printing
Get your image from digital camera, scan, and memory card or designed by yourself, then print out in an inkjet printer.
Note: Sublimation ink & paper and mirror printing is essential
2:Image Cutting
Select your favorite picture and cut the printed paper in a proper size.
Note: The size is a little large than the size of printing sheet.
3:Printed Image Fixed
Make sure the printed paper area fit for printing products. Then, fasten them by heat resistant tape to confirm no move when the pressure testing.
4:Printing Process
1.Turn on the power switch, adjust the temperature time to reqirements.
2.When the normal temperature attain, change switch to the " move" position, try to hot the needs product, when the quantity approve only then transforms to the " auto" position to massproduce.
3.When the switch transfers to" move" position, press “with the hand to starts” manually make the hot plank gets down under the pressure works, as the time to the automatic rise. In the process, if discovers the position is wrong, press the button of “urgent stop" immediately” to stopping very hot pressing. When switch to “automatic” position, only push the hot plank to the very position to be automatic presses. Then it will automatic descend press…
Vesub Digital Technology Ltd is a famous Sublimation Heat press & Sublimation blanks manufacturer with well-equipped testing equipment and strong technical force. We have engaged in sublimation field for over 6 years.
We produce and sell all kinds of heat transfer equipments and offer the materials such as coated ceramic mugs, ceramic plates, ceramic tiles, puzzles, T-shirts, mouse pads, phone cases, photo crystal and photo slates etc.
We persisit in the principal of "honest, professional, responsible" and aim at providing high quality products as well as service to all our customers.
The certificate of our company are:
1)CE 2)SGS 3)MSDS 4)RoHS 5)CCPIT 6)ISO certificate
About Delivery and Shipping
For stock products
We can deliver the products within 7 days after the payment has been confirmed.
The shipping way will be as your requirement: by sea, by air, by express, etc.
As for the costs and shipping period information, please contact us by telephone, mail, or online trade manager.
For OEM products
After the payment is confirmed, mass production will be arranged and finished within delivery date. The shipping way will be as your requirement: by sea, by air, by express, etc.
As for the costs and shipping period information, please contact us by telephone, mail, or online trade manager
