                     Color corrugated wall and roof roll forming machine

Features:

corrugated roof sheet roll forming machine

1.Light weight,environmenttal protection and economical

2.Durability and life-long used with high efficiency

3.Easy installed and operate

4.Nice appearance and fashion windproof

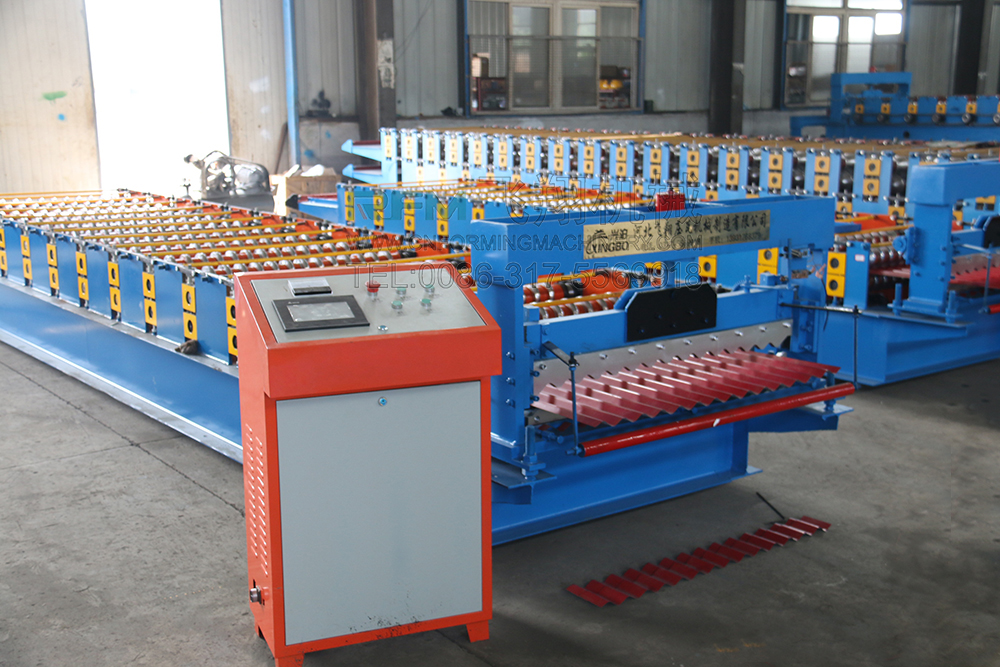

corrugated panel roll forming machine

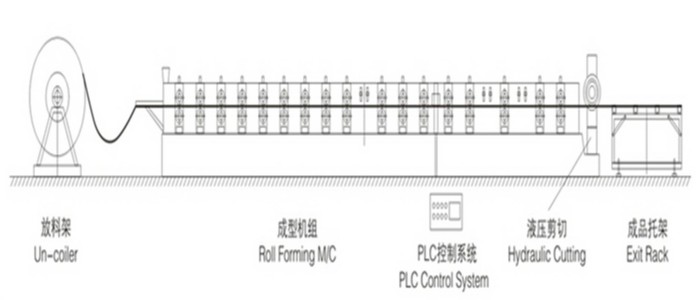

1.Working flow chart :

corrugated roof sheet roll forming machine

Manual decoiler→ Feeding material into machine→Roll forming machine→Measure  length→Hydraulic cutting→Finished Products

working

2.Components

parts

a.What the main forming machine will be???→as below

forming

b.How to cut to shape??→By hydraulic

Hydraulic system

Type of cutting

Hydraulic

Cutting motion

stop cutting

Cutting tolerance

±1mm

Cutter

Cr12

Cutter quantity

1 set

Working pressure

15-20MPA

Hydraulic oil

46#

Hydraulic oil weight

50-100KGS

Hydraulic power

4kw

Cutting length

As required

No distorting or wasting. High level safety factor.

Color corrugated wall and roof roll forming machine

c.Can we cut to length and set quantity??→PLC control can do it!

Color corrugated wall and roof roll forming machine
d.How can we guarantee your smooth use?? →Strict quality test!
Color corrugated wall and roof roll forming machine

Package of corrugated roof sheet roll forming machine

1 .Main forming machine and un-coiler is naked.

2 .Tighten to container with steel wirerope and welded machine with container by angel iron.

3 .PLC system and motor can be packed in waterproof plastic coverage if needed and necessary.

Color corrugated wall and roof roll forming machine


HeBei Feixiang Roll Forming Machinery Co.,Ltd

a. Two decades professional cold steel forming equipments manufacturer

b. One comapny with two factory,about 30000 square meter,more than 100 employees

c. National GB/T,CE,ISO9001:2008 Certificates

d. Built business relationship with customers from more than 65 countries and areas

Color corrugated wall and roof roll forming machine

Color corrugated wall and roof roll forming machine



After-Sale Service

1). Our engineer are available service oversea in warranty period
