Stud Track Roll Forming Machine
- 0 per Month
You May Like
Product Description
Stud Track Roll Forming Machine 1. Product Description: Components Of Whole Line:
Part 1 : De-Coiler
Part 2 : Forming System
Part 3 : Cutting Device
Part 4 : Electrical System And Hydraulic System
Part 5 : Run-Out Table
Machine Description
◊ This kind of machine has the best quality and the best price. It has accurate measurement and easy operating. We can design and manufacture the special type machine according to the customers' requirements.
Components of line:
| NO | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main machine for roll forming | set | 1 |
| 3 | PLC Control system | set | 1 |
| 4 | Hydraulic system | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Stackinig | set | 1 |
◊ Main Technical Parameters of Light Keel Roll Forming Machines, as followings:
| Product Sample Type | Stud Track Roll Forming Machine | |
| Feeding Machine | Inner Dia | 450mm-500mm |
| The largest Dia | 200 mm | |
| Bearing Capacity | 2500 Kg | |
| Forming Machine | Roller Station | 8 |
| Material of principal axis | 45# Steel | |
| Diameter of Roller | Φ40 mm | |
| Rolling Mould | One Set | |
| Blade | One Set | |
| Material of Blade | Cr12 | |
| Main Motor Power | 4.0Kw(Tai Wan Delta Frequency Converter) | |
| Forming Speed | 0-20 m/min 50m/min | |
| Machine Total Weight | 3.5 T | |
| Machine Dimension | 3000mm*700mm*900mm | |
| Hydraulic Cutter | Hydraulic track to cut off,Motor Power | 3.0 Kw |
| Controlling System | PLC Touch screen control system(Delta, Taiwan) | |

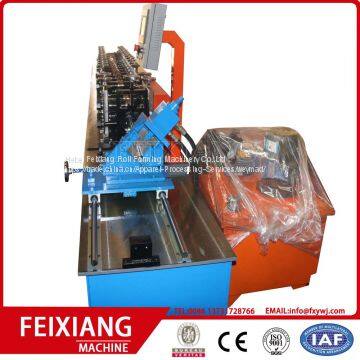

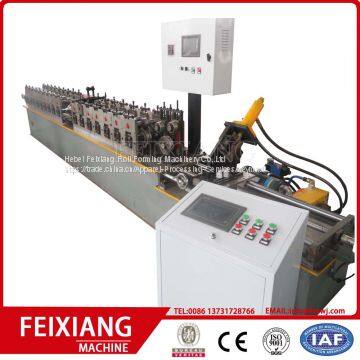

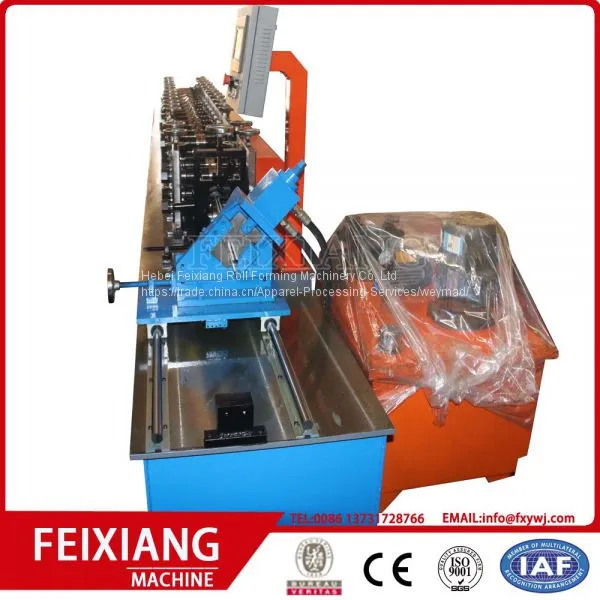

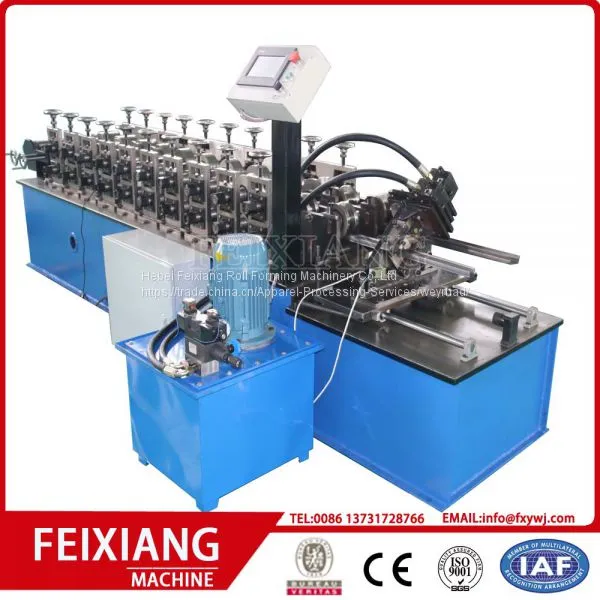

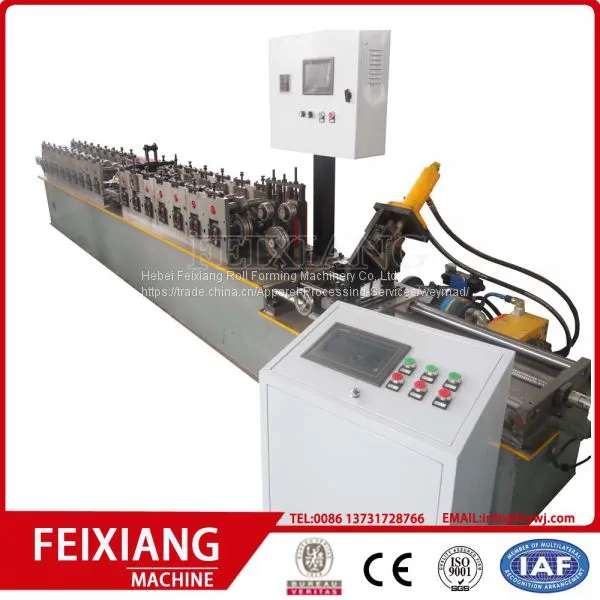

Machine Picture:
1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of USD100.
4. engineers available to service machinery overseas.
5. if you come to visit our factory,we can book the room for you, car pick up to send.
