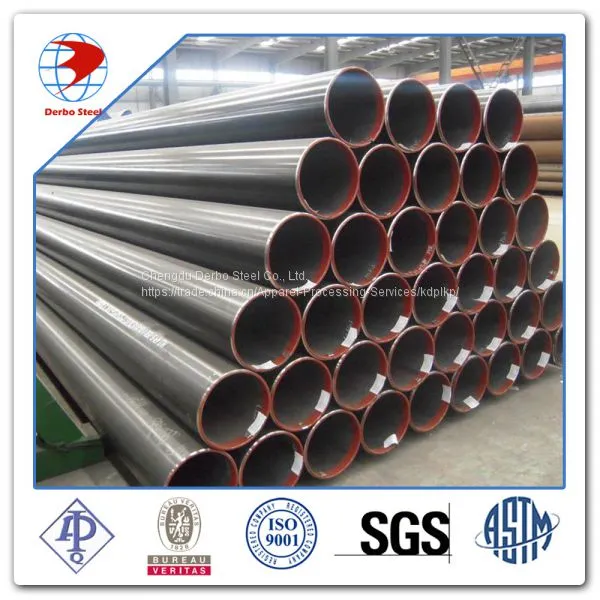

Seamless Steel Pipe ASTM A333 Grade 6 photo-2

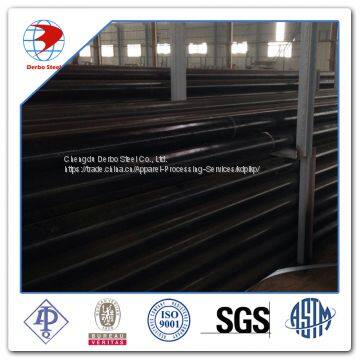

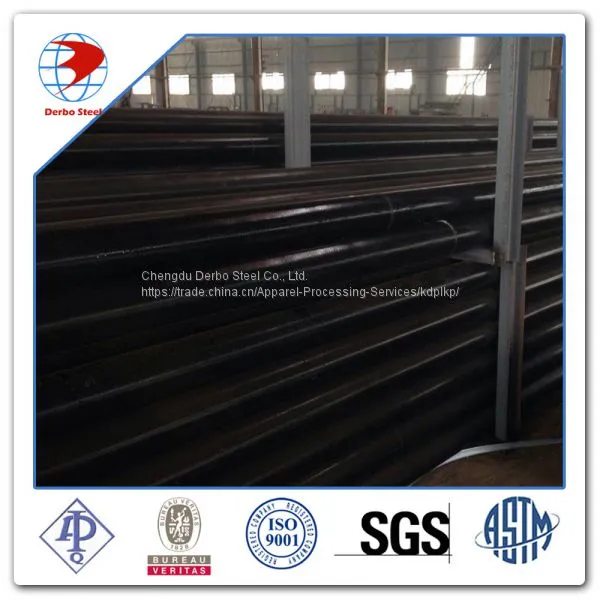

Seamless Steel Pipe ASTM A333 Grade 6 photo-3

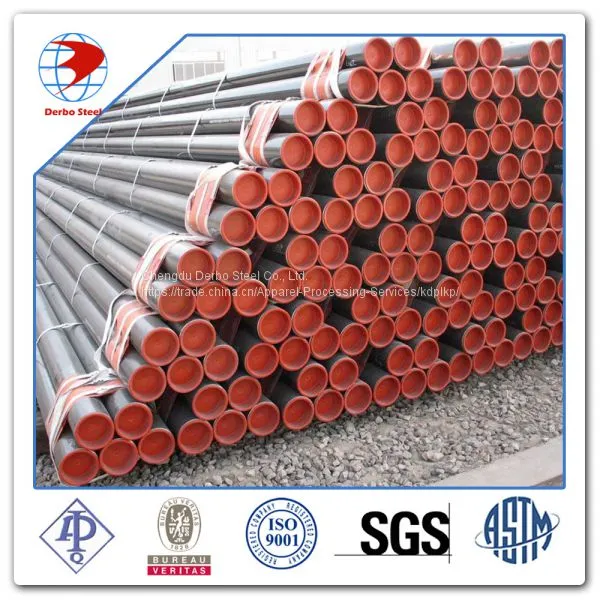

Seamless Steel Pipe ASTM A333 Grade 6 photo-4

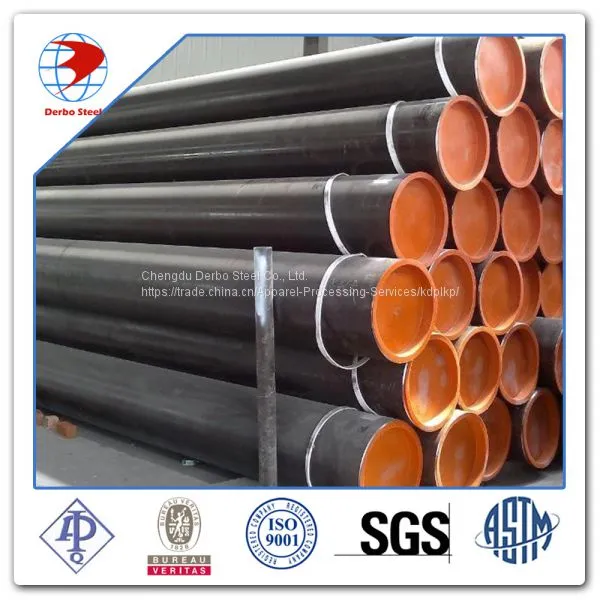

Seamless Steel Pipe ASTM A333 Grade 6 photo-5
Seamless Steel Pipe ASTM A333 Grade 6 photo-6
Negotiable MOQ: 1 Bag (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2012
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Contact Supplier Request Quote Chat Now
Chengdu Derbo Steel Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Seamless steel Pipe ASTM A333 grade 6

1.Low Temoerature Techncial Parameters

Out diameter: 21.3mm-609.6mm

Thickness:        SCH30 STD 40 80 160 XXS

Length:         SRL; DRL; 5.8M; 11.8M, Fixed Length as per client`s requirements.

Steel Standard: ASTM A333.ASTM A671

Steel Material: Grade 1,Grade 3,Grade 6,Grade 7,Grade,7,Grade 9,CC60,CC65,CC70 ECT

Surface:        Bare, Oiled, Anti-Corrosion Coating (3LPE 3LPP FBE Etc.);

Package:      Plain/Bevel End With End Caps. Waterproof Packing, Bare Packing, In bundle, Nest Packing, Standard Export Packing

Inspection:       SGS; BV.

Certificate:       ISO9001; 2000

Date of Delivery: After received deposit 15-60 Days According to the Quantity

Payment:      T/T; 100% L/C at sight; Western Union; D/A; D/P; O/A

Port of Shipment:     Xingang Tianjin; Shanghai Port; Guangdong port; Ningbo Port; Qingdao port.



Chemical Composition and Mechanical Property For ASTM A333
Steel Grade Chemcial Composition
Mechanical performance
C(Max) Si Mn P(Max) S(Max) Ni Tensile strenght(Min) Yield Strenght
(Min)
psi Mpa psi Mpa
Grade 1 0.3
0.4-1.06 0.025 0.025
55000 380 30000 205
Grade 3 0.19 0.18-0.37 0.31-0.64 0.025 0.025 3.18-3.82 65000 450 35000 240
Grade 4 0.12 0.08-0.37 0.5-1.05 0.025 0.025 0.47-0.98 60000 415 35000 240
Grade 6 0.3 0.10(Min) 0.29-1.06 0.025 0.025
60000 415 35000 240
Grade 7 0.19 0.13-0.32 0.90(Max) 0.025 0.025 2.03-2.57 65000 450 35000 240
Grade 8 0.13 0.13-0.32 0.90(Max) 0.025 0.025 8.4-9.6 100000 690 75000 515
Grade 9 0.2
0.4-1.06 0.025 0.025 1.6-2.24 63000 435 46000 315
Grade 10 0.2 0.1-0.35 1.15-1.5 0.035 0.015 0.25(Max) 80000 550 65000 450
Grade 11 0.1 0.35(Max) 0.6(Max) 0.025 0.025 35-37 65000 450 35000

240

Steel Grade Impact Temperature Requirement For ASTM A333
℉ ℃
Grade 1 -50 -45
Grade 3 -150 -100
Grade 4 -150 -100
Grade 6 -50 -45
Grade 7 -100 -75
Grade 8 -320 -195
Grade 9 -100 -75
Grade 10 -75 -60
Grade 11 -320 -195

 2.Low Temparature Steel Pipe Showcase

Low Temperature Pipe Showcase

3.Low Temperature Pipe Facility

Hot Rolled Seamless Steel Pipe Facility

4.Low Temperature Pipe Inspection Equipment

Low Temperature Pipe Inspection Equipment

5.Low Temperature Pipe Packing and Transportation

steel pipe packing and transportation 8

Our Advantages



1. Professional Sales Team With More Than 10 Years Experience In Steel Industry.

2. Technical Engineer From Oil Company and Third Party Inspection Company.

3. One-Stop Service for steel industry, Especially for pipeline project application.

4. Rich Cooperation Experience With SHELL,Lukoil,Samsung Etc.

5. Competitive price,Fast Delivery Time,Excellent Service.



Quality Control



Quality control is the basic but most important point for qualification of the steel pipes/tubes&fittings. We carry out in-production supervision and after-production inspection for our products. We ensure that the products are produced,tested,and inspected strictly according to standard specification under supervision of our QA engineer during production. After production inspection is carried out by worldwide famous third party inspection company like BV,SGS,Intertek Etc.
