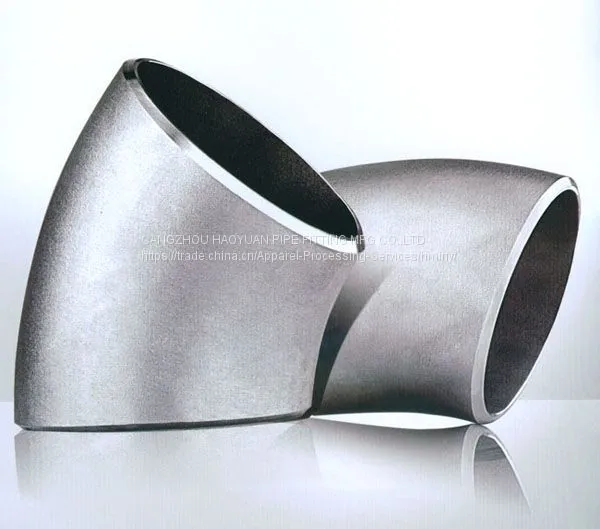

Help CenterCarbon Steel 45 Degree Short Radius Butt Weld Elbow
Related Products

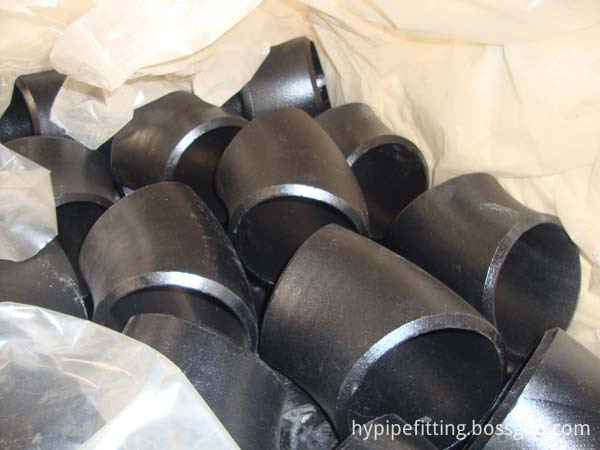

Carbon steel 45 degree short radius butt welding elbow Product Specifications: DN15 --- DN3200 (seamless pipe production range: DN15-DN600 butt welded pipe DN600-DN3200) Wall thickness: Sch5-160 Executive Standard: GB, ANIS, Stainless steel, alloy steel Packing: fumigation-free wooden boxes, trays can be carried out in accordance with customer requirements special packaging. Specifications: JIS, BS, DIN, Italian standard, etc. Material: carbon steel, Price: Due to frequent changes in product prices, you can contact us through our fast consultation. Applications: petroleum gas pipeline engineering, natural gas pipeline engineering, chemical plants, power plants, shipyards, pharmaceuticals, dairy, beer, beverages, sewage treatment, etc. Note: Carbon steel: 10 #, 20 #, A3, Q235A, 20G, 16Mn, ASTM A234, ASTM A105 and other stainless steel: ASTM A403, 1Cr18Ni9Ti, 0Cr18Ni9, 00Cr19Ni10, 00Cr17Ni14Mo2,304,304L, 316,316L and other alloy steel: 16MnR, Cr5Mo, 12Cr1MoV, 10CrMo910, 15CrMo, 12Cr2Mo1, A335P22, St45.8 / Ⅲ , A106B
Steel Elbow Specifications
| Nominal Diameter | Outside Diameter | Center to End | Center to Center | Back to Face | ||||||
| 45°Elbow | 90°Elbow | 180°Elbow | ||||||||
| B | A | O | K | |||||||
| DN | NPS | Series A | Series B | Long | Long | Short | Long | Short | Long | Short |
| 15 | 1/2 | 21.3 | 18 | 16 | 38 | - | 76 | - | 48 | - |
| 20 | 3/4 | 26.9 | 25 | 19 | 38 | - | 76 | - | 51 | - |
| 25 | 1 | 33.7 | 32 | 22 | 38 | 25 | 76 | 51 | 56 | 41 |
| 32 | 1.1/4 | 42.4 | 38 | 25 | 48 | 32 | 95 | 64 | 70 | 52 |
| 40 | 1.1/2 | 48.3 | 45 | 29 | 57 | 38 | 114 | 76 | 83 | 62 |
| 50 | 2 | 60.3 | 57 | 35 | 76 | 51 | 152 | 102 | 106 | 81 |
| 65 | 2.1/2 | 76.1(73) | 76 | 44 | 95 | 64 | 190 | 127 | 132 | 100 |
| 80 | 3 | 88.9 | 89 | 51 | 114 | 76 | 229 | 152 | 159 | 121 |
| 90 | 3.1/2 | 101.6 | - | 57 | 133 | 89 | 267 | 178 | 184 | 140 |
| 100 | 4 | 114.3 | 108 | 64 | 152 | 102 | 305 | 203 | 210 | 159 |
| 125 | 5 | 139.7 | 133 | 79 | 190 | 127 | 381 | 254 | 262 | 197 |
| 150 | 6 | 168.3 | 159 | 95 | 229 | 152 | 457 | 305 | 313 | 237 |
| 200 | 8 | 219.1 | 219 | 127 | 305 | 203 | 610 | 406 | 414 | 313 |
| 250 | 10 | 273.0 | 273 | 159 | 381 | 254 | 762 | 508 | 518 | 391 |
| 300 | 12 | 323.9 | 325 | 190 | 457 | 305 | 914 | 610 | 619 | 467 |
| 350 | 14 | 355.6 | 377 | 222 | 533 | 356 | 1067 | 711 | 711 | 533 |
| 400 | 16 | 406.4 | 426 | 254 | 610 | 406 | 1219 | 813 | 813 | 610 |
| 450 | 18 | 457.2 | 478 | 286 | 686 | 457 | 1372 | 914 | 914 | 686 |
| 500 | 20 | 508.0 | 529 | 318 | 762 | 508 | 1524 | 1016 | 1016 | 762 |
| 550 | 22 | 559 | - | 343 | 838 | 559 | 1676 | 1118 | 1118 | 838 |
| 600 | 24 | 610 | 630 | 381 | 914 | 610 | 1829 | 1219 | 1219 | 914 |
| 650 | 26 | 660 | - | 406 | 991 | 660 | 1982 | 1320 | - | - |
| 700 | 28 | 711 | 720 | 438 | 1067 | 711 | 2134 | 1422 | - | - |
| 750 | 30 | 762 | - | 470 | 1143 | 762 | 2286 | 1524 | - | - |
| 800 | 32 | 813 | 820 | 502 | 1219 | 813 | 2438 | 1626 | - | - |
| 850 | 34 | 864 | - | 533 | 1295 | 864 | 2590 | 1728 | - | - |
| 900 | 36 | 914 | 920 | 565 | 1372 | 914 | 2744 | 1828 | - | - |
| 950 | 38 | 965 | - | 600 | 1448 | 965 | 2896 | 1930 | - | - |
| 1000 | 40 | 1016 | 1020 | 632 | 1524 | 1016 | 3048 | 2032 | - | - |
| 1050 | 42 | 1067 | - | 660 | 1600 | 1067 | 3200 | 2134 | - | - |
| 1100 | 44 | 1118 | 1120 | 695 | 1676 | 1118 | 3352 | 2236 | - | - |
| 1150 | 46 | 1168 | - | 727 | 1753 | 1168 | 3506 | 2336 | - | - |
| 1200 | 48 | 1220 | 1220 | 759 | 1829 | 1219 | 3658 | 2440 | - | - |
High-quality products

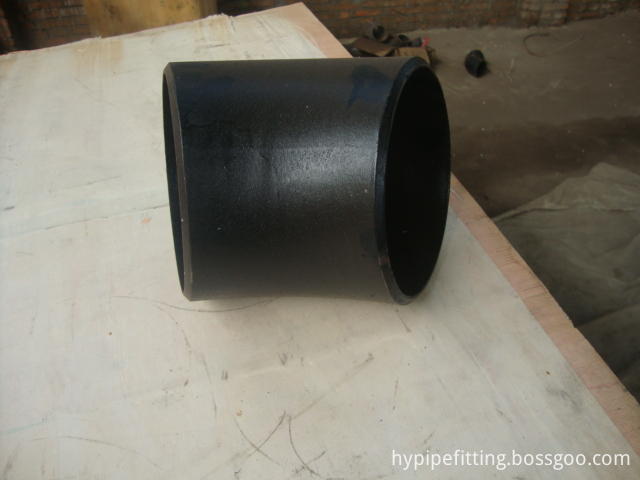

ANSI B16.9 A234 WPB Short Radius Elbow is to change the direction of the pipe in the piping system. 45 °elbow and 90 °elbow180 °elbow three kind most commonly used, according to project needs, also include 60 °bend and other non-normal angles.according to the bend radius: 1D elbow, 1.5D elbow, 3D elbow, 4D elbow, 5D elbow and so on.Wall thickness of pressure rating for general use or in mm. For example ASME elbow wall thickness class is divided into Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS, Sce100, Sch120, Sch160, XXS, etc.
