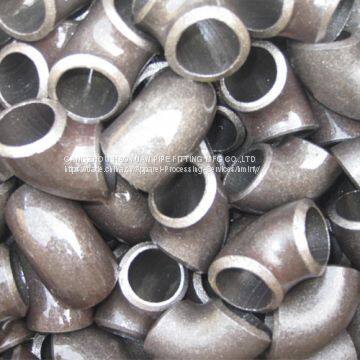

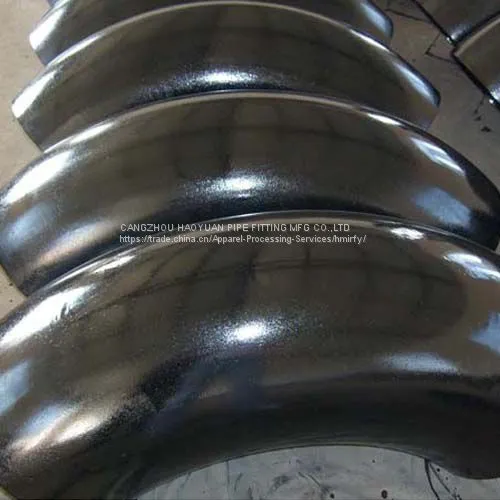

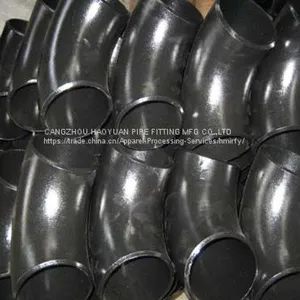

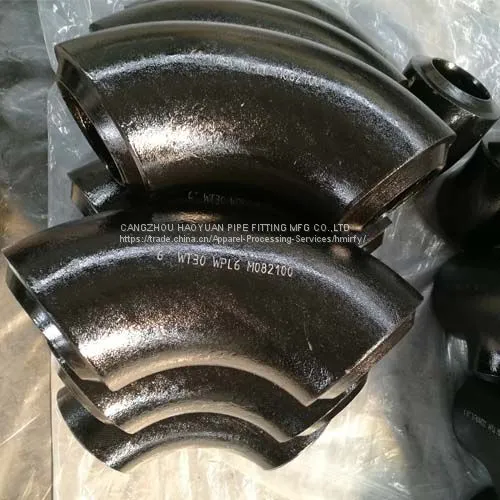

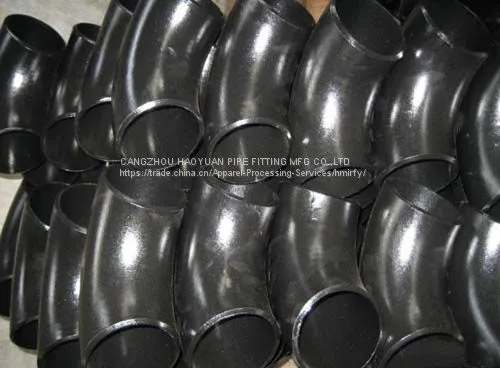

WPL6 90 Degree Long Radius Elbow

WPL6 90 Degree Long Radius Elbow thumbnail-1
WPL6 90 Degree Long Radius Elbow thumbnail-2
WPL6 90 Degree Long Radius Elbow thumbnail-3
WPL6 90 Degree Long Radius Elbow thumbnail-4
WPL6 90 Degree Long Radius Elbow thumbnail-5
WPL6 90 Degree Long Radius Elbow thumbnail-6
WPL6 90 Degree Long Radius Elbow photo-1
WPL6 90 Degree Long Radius Elbow photo-2
WPL6 90 Degree Long Radius Elbow photo-3
WPL6 90 Degree Long Radius Elbow photo-4
WPL6 90 Degree Long Radius Elbow photo-5
WPL6 90 Degree Long Radius Elbow photo-6
Negotiable MOQ: 1 Bag (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2003
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Contact Supplier Request Quote Chat Now
Cangzhou Haoyuan Pipe Fitting Mfg Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

WPL6 Elbow American standard low-temperature seamless or welded pipe, the corresponding pipe A333 Gr.6 is generally used for low temperature -45 degrees environment. ASTM A420 WPL6 heat treatment at -45 ℃ to do low-temperature impact test, rather than -40 ℃, the impact of the average is greater than 18J.

Elbow Specifications

Nominal Diameter

Outside Diameter
at Bevel

Center to End

Center to Center

Back to Face

45°Elbow

     90°Elbow

180°Elbow

B

      A

      O

      K

DN

NPS

Series A

Series B

Long
Radius

Long
Radius

Short
  Radius

Long
Radius

Short
  Radius

Long
Radius

Short
  Radius

15

1/2

21.3

18

16

38

-

76

-

48

-

20

3/4

26.9

25

19

38

-

76

-

51

-

25

1

33.7

32

22

38

25

76

51

56

41

32

1.1/4

42.4

38

25

48

32

95

64

70

52

40

1.1/2

48.3

45

29

57

38

114

76

83

62

50

2

60.3

57

35

76

51

152

102

106

81

65

2.1/2

76.1(73)

76

44

95

64

190

127

132

100

80

3

88.9

89

51

114

76

229

152

159

121

90

3.1/2

101.6

-

57

133

89

267

178

184

140

100

4

114.3

108

64

152

102

305

203

210

159

125

5

139.7

133

79

190

127

381

254

262

197

150

6

168.3

159

95

229

152

457

305

313

237

200

8

219.1

219

127

305

203

610

406

414

313

250

10

273.0

273

159

381

254

762

508

518

391

300

12

323.9

325

190

457

305

914

610

619

467

350

14

355.6

377

222

533

356

1067

711

711

533

400

16

406.4

426

254

610

406

1219

813

813

610

450

18

457.2

478

286

686

457

1372

914

914

686

500

20

508.0

529

318

762

508

1524

1016

1016

762

550

22

559

-

343

838

559

1676

1118

1118

838

600

24

610

630

381

914

610

1829

1219

1219

914

650

26

660

-

406

991

660

1982

1320

-

-

700

28

711

720

438

1067

711

2134

1422

-

-

750

30

762

-

470

1143

762

2286

1524

-

-

800

32

813

820

502

1219

813

2438

1626

-

-

850

34

864

-

533

1295

864

2590

1728

-

-

900

36

914

920

565

1372

914

2744

1828

-

-

950

38

965

-

600

1448

965

2896

1930

-

-

1000

40

1016

1020

632

1524

1016

3048

2032

-

-

1050

42

1067

-

660

1600

1067

3200

2134

-

-

1100

44

1118

1120

695

1676

1118

3352

2236

-

-

1150

46

1168

-

727

1753

1168

3506

2336

-

-

1200

48

1220

1220

759

1829

1219

3658

2440

-

-

High-quality products

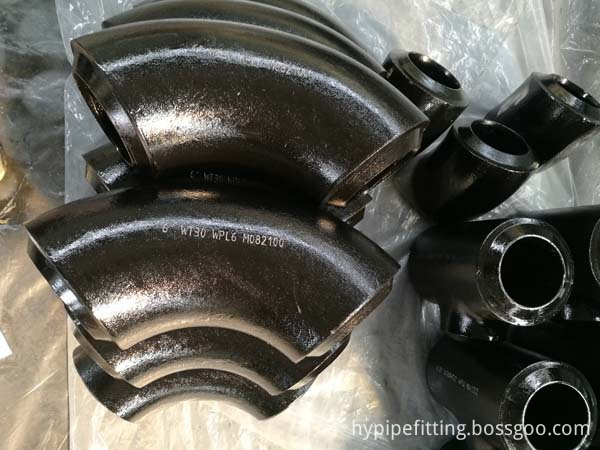

WPL6 90 Degree Long Radius Elbow

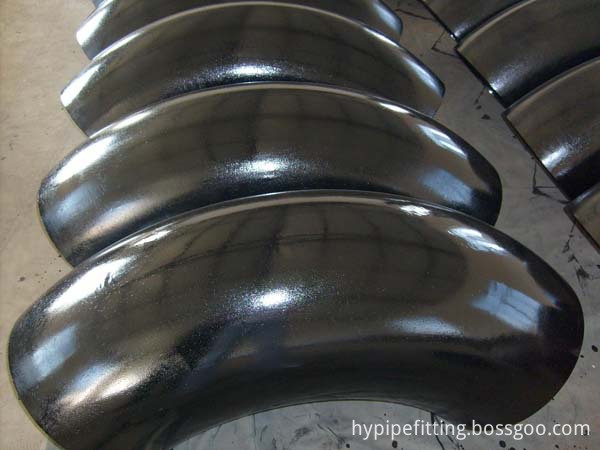

Ansi elbow

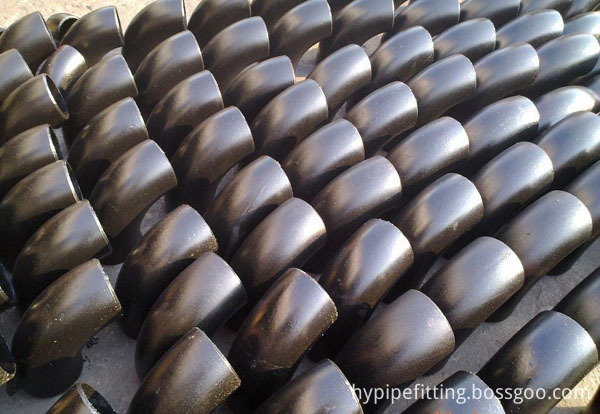

Pipe fittings


Seamless Carbon Steel Elbow  is to change the direction of the pipe in the piping system. 45 °elbow and 90 °elbow 180 °elbow three kind most commonly used, according to project needs, also include 60 °bend and other non-normal angles.Two 45-degree elbows can not be welded into a 90-degree bend to use, because the stress concentration area is the elbow pipe, expansion and most of the stress deformation during cooling are released at the elbow. Also weld itself to be the weak link, fatigue deformation will soon cause cracking damage, which planted a lot of hidden dangers, so do not at immediate convenience, eventually leading to huge losses.

Our packaging

radius of 90 degree elbow


packaging


Production Process

Pipe Elbow Production Process


Elbow Production


Elbow beveling


Production Process


Sales Network









Product Tags: WPL6 90 Degree Long Radius Elbow , WPL6 Long Radius Elbow , WPL6 90 Degree Elbow
