Product Name :Winch Rope
Material :UHMWPE
Color : As You Like
Products Description :

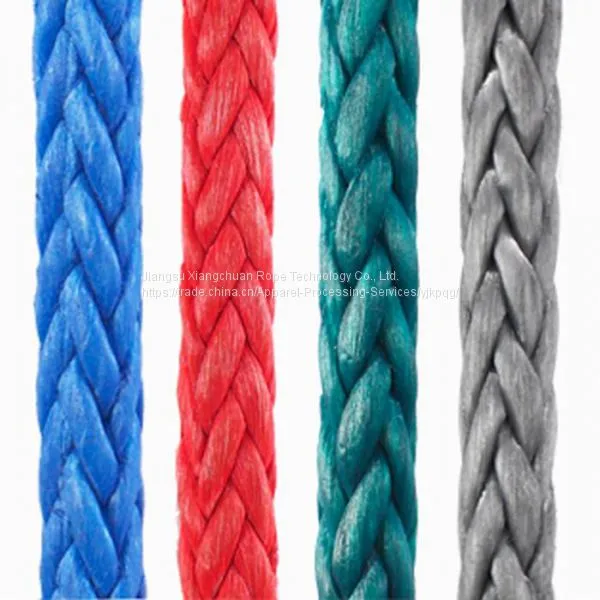

The synthetic winch rope is made of UHMWPE Fiber have super high Strength.Safety thimble, and winch attachment come fully assembled. All you will need to do is install the rope on your winch drum.
Application : mooring line, anchor line, towing rope, lifting sling, tug rope
Length per coil: 220m
Spliced strength: ±10% lower
Weight and length tolerance: ±5%
MBL: ISO 2307 standard
Other sizes can be customized
Parameter Table:
| | |||||
| dia | cir | weight | mbl | ||
| mm | inch | kgs/100m | lbs/100ft | ton | kn |
| 6 | 3/4 | 2.3 | 1.5 | 3.16 | 31.6 |
| 8 | 1 | 4 | 2.5 | 5.18 | 51.8 |
| 10 | 1–1/4 | 6.1 | 37 | 7.94 | 79.4 |
| 12 | 1–1/2 | 8.7 | 5.3 | 13 | 130 |
| 14 | 1–3/4 | 11.7 | 7.1 | 15 | 150 |
| 16 | 2 | 15.1 | 9.2 | 19.6 | 196 |
| 18 | 2–1/4 | 19 | 11.6 | 24.3 | 247 |
| 20 | 2–1/2 | 23.2 | 14.3 | 30.2 | 302 |
| 22 | 2–3/4 | 28.1 | 17.2 | 35.9 | 359 |
| 24 | 3 | 33.1 | 20.4 | 42.1 | 421 |
| 26 | 3–1/4 | 38.4 | 24 | 48.3 | 483 |
| 28 | 3–1/2 | 44.5 | 27.8 | 55.1 | 551 |
| 30 | 3–3/4 | 50.6 | 31.8 | 61.9 | 619 |
| 32 | 4 | 57.5 | 36.2 | 70.3 | 703 |
| 34 | 4–1/4 | 64.8 | 40.8 | 77.8 | 778 |
| 36 | 4–1/2 | 72 | 45.8 | 84.2 | 842 |
| 38 | 4–3/4 | 79.8 | 51 | 93.6 | 936 |
| 40 | 5 | 88.1 | 56.5 | 102 | 1020 |
| 42 | 5–1/4 | 95.5 | 62.2 | 111 | 1090 |
| 44 | 5–1/2 | 106 | 68.3 | 118 | 1180 |
| 46 | 5–5/8 | 114.6 | 74.6 | 130 | 1280 |
| 48 | 6 | 125 | 81.3 | 138 | 1380 |
| 50 | 6–1/4 | 135.4 | 88 | 1746 | 1485 |
| 52 | 6–1/2 | 146 | 95.3 | 159 | 1590 |
| 56 | 7 | 169 | 111 | 183 | 1830 |
| 60 | 7–1/2 | 193 | 127 | 205 | 2050 |
| 64 | 8 | 220 | 144 | 230 | 2300 |
| 68 | 8–1/2 | 248 | 163 | 256 | 2560 |
| 72 | 9 | 278 | 182 | 285 | 2850 |
| 76 | 9–3/8 | 309 | 204 | 315 | 3214 |
| 80 | 10 | 343 | 225 | 355 | 3480 |
| 88 | 11 | 417 | 272 | 429 | 4210 |
| 96 | 12 | 497 | 324 | 510 | 5000 |
