IBR Roof Panel Machine /1000 Trapezoid Steel Roofing Sheet Roll Forming Mahcine

IBR Roof Panel Machine /1000 Trapezoid Steel Roofing Sheet Roll Forming Mahcine

1000 Trapezoid Steel Roofing Sheet Roll Forming Mahcine are commonly used by most of our buyer. So just from this aspect,you can know how popular our machine and the IBR roof panel made by our machine are. The most attractive and different place for our machine is that we can design and customized many part of our machine as our customer's request.

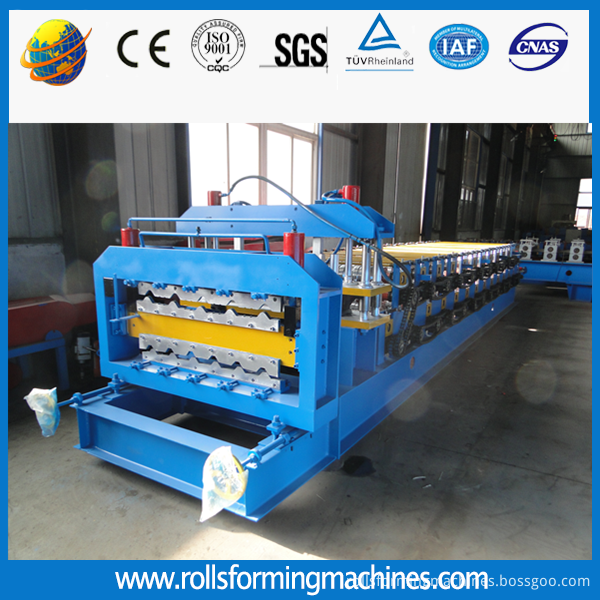

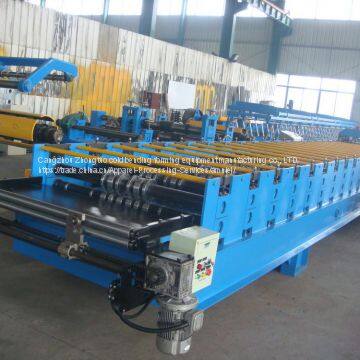

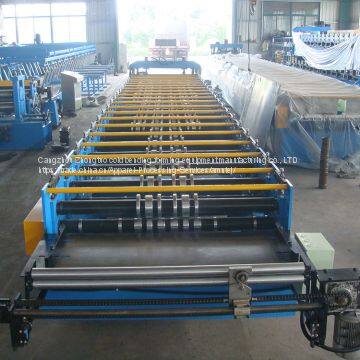

Picture of 1000 Trapezoid Steel Roofing Sheet Roll Forming Mahcine

Parameter of 1000 Trapezoid Steel Roofing Sheet Roll Forming Mahcine

Processing material: colored steel plate, galvanized plate.

Material thickness: 0.3- 0.8 mm

Material hardness: 195 mpa---350 mpa

Formed width:1020 mm

Forming speed: 12 m/min

Size of the main part: about

8500 х 1650 х 1500

Weight of main part: 5. 5 tons

Voltage: 380 V/50 HZ 3 Phase or as your required

Roller fixer : middle plate

Frame : 350 mm H beam steel welded

Drive mode: case of differential

Material of rollers: 45# steel, surface hard chromium plating.

Material of shafts: 45# steel

Diameter of shafts: φ 80 mm

Number of rollers : 15 rollers

Main power: 7.5 kw
