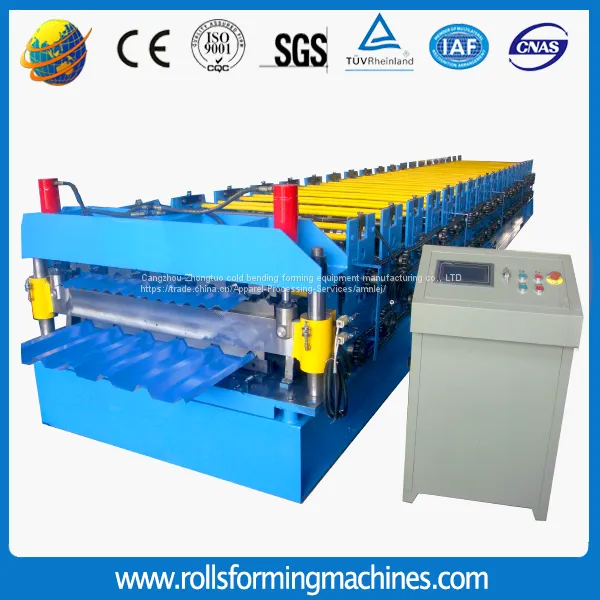

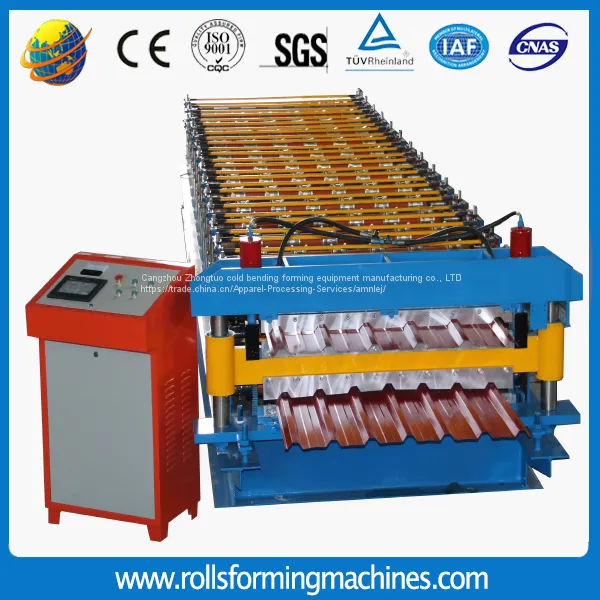

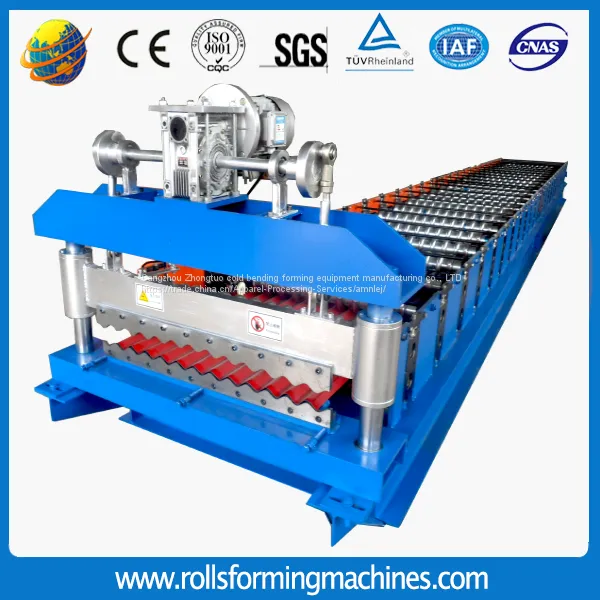

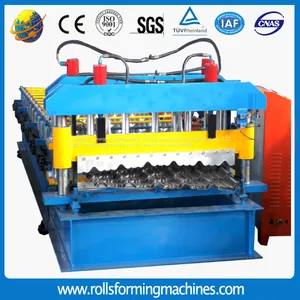

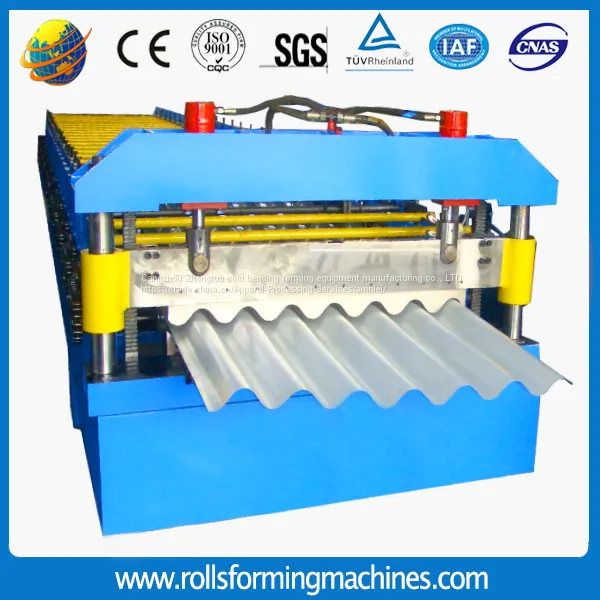

Roll forming machine metal roofing

Roll forming machine metal roofing Support you money !! Support you service !! Support you technology !!
PLC control system !! Hydraulic cutting system !! Mult-language conversion system !!

Roll forming machine metal roofing Uncoiler System:
Usage: It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity: 5T
Uncoiling width: 1500mm
Inner diameter: 450-550mm

Roll forming machine metal roofing Main Roll Forming System:
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: about 6500х1450х1500
Weight of main part: 3.8 tons
Voltage: 380v 50hz 3 phase
Roller fixer: middle plate
Frame: 350 H steel welded
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ80mm
Number of rollers: 13 rollers
Main power: 5.5kw

Roll forming machine metal roofing  Shearing Mechanism:
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine.

Roll forming machine metal roofing  Hydraulic Station:
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Power: 3kw
Hydraulic oil: 46#
Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, four hydraulic pipes.and two sets of electromagnetism valves.

Roll forming machine metal roofing  Electric Control System:

Language: English and Chinese

Automatic length measurement

Automatic quantity measurement

Length Tolerance: 3m±1.5mm

Length inaccuracy can be amended easily.

Unit of length: millimeter (switched on the control panel)

Computer operating panel: touching screen and buttons.

Roll forming machine metal roofing  Our Service:

1. One year warranty, whole life technical support.

2. Installation & adjustment : We can take a video for the customer and the customer can also come to our factory, we can train customer how to install and adjust the machine.

3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day salary.
Roll forming machine metal roofing   Company Information:
Cangzhou zhongtuo cold roll forming manufactury co., ltd is a professional manufacturer located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
