Colored Steel Metal Coils Embossing Machine

colored steel metal coils embossing machine

colored steel metal coils embossing machine are mainly for producing embossed aluminum and steel roll. metal embossing machine is suitable for metal sheet, particle board, decorated materials, and so on. The pattern is clear and has strong third-dimension. It can be assorted with the embossing production line

The main parts of this producing line:

Uncoiler, embossed host, recoiler, electrical control station

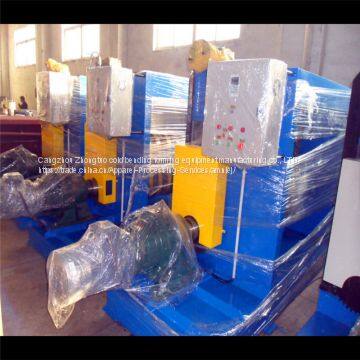

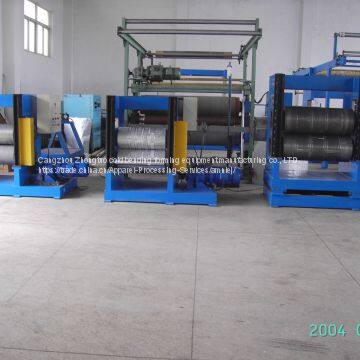

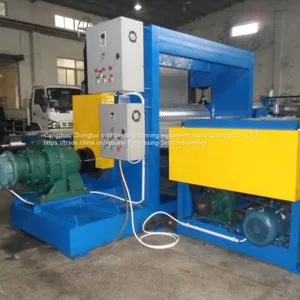

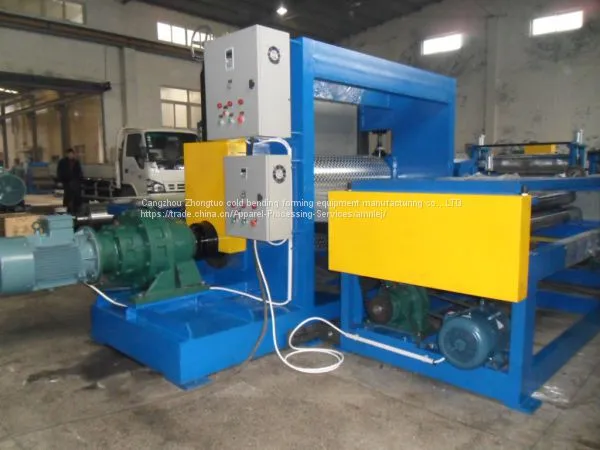

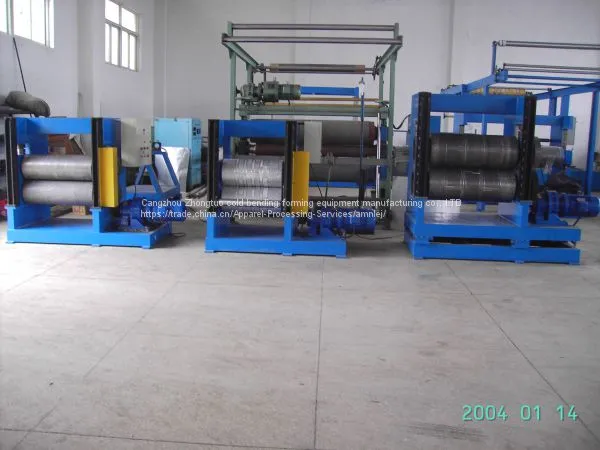

Here is our pic for your reference:

Standard parameters of this line

 Detailed parameters of this colored steel metal coils embossing machine

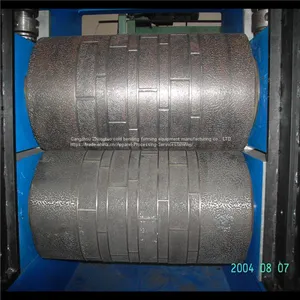

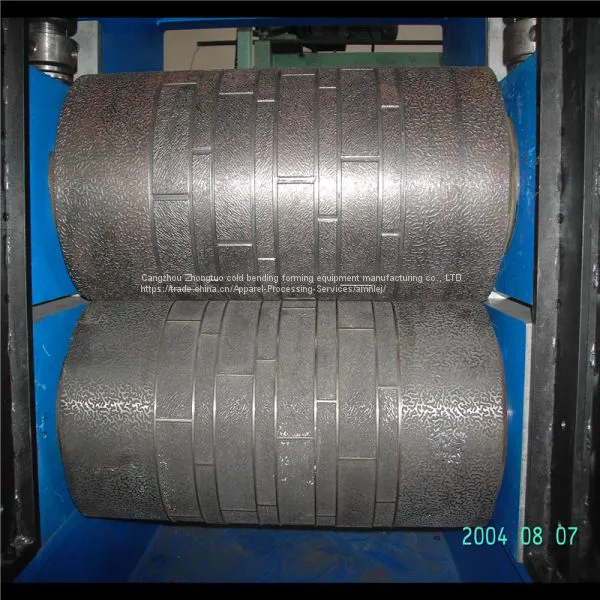

1. Roller specifications: DIA450~500mm, width: 1000~1800mm.

2. Take the roll surface hard chromium plating

3. Suitable for pressing plate: 2-6 mm

4. Frame steel plate welded structure, polished, tempering, machining, solid wall       plate Q235 90 mm thick

5. Pattern processed by laser engraving.

6. The pattern making: according to the buyer to provide the sample pattern

7. Pressure mode: hydraulic 50~100T.

8. Working speed: 1~20m/min, speed changed by frequency converter .

9. Voltage 380V/50Hz/3PH

10. Safety shield shell

11. Generous beauty of appearance

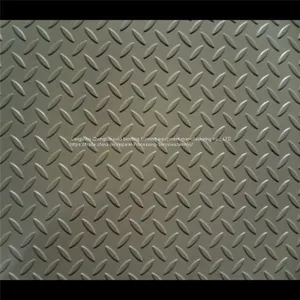

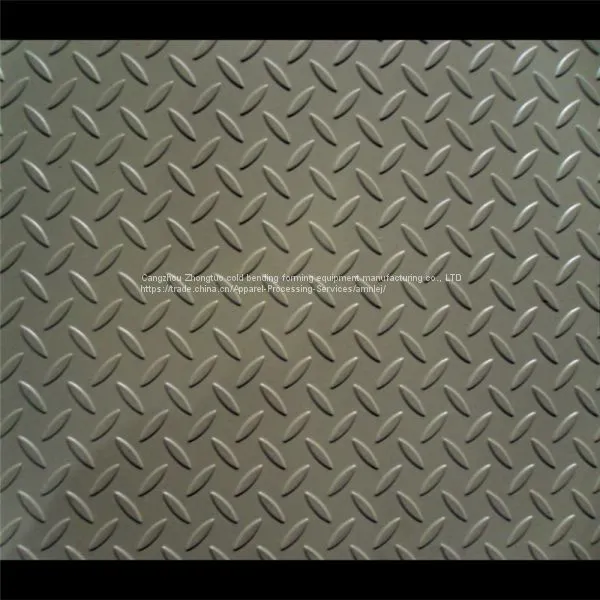

Here are some pics of embossing pattern for your reference:
