Hot sale c z purlin forming machine

Hot sale c z purlin forming machine

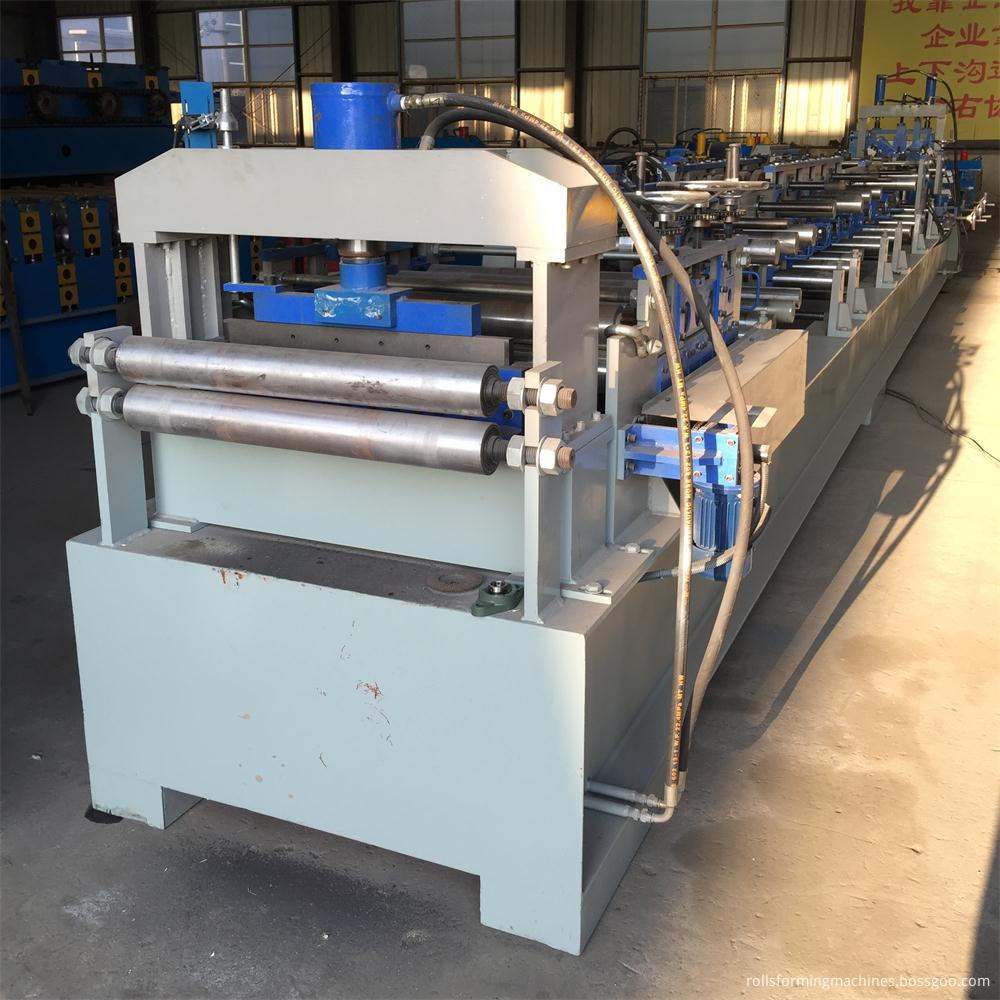

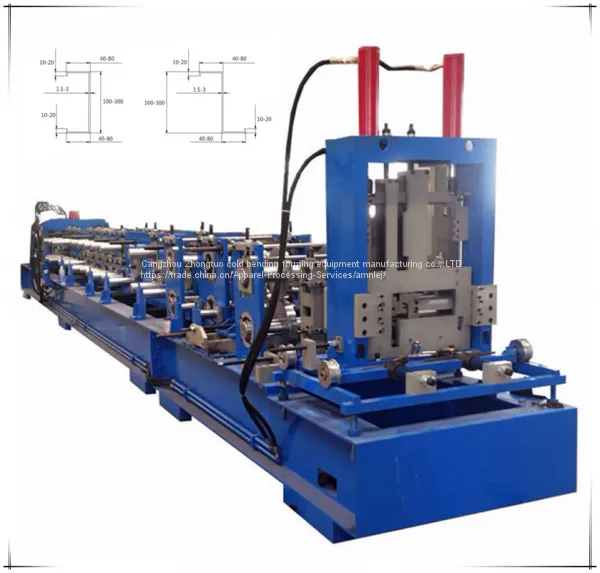

Hot sale purlin forming machine there are three types of machine, c purlin machine, z purlin roll forming machine, C Z Section Steel Purlin Machine. The Web width can be 60-300mm Flange height can be 30-80, it is adjustable from min to max. The size of holes can be design by customers. This C Z Quickly Interchange Roll Forming Machine consists of uncoiler,feeding and straightening,punching and cutting part, main roll forming part,cutting device and runout table.

Hot sale c z purlin forming machine for c and z purlins
A).  Main Components:
1.  Decoiler -------------------------------------------- 1 Unit
2.  Feeding & Leveling -------------------------------- 1 Unit

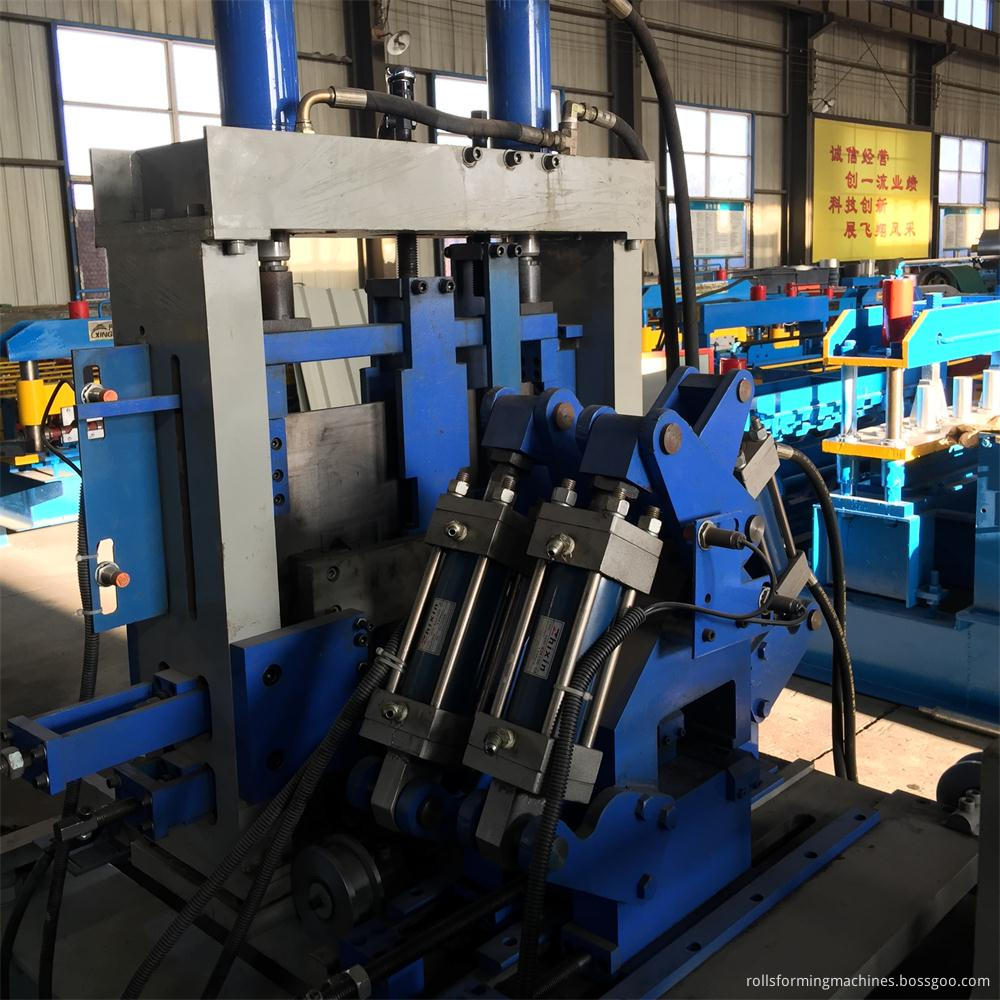

3.  Hydraulic punching device ------------------------ 1 Unit
4.  Hydraulic cutting device --------------------------- 1 Unit
5.  Main roll forming machine ------------------------- 1 Unit
6.  Hydraulic Station ----------------------------------- 1 Unit
7.  PLC computer control ------------------------------ 1 Unit
8.  Output table ---------------------------------------- 1 Unit

B). Main Specification:
1.  Material: G.i Coil or Carbon steel
2.  Material Thickness:1.0-3.0mm
3.  Landscape orientation adjustment range of Hole distance : 45-500mm
4.  Length of purlin: >3m
5.  Forming Stations: about 16 Main rollers
6.  Leveling Stations: 7
7.  Feeding Stations: 2
8.  Main Power: 15 kw
9.  Machine Diameter: about 12000mm(L)x2300mm(W)x1600mm(H)

10.  Weight of machine: about 12 Ton
11.  One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto pumch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
12.  C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, runout tables.
13.  This line main forming drive adopt reducer motor and frequency conversion control, speed control.
14.  It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to20m/min.

C). Applications:

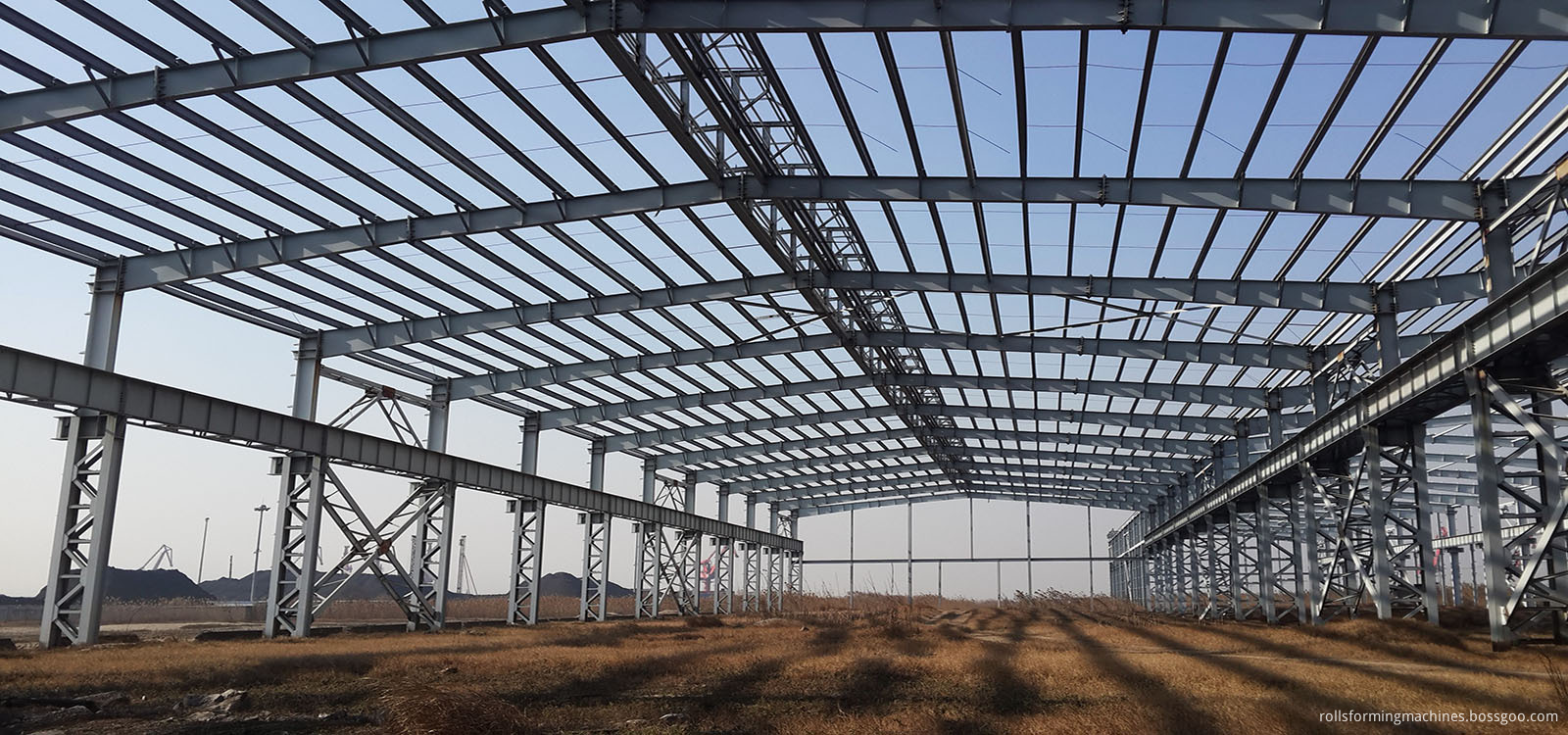

Steel cz purlins, c/z purlins, steel structuere cz purlin, metal cz purlins.

D). Competitive Advantage:
High Quality
Reasonable Price
Factory Visit
Good after Service
1 Year Warranty
More Than 10 Years Experience
E). Reference Pictures

Cangzhou Zhongtuo cold roll forming machinery as a manufacturer since 1996,we are specialized in manufacturing color steel forming machine, light keel machine, C&Z purline machine, Glazed tile forming machine, welded tube mill, stone coated roof production line, steel structural floor panel roll forming machine and so on. We also have the derivatives and raw material. We real provide you one station, non-stop service. Now our machine have been exported to 30 countries, such as Canada, South Korea, Russia, Holland, Sri Lanka, Malaysia, India, Brazil, etc. Our company insists on the service aim: Quality First, Credit First. We believe that we can make the future cooperation and achieve win-win.
