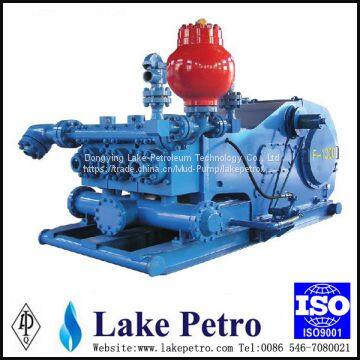

Help CenterFactory Price F1600 Drilling Mud Pump
Related Products

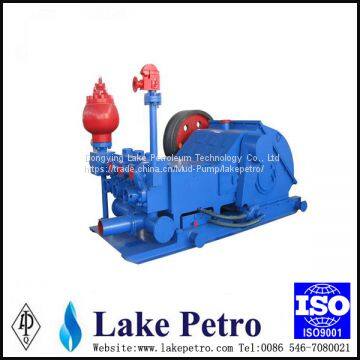

Lake Petro can provide you Factory Price F1600 Drilling Mud Pump.

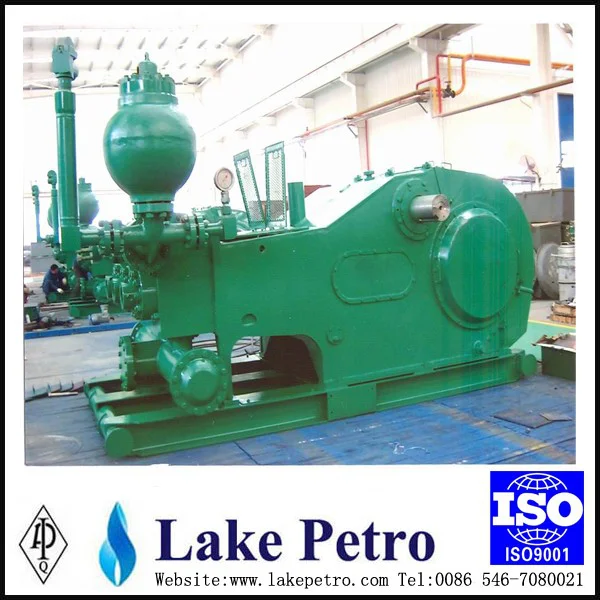

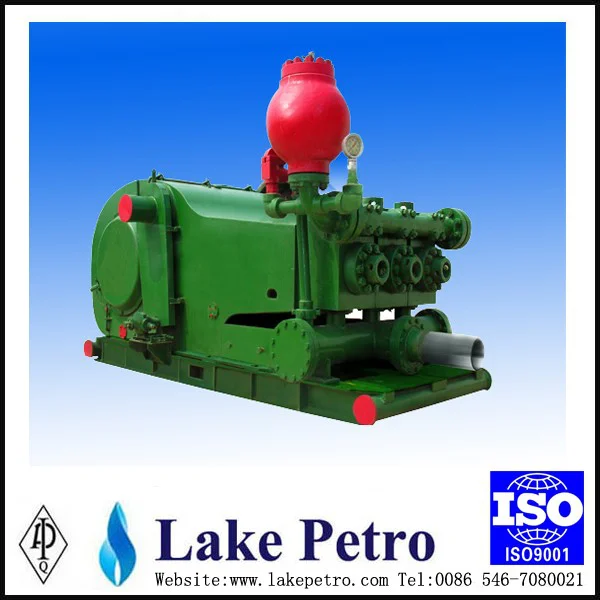

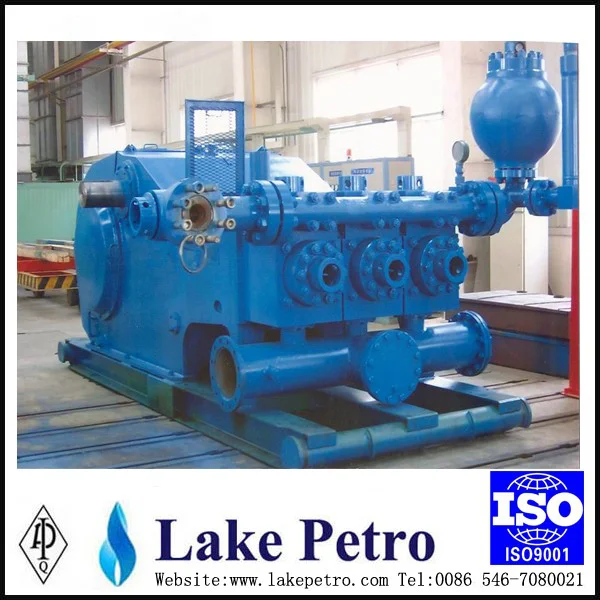

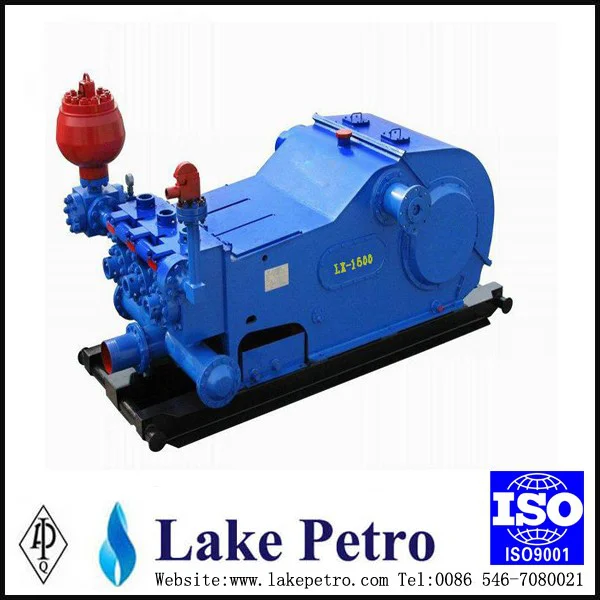

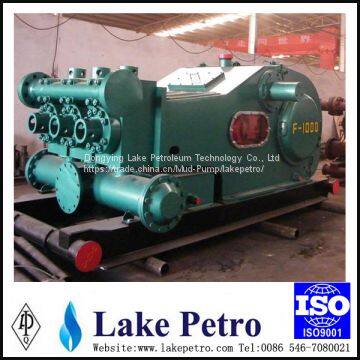

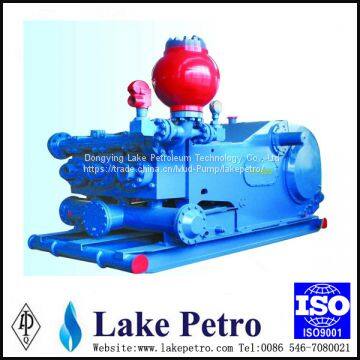

F series drilling mud pump has a longer stroke and can be operated at a lower stroke, thus improved the water supplying performance effectively and extended the lifetime of expendable parts in the fluid end greatly. The suction pulsation dampener of the drilling mud pump has an advanced structure which is reliable to use and can make the pump realize its best suction performance.
The power end of F series Drilling Mud Pump uses combined lubricating system of forced lubrication and splash lubrication. Reliable to lubricate and promote the service life of power end.
F series drilling mud pumps are widely used in the oilfields and other industrial mining enterprises for well drilling and well repairing etc.
F series drilling mud pump are strictly manufactured according to API Spec 7k “the Equipment Specification of Well Drilling and Repairing”, and are tested accordingly when leave factory.
Model |
F-500 |
F-800 |
F-1000 |
F-1300 |
F-1600 |
Type |
Triplex single acting |
Triplex single acting |
Triplex single acting |
Triplex single acting |
Triplex single acting |
Rated Power |
373kw/500HP |
596kw/800HP |
735kw/1000HP |
969kw/1300HP |
1193kw/1600HP |
Rated Speed |
165SPM |
150SPM |
140SPM |
120SPM |
120SPM |
Stroke(mm/inch) |
190/7 1/2" |
228.6/9" |
254/10" |
305/12" |
305/12" |
Max.Liner Dia. |
170/6 3/4" |
170/6 3/4" |
170/6 3/4" |
180/7" |
180/7" |
Gear Type |
Herringbone |
Herringbone |
Herringbone |
Herringbone |
Herringbone |
Valve Pot |
API-5# |
API-6# |
API-6# |
API-7# |
API-7# |
Gear Ratio |
4.286:1 |
4.185:1 |
4.207:1 |
4.206:1 |
4.206:1 |
Suction Inlet |
203/8" |
254/10" |
305/12" |
305/12" |
305/12" |
Discharge Inlet |
4"Flange 5000 psi |
5"Flange 5000 psi |
5"Flange 5000 psi |
5"Flange 5000 psi |
5"Flange 5000 psi |
Lubrication |
Forced & Splash |
Forced & Splash |
Forced & Splash |
Forced & Splash |
Forced & Splash |
|
Max. Pressure
|
27.2Mpa |
34.5Mpa |
34.5Mpa |
34.5Mpa |
34.5Mpa |
3945 psi |
5000 psi |
5000 psi |
5000 psi |
5080 psi |
|
Overall Size(in) |
144*106*86 |
156*79*66 |
163*89*70 |
174*121*78 |
181*129*106 |
Weight(kg) |
9770 |
14500 |
18790 |
24572 |
24791 |
Note:
1.Ratings are based on 100% volumetric efficiency and 90% mechanical efficiency.
2. Recommended strokes and input powers are under continuous operations.
