6V,12V,24V,36V,48V,60V,72V,84V,96v 120V,150V 200a dc Electric Reversing Contactor

Dezhou Greatway Import And Export Co., Ltd.

6V,12V,24V,36V,48V,60V,72V,84V,96v 120V,150V 200a dc Electric Reversing Contactor thumbnail-2

6V,12V,24V,36V,48V,60V,72V,84V,96v 120V,150V 200a dc Electric Reversing Contactor photo-1

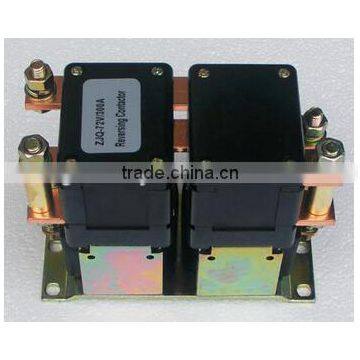

6V,12V,24V,36V,48V,60V,72V,84V,96v 120V,150V 200a dc Electric Reversing Contactor photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Model Number:

ZJWT200A

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name GW

Model Number ZJWT200A

Electricity Type DC

Number of Pole 2

Phase 1

Main Circuit Rating Voltage Other, 6v 12v 24v 36v 48v 60v 72v 84v 120v 150v

Main Circuit Rating Current 200a

USES:

This product have a switching phase contacts, for electric vehicles, telecommunication equipment, engineering machinery, car batteries, electric forklift trucks, trains, ships, electronic control systems such as uninterruptible power supply.

TECHNICAL PARAMETERS:

Product Type	ZJWT200A
Rated voltage	6V,12V,24V,36V,48V,60V,72V,84V,120V,150V
Contact circuit rated load current (A)	200A
Typical voltage drop across contacts per 100A	no more than 80mV
the cooling pull-in voltage at (20±5)℃ (V)	no more than 70%
the cooling drop-out voltage at (20±5)℃(V)	no more than 30%,no less tahn 5%
the allowed range of coil voltage	±20%
Drop-out time(n/o contacts to open)	8ms
Pull-in time (n/o contacts to close)	30ms
Disconnect the maximum contact bounce time	3ms
Insulation resistance	20MΩ
Electric strength to resist	50Hz/60Hz 1000VAC 1minute
Typical fault currents which can be ruptured	1000A/5ms at 48V/DC
Coil power (W)	12-18
Electric life	20000 times
Mechanical life	1 million times
Work specification	Continuous or Intermittent
Contact form	Convert the two groups (2 SPDT)
Contact material	AgCdO(12)
Auxiliary contact rated load (choose)	2A/48VDC, 5A/24VDC
Testing organization certification	CE,FCC

Note:As regarding to the different using environments of customers which requires different focus of the functions,and in order to improve the comprehensive properties of our products,sayoon may adjust the coil parameters,temperature rise and so on.
