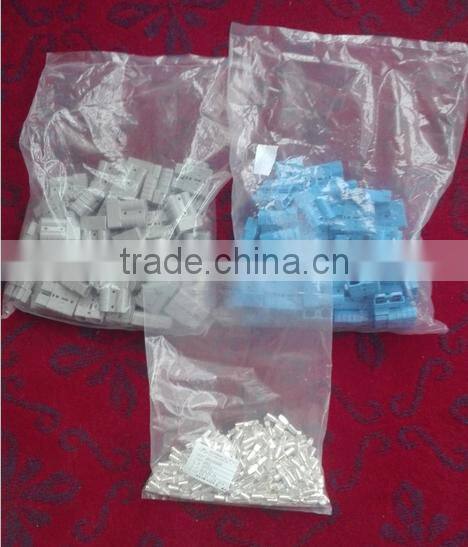

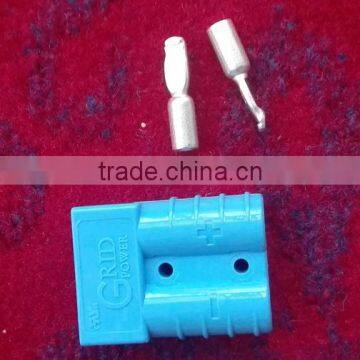

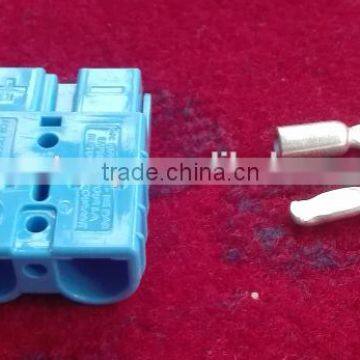

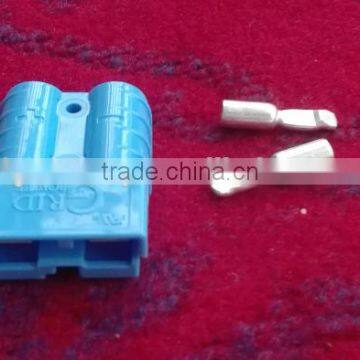

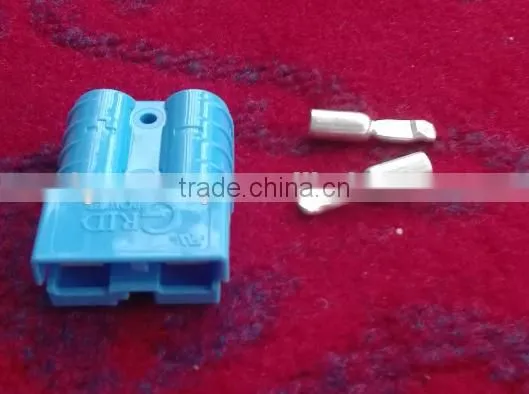

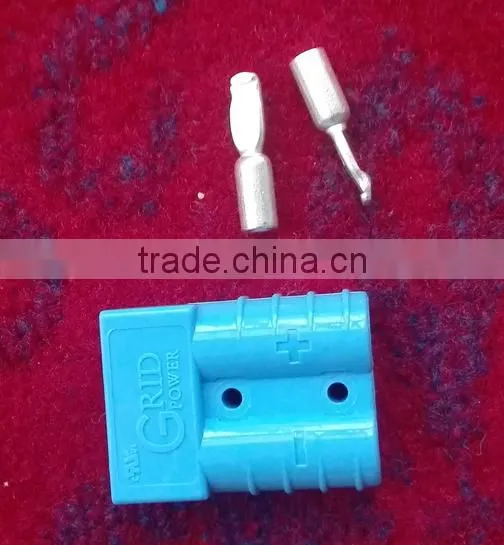

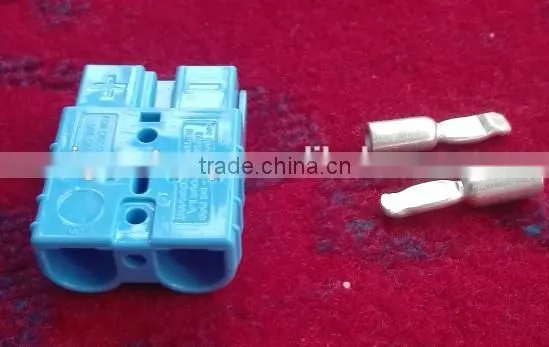

120a 600v multipole power connector

Plane-contact technology, strong current minimum contact resistance
Wiping action generated in the disconnection process can clean the surface of the contact member
Male and female housing, simplifying assembly requirements, which will help reduce inventory

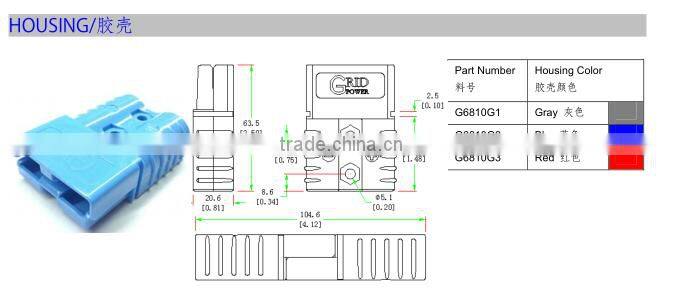

Color shell, according to the color determine industry standards recommend the use of voltage
Foolproof design, different colors, different interfaces, to avoid two different voltage coded color plastic shell with plug to eliminate the possibility of power socket misinsertion
Superior anti-corrosion of hydrocarbons and solvents

Product Name: MPC50 50AMP (/MPC 75/MPC 175/MPC350 is available)
Product description:
Rated current: 120AMP
Rated voltage: 600V

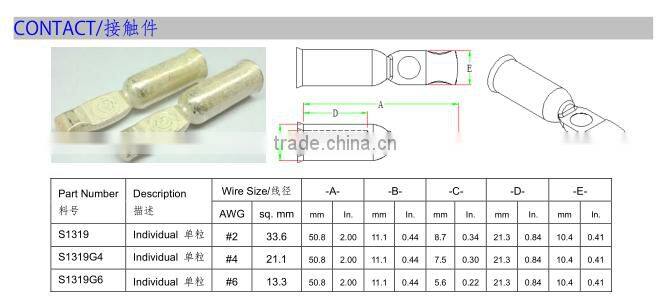

Applicable wire: 6AWG - 16AWG
Contact resistance: 200 micro-ohms
Mating cycles (no load): 10,000
120V 60A current hot-swappable: 250 times
Operating Temperature: -20 ° to 105 °
Fire rating: UL94 V-0
Environmental standards: RoHS
