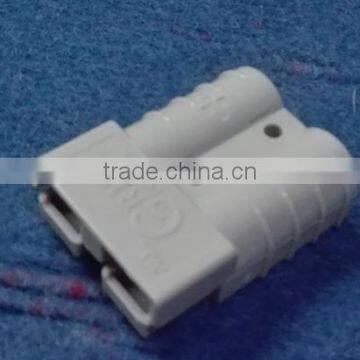

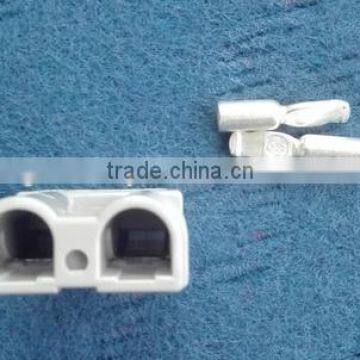

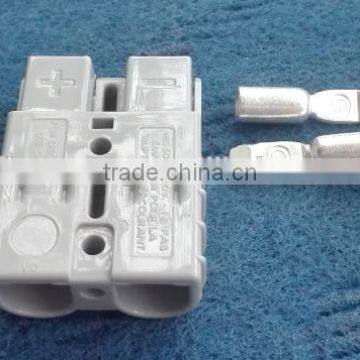

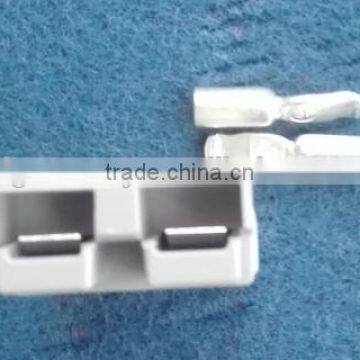

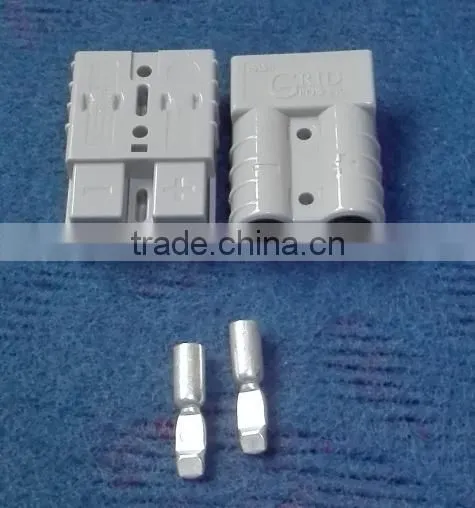

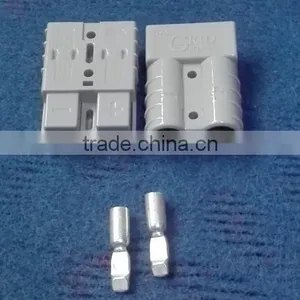

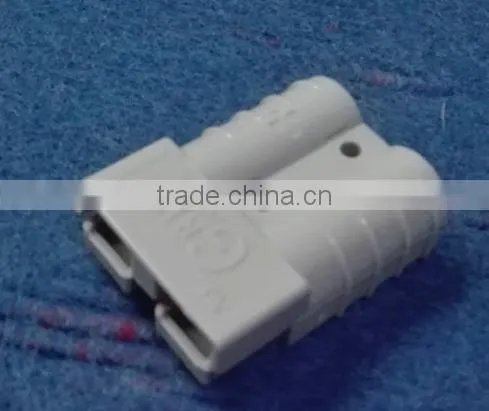

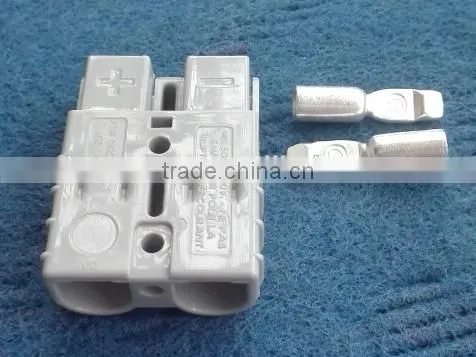

50a 600v 2 pin dc battery electric power connector
- 50000 Piece / Pieces per Month
- china port
- Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | GW | Model Number: | MPC50A |
Type: | Adapter | Application: | Power | Gender: | Female |
Product Description
Plane-contact technology, strong current minimum contact resistance
Wiping action generated in the disconnection process can clean the surface of the contact member
Male and female housing, simplifying assembly requirements, which will help reduce inventory
Color shell, according to the color determine industry standards recommend the use of voltage
Foolproof design, different colors, different interfaces, to avoid two different voltage coded color plastic shell with plug to eliminate the possibility of power socket misinsertion
Superior anti-corrosion of hydrocarbons and solvents
Product Name: MPC50 50AMP (/MPC 75/MPC 175/MPC350 is available)
Product description:
Rated current: 50AMP
Rated voltage: 600V
Applicable wire: 6AWG - 16AWG
Contact resistance: 200 micro-ohms
Mating cycles (no load): 10,000
120V 60A current hot-swappable: 250 times
Operating Temperature: -20 ° to 105 °
Fire rating: UL94 V-0
Environmental standards: RoHS
our company specialized in the manufacture and export of electric system products , including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator ,air conditioning system,electric system solution .etc
