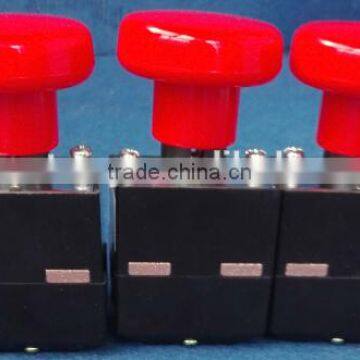

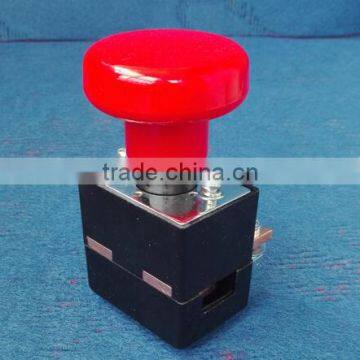

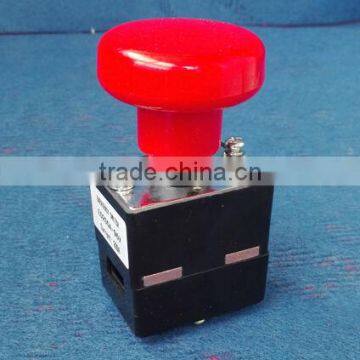

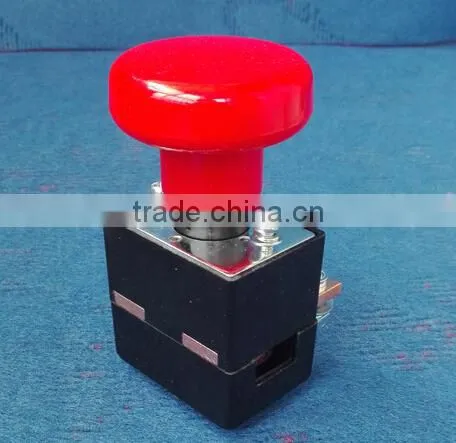

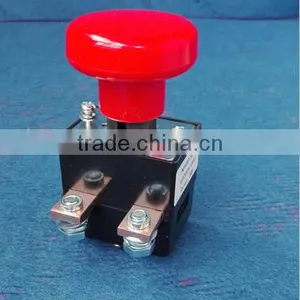

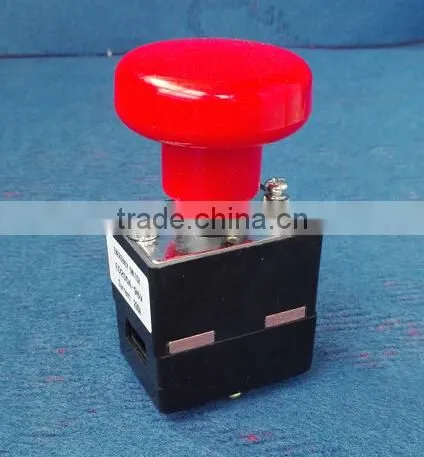

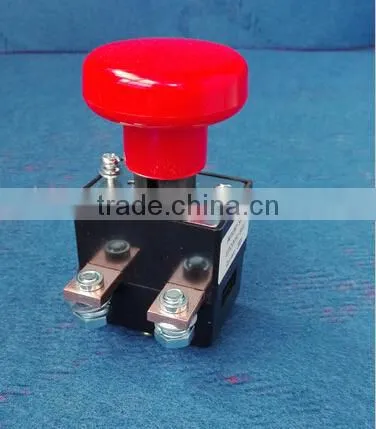

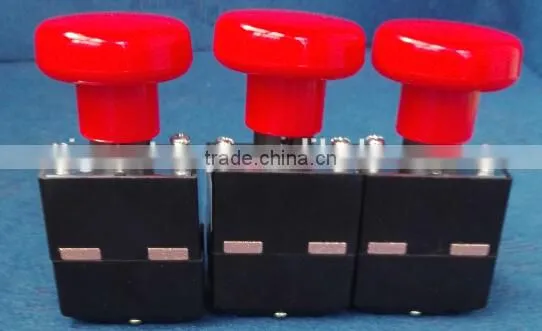

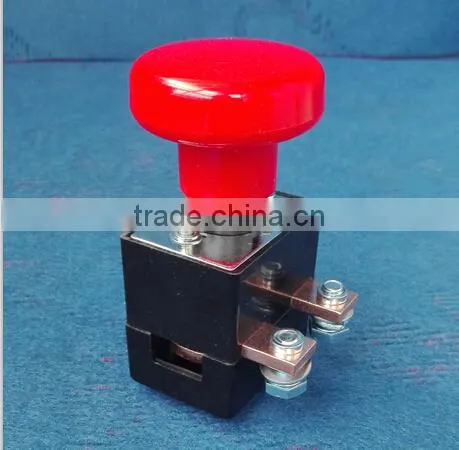

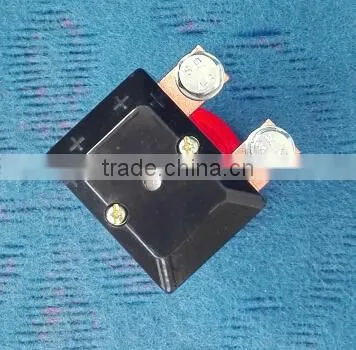

125a Emergency Switch/Emergency Stop Switch/Emergency Button Switch12V,24V,36V,48V,60V,72V,84V,96v,120V

Dezhou Greatway Import And Export Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Other, Emergency switch

Place of Origin:

Shandong, China

Brand Name:

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Type Other, Emergency switch

Place of Origin Shandong, China

Brand Name GW

Model Number CZK125A

Car Make Electric pallet trucks, forklift trucks, tourist vehicles, police patr

Warranty 1 Years

Product Description

mergency swithes are applicable for a variety of electric motor car and another electric device supporting,marked with safety and convenient.

Rated voltage: 12V,24V,36V,48V,60V,72V,84V,96,120V, etc.

Rated Current:125A

Mechanical life:10,000 times

Electric life: 1,000times

SES:

Emergency switches is applicable for various electric motor car and another supporting, they are very safe and convenient.

TECHNICAL PARAMETERS:

Product Type	ED125A
Rated voltage	12V,24V,36V,48V,60V,72V,84V,96,120V, etc.
Contact circuit rated load current (A)	125A
Typical voltage drop across contacts per 100A	no more than 40mV
Insulation Resistance	20MΩ
Electric strength to resist	50Hz/60Hz 1000VAC 1minute
Typical fault currents which can be ruptured	800A/5ms at 48V/DC
Electric Life	10 thousand times
Mechanical life	1 million times
Work specification	Continuous
Contact form	1 NO
Contact Material	AgCdO(12)
Auxiliary contact rated load (choose)	2A/48VDC, 5A/24VDC

USE of the ENVIRONMENT:

Ambient temperature	-25~+70℃
Relative humidity	+20℃ 98%
Vibration freq. atthe fixed position	3G, 1~50Hz amplitude 0.5mm
concussion	(60~100) time/minute,Acceleration≤4g
Altitude	2000m
Installation direction	Random
International protection	IP40 (According IEC60947)
