Description

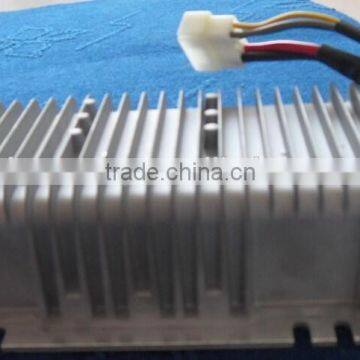

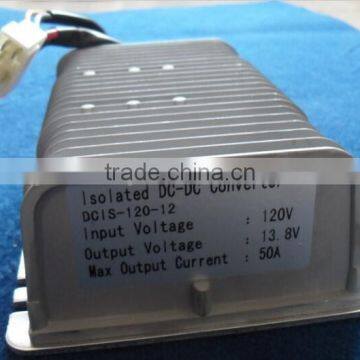

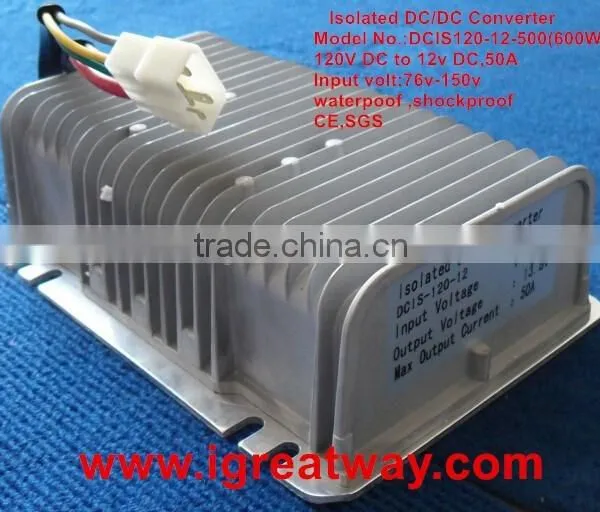

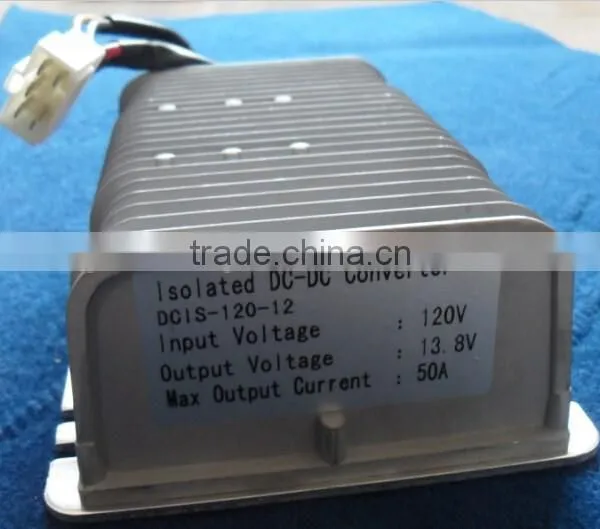

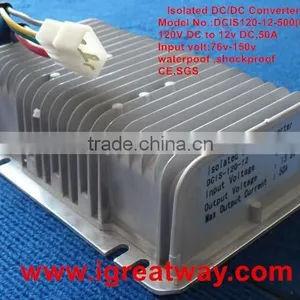

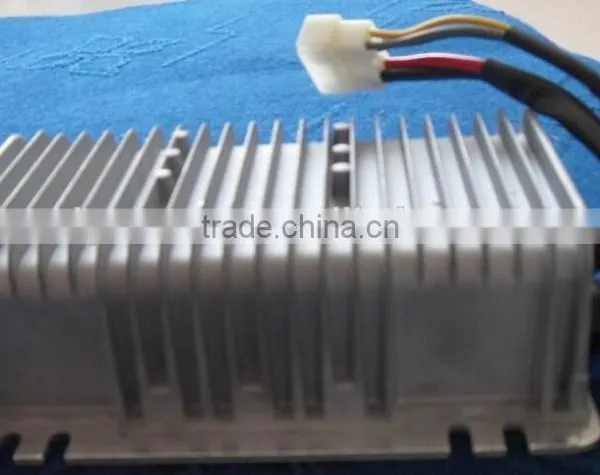

ipDCIS series isolated DC/DC converter applies advanced technology and is configured specifically for electric vehicles. It is very suitable to supply power to the lamp and audio system as it is very stable and clean. The advantages of high efficiency, stability and compact size, are achieved by adopting the advanced high frequency technology. It is sealed by silica glue to get water and vibration proof, which ensures the stability of the vehicle in atrocious condition.
It also can be used as a charger to charge the 12V battery in the electric automobile according to the customer’s requirement.
Current equalizer is built in, which makes converters work in parallel possible in order to enlarge the capability.
Specifications
Input Voltage: 48V 60V 72V 96V 120V 144V
Output Voltage: 13.8V @0A (Can be used to charge battery)
12.0V @30A(typical)
Max Output Current: 32A @11V(typical)
Maximum Efficiency: ≥90%
Environmental Enclosure: IP68
Shock and Vibration: SAEJ1378
Safety-North America: UL2202/UL1564 2nd Edition
Emissions- North America: FCC Part 15/ICES 003 Class A
Immunity-Europe: EN61000-4-2/3/5/6/11
Operating Temperature: -20°C-50°C(-22-122)
Protections
Water and Vibration Proofed: All sealed by silica glue to get water and vibration proof, which is suitable for all kinds of condition.
Input reverse polarity protection: Shut down, auto–reset.
Water Proofed Fuse: Input or output fuse, simple wiring.
No Arc: Input with no arc, can be controlled by key switch directly, without contactor
Short Circuit: Shut down with little plus current, auto–reset, ensure the wire safety.
Superheating Cutback: Reduce output current if the temperature is over 65°C, ensure the continuous power for your car.
Input Reverse Polarity: Electronic protection, auto–reset.
Input Low Protection: Shut down, auto–reset, prevent the battery from over discharging
Type Table
Type | Battery Voltage | Output Voltage | Output current | Input Volt Range |
ipDCIS-4812 | 48V | 12V | 30A/50A | 36V-75V |
ipDCIS-6012 | 60V | 12V | 30A/50A | 45V-90V |
ipDCIS-7212 | 72V | 12V | 30A/50A | 45V-90V |
ipDCIS-9612 | 96V | 12V | 30A/50A | 76V-120V |
ipDCIS-14412 | 144V | 12V | 30A/50A | 100V--180V |
ipDCIS-22012 | 220V | 12V | 30aA50A | 165V-286V |
