1000W/1200w 200v-500v to 48v,25A DC DC Converter

1000W/1200w 200v-500v to 48v,25A DC DC Converter thumbnail-1
1000W/1200w 200v-500v to 48v,25A DC DC Converter thumbnail-2
1000W/1200w 200v-500v to 48v,25A DC DC Converter thumbnail-3
1000W/1200w 200v-500v to 48v,25A DC DC Converter thumbnail-4
1000W/1200w 200v-500v to 48v,25A DC DC Converter thumbnail-5
1000W/1200w 200v-500v to 48v,25A DC DC Converter thumbnail-6
1000W/1200w 200v-500v to 48v,25A DC DC Converter photo-1

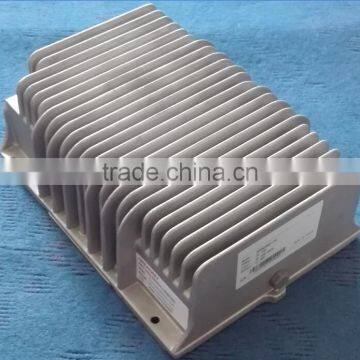

1000W/1200w 200v-500v to 48v,25A DC DC Converter photo-2

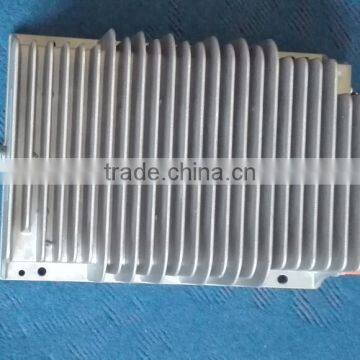

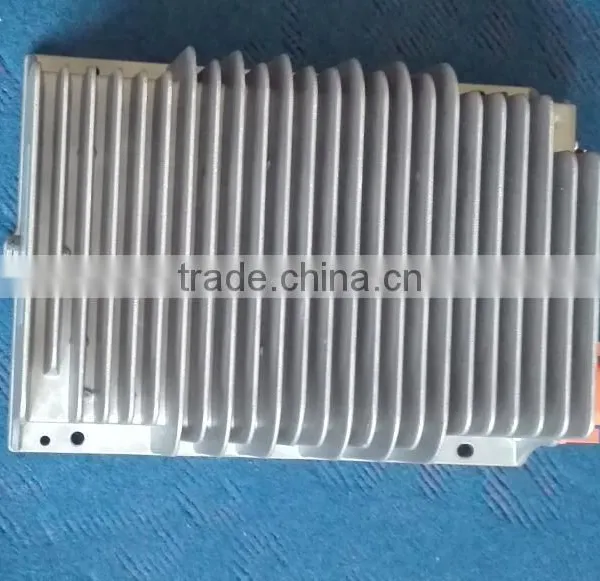

1000W/1200w 200v-500v to 48v,25A DC DC Converter photo-3

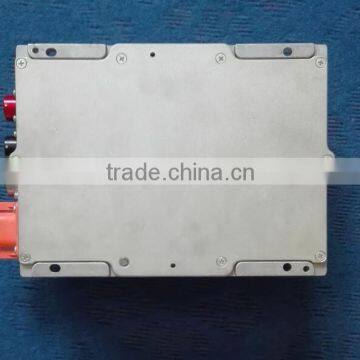

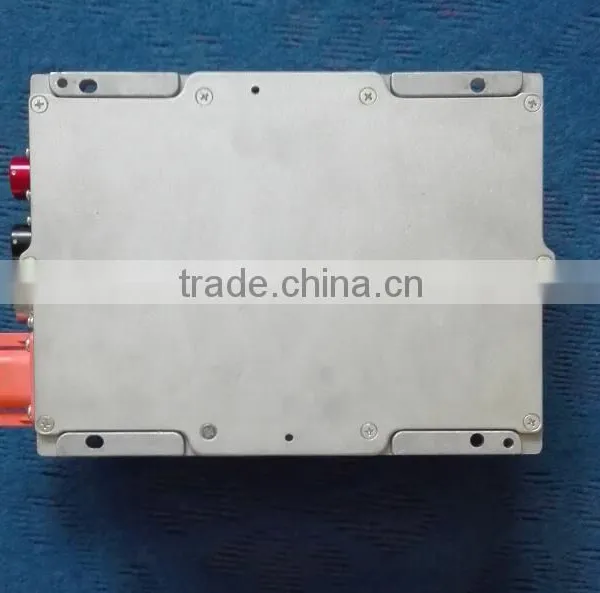

1000W/1200w 200v-500v to 48v,25A DC DC Converter photo-4

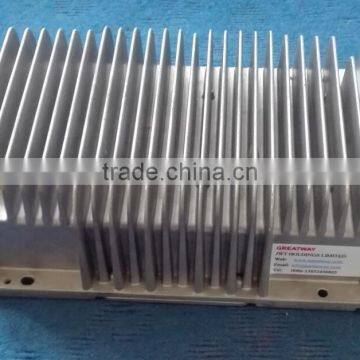

1000W/1200w 200v-500v to 48v,25A DC DC Converter photo-5

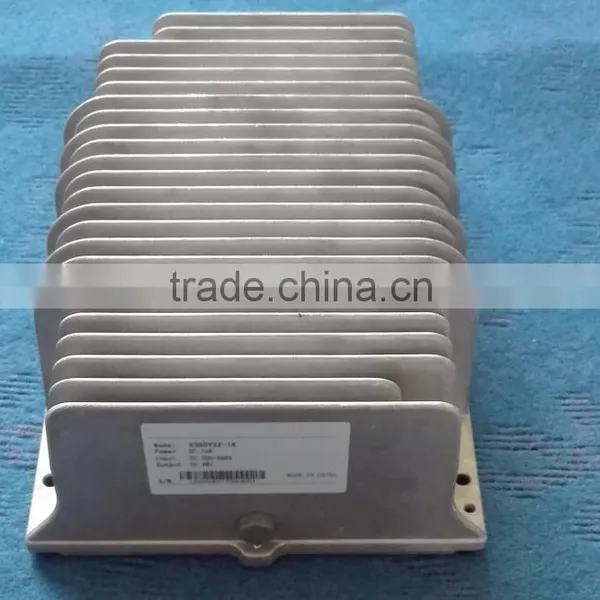

1000W/1200w 200v-500v to 48v,25A DC DC Converter photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
GW
Model Number:
S350Y2Z-1KW
Contact Supplier Request Quote Chat Now
Dezhou Greatway Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name GW
Model Number S350Y2Z-1KW
Output Power Other, 1000W-1500W
Output Type Single
Size 252*188*90mm
Weight 5.5kg
Input Voltage 200v-500v
Output Voltage 48v
Type DC/DC Converters
Output Current 25A

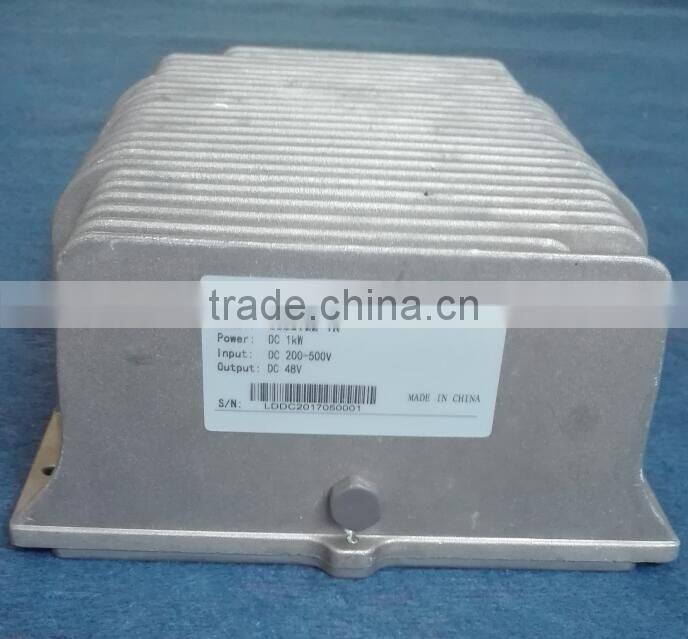

 1000W/1200w 200v-500v to 48v,25A DC DC converter1000W/1200w 200v-500v to 48v,25A DC DC converter1000W/1200w 200v-500v to 48v,25A DC DC converter





 The DC-DC converter  is optimized and designed for  electir car ,air conditioning of  electric car or battery , it uses natural cooling, can  work at high temperatures without derating. It have  ultra-small size (size: 252 * 188 * 90mm), over-temperature automatic derating, over-current, short circuit and other multiple protection, also have input and output status and other parameters of the monitoring and self-diagnostic function. input volt. range 200-500Vdc DC input, single  Circuit 48Vdc output. With input undervoltage alarm and protection, output overcurrent alarm and protection, output overvoltage protection, output short circuit protection, over temperature alarm and protection, output reverse polarity protection



Strengthen the production process design, strict selection of devices, to ensure product reliability and the mechanical s

 Small volume, light weight,  save space for the user greatly



 System environment to a wide temperature range -40 ℃ ~ + 65 ℃, intelligent temperature derating; overtemperature protection

 Soft switching control technology, the system for maximum efficiency ≥ 95%.



Program online upgrade function, Convenient customer online debugging program and real-time updates, online self-diagnostic function, easy system maintenance.







 Input characteristics



 Item

 Technical requirements

unit

Remarks

1.1

Rated input voltage

380

Vdc



Input voltage range

200—500

1.2

 Maximum input current

3

A

 Continuous Current

1.3

 Static state battery drain current

≤10

mA

Battery drain current shutdown state

1.4

 Input control voltage

7~35

Vdc



 Output characteristics

2.1

 Rated output voltage

48

Vdc



Rated input and output half load

2.2

 Output voltage setting

50±0.3

Vdc

2.3

Output Current Range

0-21

A



2.4

Maximum output current

25

A



2.5

 Output Power

1000/1200max

W

Peak power:1200w

2.6

Overall efficiency

≥96

%

 Rated input half load

2.7

 Temperature Coefficient

≤±0.02

%/℃



2.8

Output ripple and noise

≤500

mVp-p



Oscilloscope bandwidth would be 20MHz, the probe capacitance in parallel 10u + 104

2.9

 Starting time

≤2

S



Power input voltage to the output voltage established to 48Vdc

2.10

Voltage regulation accuracy

≤±1

%



2.11

 Static loss current

≤10

mA



2.12

control method

Hardwired / software control(CAN control)





3, Protective properties

3.1

 Input overvoltage protection

        510-515

Vdc



3.2

 Input Overvoltage recovery

        490-500

Vdc



3.3

Input under voltage protection

190-200

Vdc



3.4

 Input voltage recovery

200-210

Vdc



3.5

 Output overvoltage protection

58-62

Vdc

 Shutdown hiccups

3.6

 Output under voltage protection

≤30

Vdc

Shutdown protection, self-recovery

3.7

Overcurrent protection

 yes

/



3.8

Over-temperature protection

85℃

-

Shell radiator temperature; automatic recovery

3.9

Output short circuit protection

yes

/

Shutdown protection, when the fault is removed, it can be automatically restored

3.10

Output reverse polarity protection

 yes

/

Under in static conditions when the 24v battery reversed, module protection, self-recovery when the fault is removed

3.11



Fan failure protection

 yes

/

When a fan fault module automatically derating until the module overtemperature protection disables the output; also reported fan failure alarm.



Packaging & Shipping

 1000W/1200w 200v-500v to 48v,25A DC DC converter



Our Services

 1000W/1200w 200v-500v to 48v,25A DC DC converter1000W/1200w 200v-500v to 48v,25A DC DC converter

Company Information

 our   company specialized in the manufacture and export of electric system products ,  including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator,hour tachometer ,air conditioning system,electric system solution .etc
