15W Waterproof DC-DC Power Converter With USB Output 12v to 5v,3A

Dezhou Greatway Import And Export Co., Ltd.
15W Waterproof DC-DC Power Converter With USB Output 12v to 5v,3A thumbnail-1
15W Waterproof DC-DC Power Converter With USB Output 12v to 5v,3A thumbnail-2
15W Waterproof DC-DC Power Converter With USB Output 12v to 5v,3A thumbnail-3

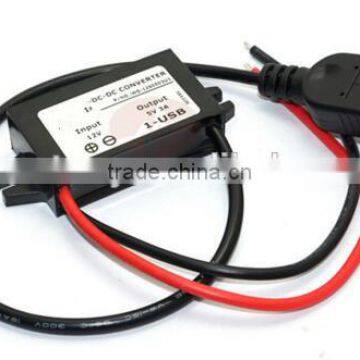

15W Waterproof DC-DC Power Converter With USB Output 12v to 5v,3A photo-1

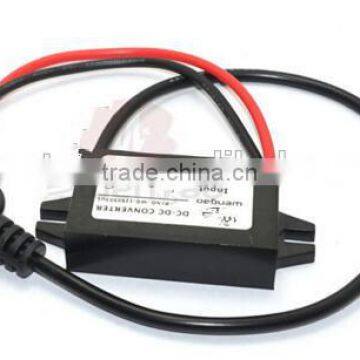

15W Waterproof DC-DC Power Converter With USB Output 12v to 5v,3A photo-2

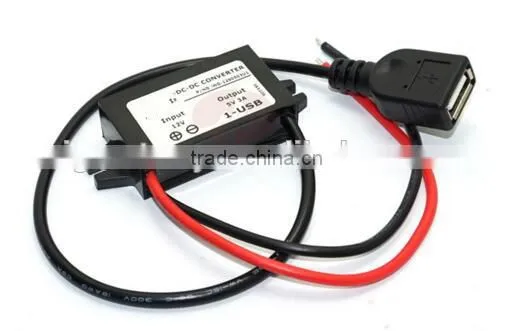

15W Waterproof DC-DC Power Converter With USB Output 12v to 5v,3A photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
GW
Model Number:
GW12S0503C1
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name GW
Model Number GW12S0503C1
Output Power Other, 12w
Output Type Other, single and dual
Size 46*22*18mm
Weight 65g
Input Voltage 6V-20V
Output Voltage 5v
Type DC/DC Converters
Output Current 3A

...In input terminal of The product input have anti-polarity protection, it can automatically identify the charging device mode, and through the corresponding USB charging protocol and equipment handshake, so that the maximum charge current, in the protection of charging equipment under the premise of saving the charging time. Product input end comes with reverse polarity protection, waterproof rating IP68, through CE, ROHS certification, efficiency up to 92%.



Compatible with all brands of mobile phones and Tablet PC charging (such as Apple, Huawei, Samsung, HTC, etc.); and widely used in vehicle traffic recorder, navigator, electronic dog 5V electronic equipment



Features:

1. 100% full power & stable current output

2. 100% Imported components

3. Wide input voltage from 6-20Vdc

4. Industry grade DC12V o DC5V step-down converter, high efficiency up to 95%

5. 100% waterproof & anti-shock protection, Ultra compact size, light weight

6. According: CE/RoHS, IP68 design

7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection

8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating

9. Non-Isolated Module,



Specifications:



Model

GW-12S0503C1

Input rated voltage

12V DC

Input voltage range

6-20V DC

Efficiency

>94%

Output voltage

5V DC

Output current

3 Amps

Output rated power

15Watts

Output peak power

110%

Voltage regulation

< 1%

Load regulation

< 2%

Ripple (Full load test)

< 40mV

No-load current

< 20mA

Working temperature

-30℃~ +80℃

Waterproof rating

IP68

Over-voltage protection

YES

Over-current protection

YES

Over-temperature protection

YES

Short-circuit protection

YES

Machine size

46*22*18mm

Package size

55*25*22mm

N. Weight

65g

G. Weight

75g

Heat dissipation method

Die-cast aluminum housing

Natural heat dissipation
