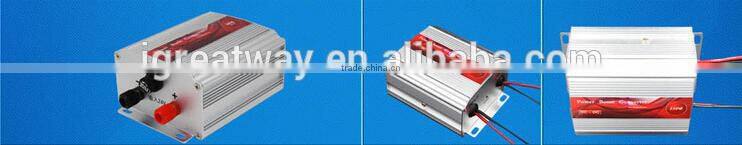

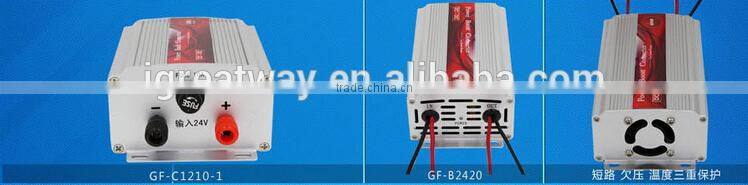

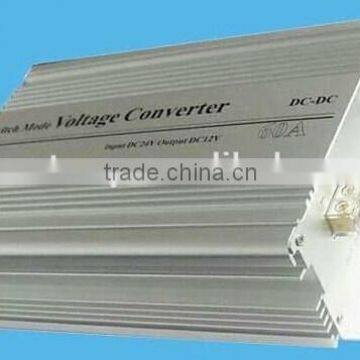

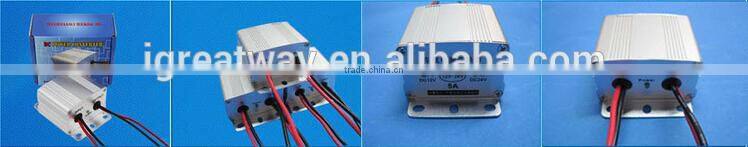

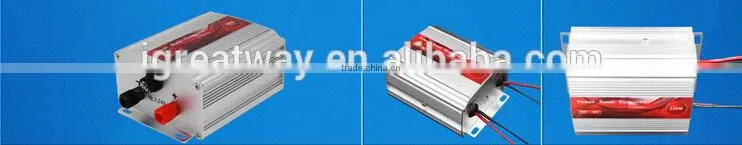

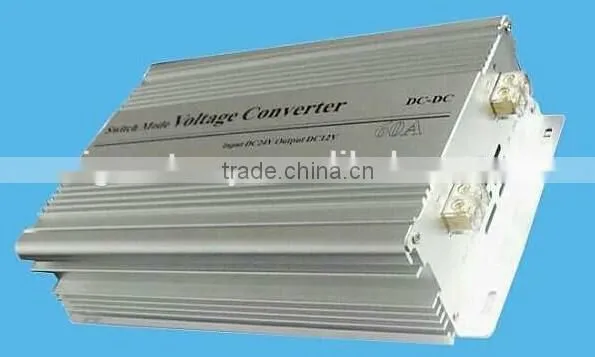

24v to 12v,60a Voltage Converter,800W

Dezhou Greatway Import And Export Co., Ltd.
24v to 12v,60a Voltage Converter,800W thumbnail-1
24v to 12v,60a Voltage Converter,800W photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
gw
Model Number:
B2412-60
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name gw
Model Number B2412-60
Output Power Other, 800w
Output Type Other, single
Size 140*87*52mm
Weight 0.7kg
Input Voltage 18V-32V
Output Voltage 12V
Type DC/DC Converters
Output Current 60a



Unisolated DC-DC Converter

No isolation DC-DC Converter

Converter

Converters

Isolated dc to dc converter

Isolation converter

Car converter

Electric vehicle converter





24v to 12v,60a voltage converter,800W

24v to 12v,60a voltage converter,800W







 24v to 12v,60a voltage converter,800W



 24v to 12v,60a voltage converter,800W

 24v to 12v,60a voltage converter,800W



Product Description Book



Product Name:  power converter



Model:  5A / 10A / 15A / 20A / 30A / 60A



Description:

The power converter is a pulse-width modulation (PWM) mode, non-isolated switching power supply with high efficiency, stable performance, protection function, weight, etc., are widely used in automotive, solar energy, industrial and other fields.



Performance parameters:

Input voltage:     DC18V-DC32V

Output voltage:    DC12.4V ± 4%

Output Current::   5A / 10A / 15A / 20A / 30A / 60A

Maximum power:: 80W / 150W / 220W / 280W / 420W / 9

Company Information

 24v to 12v,60a voltage converter,800W

00W

Quiescent Current:: (5A-15A, <45mA) / (20A-60A, <60mA)

Conversion efficiency:> 90%

Temperature protection:65 ℃ -75 ℃

Operating temperature: -20 ℃—+50 ℃



Indicator Description:  The green light (work), the red light (temperature / over current / over-voltage protection)
