3kW 300v~750V to 27.5v,110a DC-DC Converter With CAN 2.0

3kW 300v~750V to 27.5v,110a DC-DC Converter With CAN 2.0 thumbnail-1
3kW 300v~750V to 27.5v,110a DC-DC Converter With CAN 2.0 thumbnail-2
3kW 300v~750V to 27.5v,110a DC-DC Converter With CAN 2.0 thumbnail-3
3kW 300v~750V to 27.5v,110a DC-DC Converter With CAN 2.0 thumbnail-4

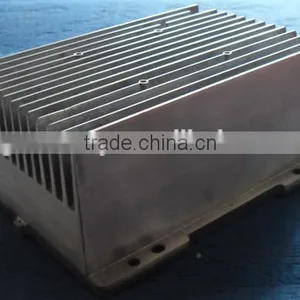

3kW 300v~750V to 27.5v,110a DC-DC Converter With CAN 2.0 thumbnail-5
3kW 300v~750V to 27.5v,110a DC-DC Converter With CAN 2.0 thumbnail-6
3kW 300v~750V to 27.5v,110a DC-DC Converter With CAN 2.0 photo-1

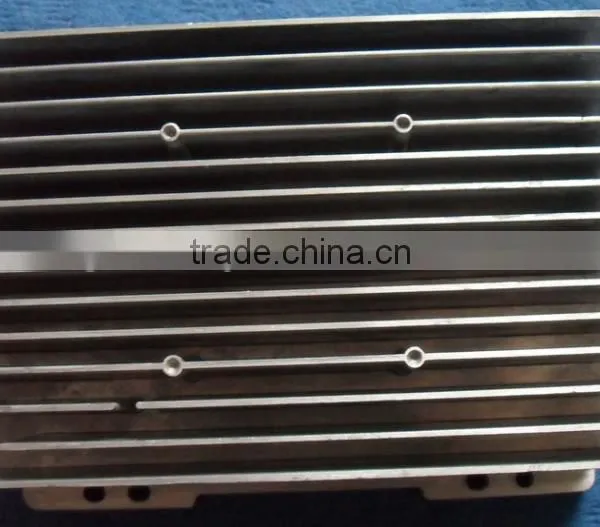

3kW 300v~750V to 27.5v,110a DC-DC Converter With CAN 2.0 photo-2

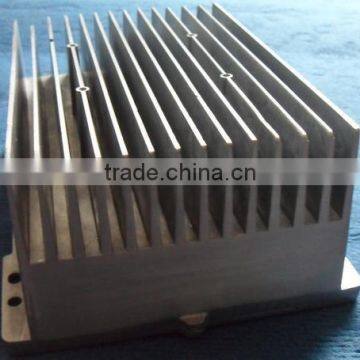

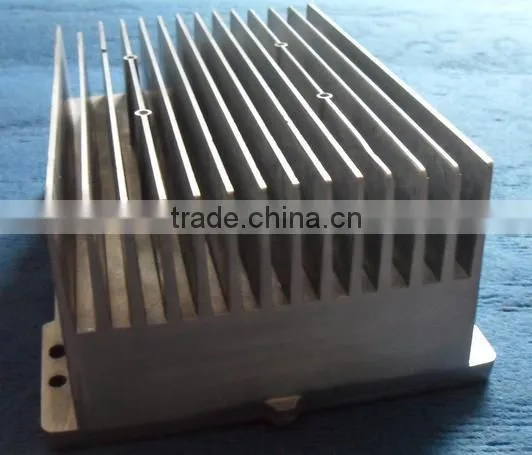

3kW 300v~750V to 27.5v,110a DC-DC Converter With CAN 2.0 photo-3

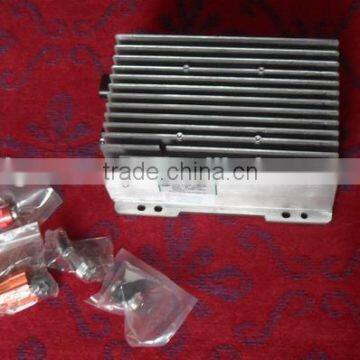

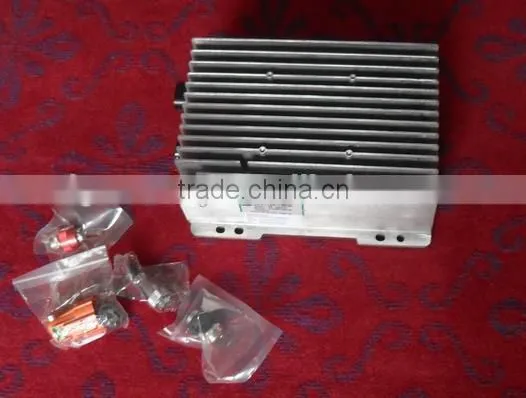

3kW 300v~750V to 27.5v,110a DC-DC Converter With CAN 2.0 photo-4

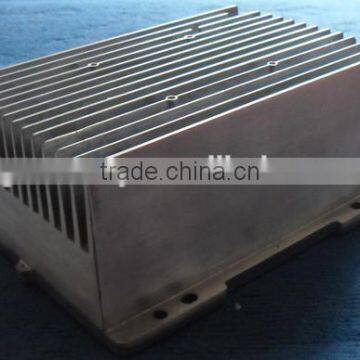

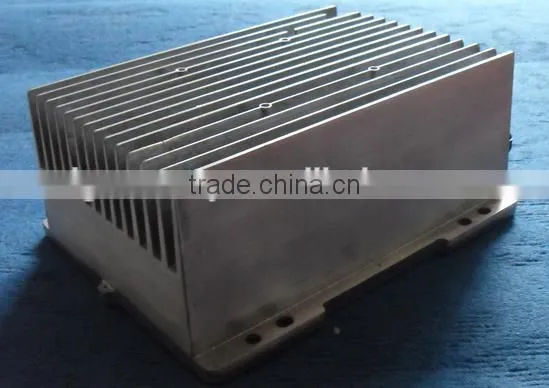

3kW 300v~750V to 27.5v,110a DC-DC Converter With CAN 2.0 photo-5

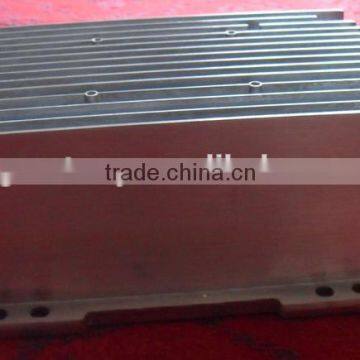

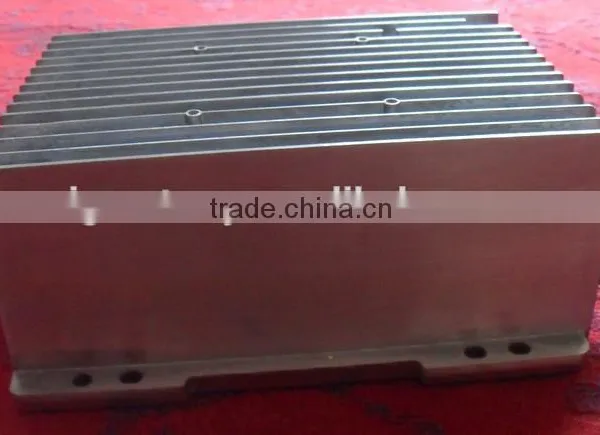

3kW 300v~750V to 27.5v,110a DC-DC Converter With CAN 2.0 photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
GW
Model Number:
PDC533-3kw
Contact Supplier Request Quote Chat Now
Dezhou Greatway Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name GW
Model Number PDC533-3kw
Output Power Other, 3KW
Output Type Single
Size 360*300*170mm
Weight 6.5kg
Input Voltage 300v-750v
Output Voltage 13.8v/27.5v
Type DC/DC Converters
Output Current 110A













 3kW 300v~750V to 27.5v,110a DC-DC converter with CAN 2.03kW 300v~750V to 27.5v,110a DC-DC converter with CAN 2.03kW 300v~750V to 27.5v,110a DC-DC converter with CAN 2.03kW 300v~750V to 27.5v,110a DC-DC converter with CAN 2.0















3kW 300v~750V to 27.5v,110a DC-DC converter with CAN 2.0

3kW 300v~750V to 27.5v,110a DC-DC converter with CAN 2.0





Natural heat dissipation design, IP65 protection design; dual MCU control, all solid capacitors, planar transformer design; core components using automotive-grade standards.





Product main features:
Strengthen the production process design, strict selection of devices, to ensure product reliability and the mechanical strength .

Small volume, light weight, save space for the user greatly

System environment to a wide temperature range -40 ℃ ~ + 65 ℃, intelligent temperature derating; overtemperature protection
 Soft switching control technology, the system for maximum efficiency ≥ 95%.

Program online upgrade function, Convenient customer online debugging program and real-time updates, online self-diagnostic function, easy system maintenance.





 Input characteristics

 NO.

 Item

Technical requirements

unit

 Remarks

1.1

 Rated input voltage

360~640

Vdc



 Input voltage range

300—750

1.2

 Maximum input current

9

A

 Continuous Current

1.3

Static state battery drain current

≤10

mA

 Battery drain current shutdown state

1.4

 Input control voltage

9~33

Vdc



2, Output characteristics

2.1

Rated output voltage

13.8

Vdc



Rated input and output half load

2.2

 Output voltage setting

27.5±0.2

Vdc

2.3

 Output Current Range

0-110

A



When the input voltage drops below 480V, the output current linear derating(110A/480V—60A/400V).

2.4

 Maximum output current

125

A



2.5

 Output Power

1500/1600max

W



2.6

 Overall efficiency

≥95

%

 Rated input half load

2.7

 Temperature Coefficient

≤±0.02

%/℃



2.8

Output ripple and noise

≤200

mVp-p



Oscilloscope bandwidth would be 20MHz, the probe capacitance in parallel 10u + 104

2.9

 Starting time

≤2

S

27.5Vdc

Power input voltage to the output voltage established to 27.5Vdc

2.10

Voltage regulation accuracy

≤±1

%



2.11

 Static loss current

≤10

mA



2.12

 control method

 Hardwired / software control



 Hardware high enable

3, Protective properties

3.1

 Input overvoltage protection

250-255

Vdc



3.2

 Input Overvoltage recovery

240-250

Vdc



3.3

 Input under voltage protection

100-120

Vdc



3.4

 Input voltage recovery

110-125

Vdc



3.5

Output overvoltage protection

15-16

Vdc

 Shutdown hiccups

3.6

 Output under voltage protection

≤6

Vdc

Shutdown protection, self-recovery

3.7

 Overcurrent protection

yes

/



3.8

Over-temperature protection

90℃

-

Environment temperature; automatic recovery

3.9



Output short circuit protection

 yes

/

Shutdown protection, when the fault is removed can be automatically restored

3.10

Output reverse polarity protection

 yes

/

Under static conditions when the 24v battery reversed, module protection, self-recovery when the fault is removed

3.11



Fan failure protection

yes

/

When a fan fault module automatically derating until the module overtemperature protection disables the output; also reported fan failure alarm.









 3kW 300v~750V to 27.5v,110a DC-DC converter with CAN 2.0
