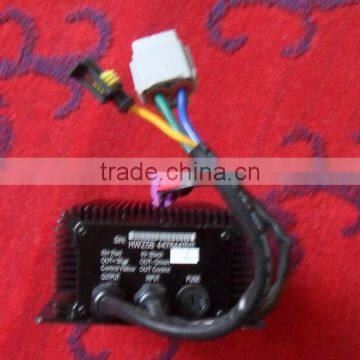

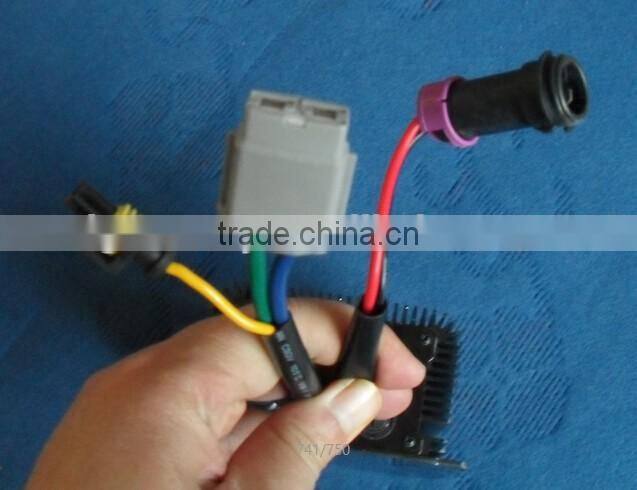

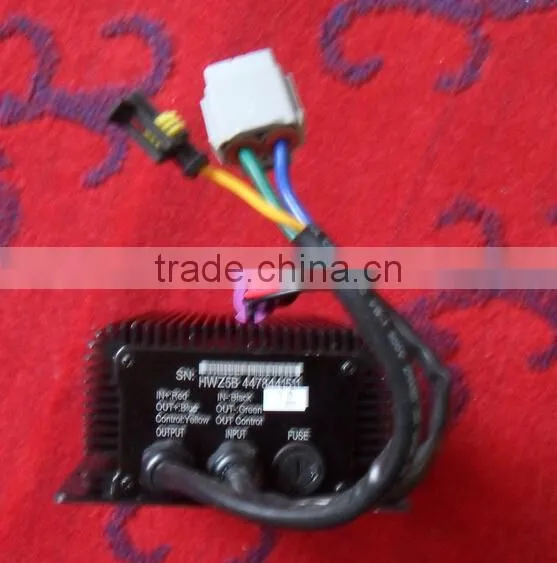

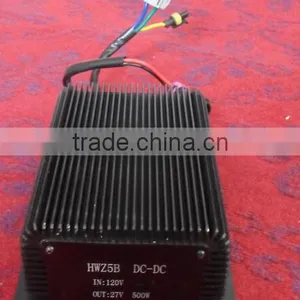

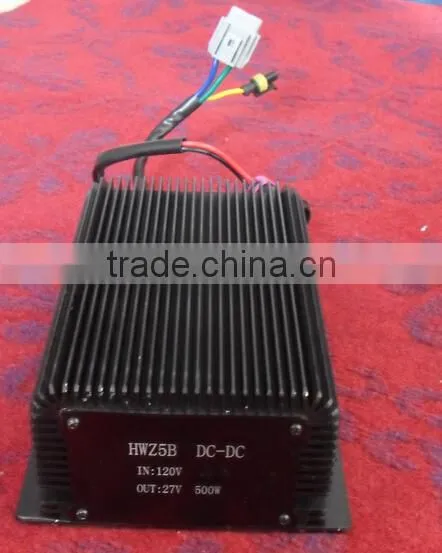

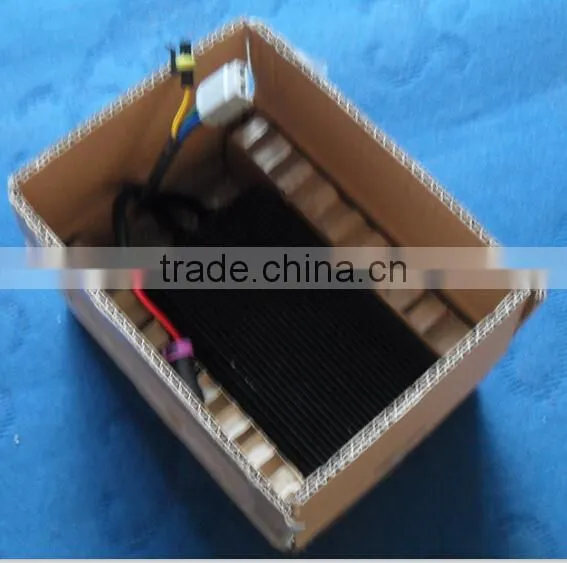

Help CenterNEW! 120V to 27v High Effciency Isolated Dc-dc Converter 500w for ev
Related Products
-
NEW!waterproof Isolated DC-DC on Board Converter 120v to 14v,600wNegotiableMOQ: 1 Piece -
3kW 300v~750V to 27.5v,110a DC-DC Converter With CAN 2.0NegotiableMOQ: 1 Piece
-
High Power 1500W Dc/dc Converter 120v-250v To13.8v,110aNegotiableMOQ: 1 Piece
-
48v/60v to 12v ,10a Dc-dc Buck Power ConverterNegotiableMOQ: 1 Piece
-
48v/60v to 24v ,10a Dc-dc Buck Power ConverterNegotiableMOQ: 1 Piece
High Efficiency Series Isolated DC/DC Converter applies advanced technology and is configured specifically for electric vehicles. Designed to provide a reduced voltage supply to power auxiliary electrical systems, it‘s isolated between in input and output. HWZ5 Series High Efficiency DC/DC Converter has achieved an unmatched level of efficiency and safety. Current equalizer is set in, which makes the converter work in parallel in order to enlarge the capability. It is sealed by silica to make the Convert waterproof and quakeproof, which ensure the stability of the vehicle in any condition.
Technical parameter
Power Nominal Rating: 500W
Input Voltage: DC48V60V72V96V144V(or customize)
Output Voltage: Z5— 12V 24V(or customize)
Z5S— 12V+13.8V /24V+27V(or customize)
Nominal Current Output: Z5— 50A/25A
Z5S— 50A+2.5A /25A+1.2A
Output Voltage ripple: ≤1%
Efficiency: ≥90%
Output short-circuit protection: Yes
Input reversal connect protection: Yes
Operating Temp: -30℃ — +60℃
Storagting Temp: -40℃ — +85℃
Size: Z5— 200mm*140mm*71mm
Z5S— 230mm*140mm*71mm
Weight: 3.5kg
Thermal protection: Thermal switch cuts at +85℃ and resets at +80℃
Electronic switch: Inside, control key switches
Shock and Vibration: SAEJ1378
