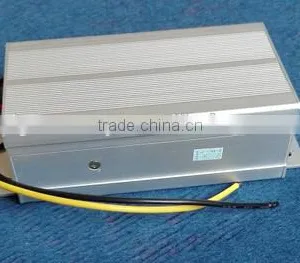

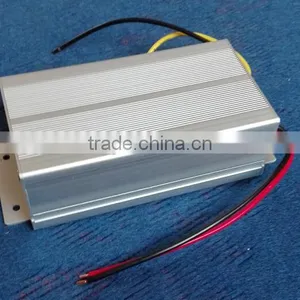

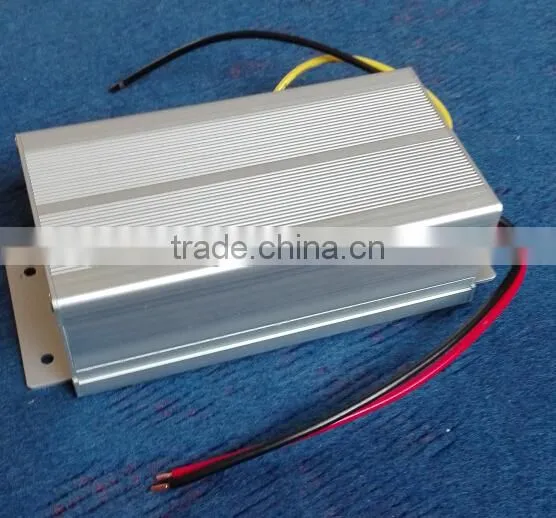

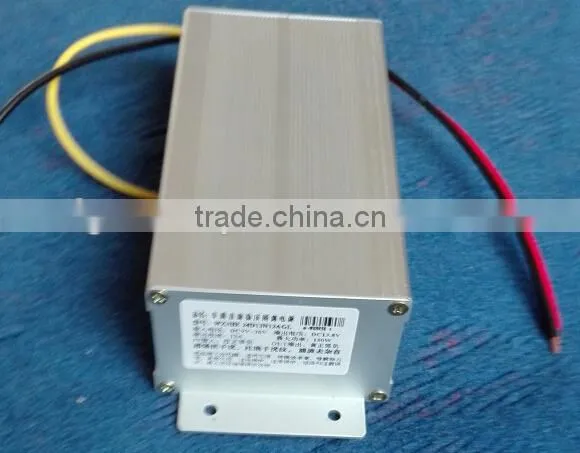

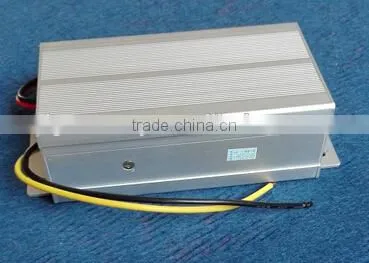

Help Center24v to 13.8v,12a Waterproof Isolated Dc-dc Converter Power Supply 150w
Related Products
-
600 Waterproof Isolated 108v to 12v,50A dc dc Voltage ConverterNegotiableMOQ: 1 Piece -
NEW! 120V to 27v High Effciency Isolated Dc-dc Converter 500w for evNegotiableMOQ: 1 Piece
-
NEW!waterproof Isolated DC-DC on Board Converter 120v to 14v,600wNegotiableMOQ: 1 Piece
-
3kW 300v~750V to 27.5v,110a DC-DC Converter With CAN 2.0NegotiableMOQ: 1 Piece
-
High Power 1500W Dc/dc Converter 120v-250v To13.8v,110aNegotiableMOQ: 1 Piece
Unisolated DC-DC Converter
No isolation DC-DC Converter
Converter
Converters
Isolated dc to dc converter
Isolation converter
Car converter
Electric vehicle converter

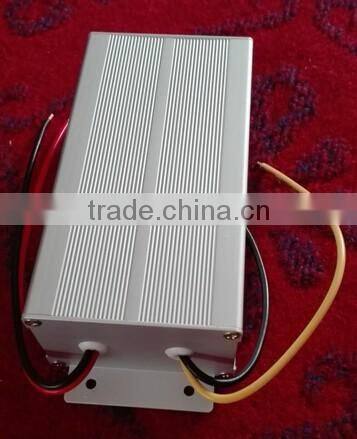

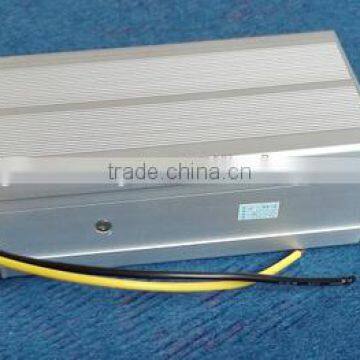

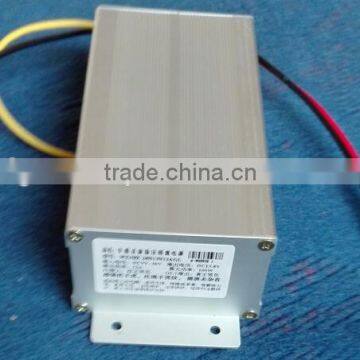

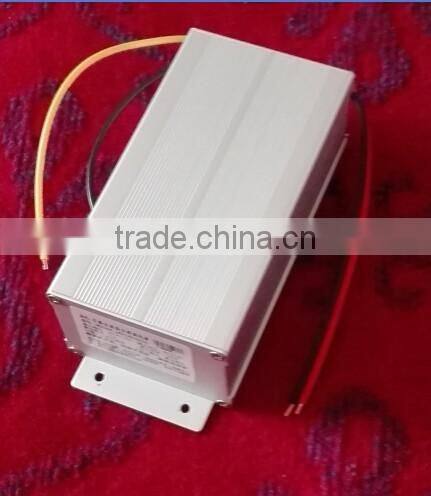

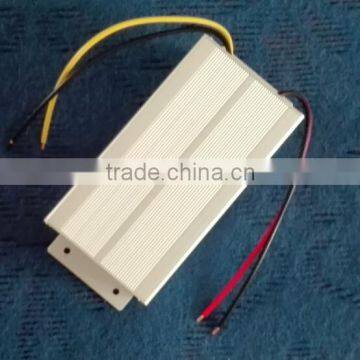

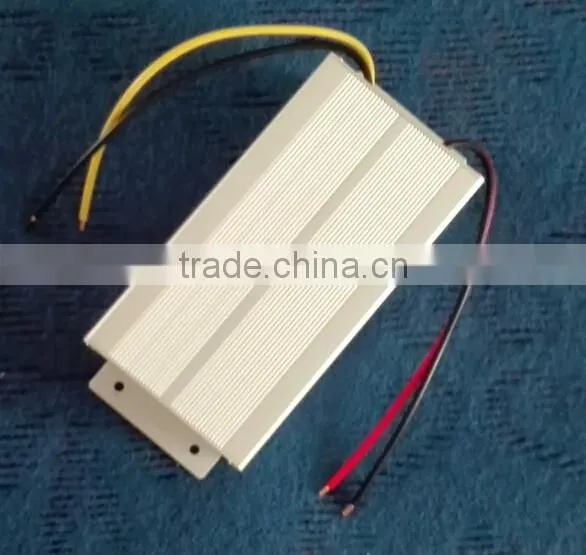

DC-DC isolated converter is specifically designed for car audio and video products to create, eliminate moire due to engine car LCD, motor vehicle noise such as pin 18, but also to eliminate common ground noise such as car CD, DVD, MP3, hard disk player, multimedia player, etc. Product Name: Isolated DC-DC converter
Product Description: This product uses 36U thick copper PCB board (standard 22U), a circuit uses high efficiency high-frequency switching power supply dedicated chip, MOS tube uses high-power low-resistance tube (current 75A, the internal resistance of 0.016 ohms), freewheeling diode uses high-speed high-current tube, the capacitance use high-frequency low-impedance electrolytic capacitor capacitance.
1. the technical parameters
Ø Input voltage: DC9V-36V
Ø Output voltage: DC13.8V
Ø Output Current (Max): 12A
Ø corresponding power: 150W
Ø output voltage ripple factor: <0.5%
Ø quiescent current: <20mA
Ø Conversion efficiency:> 85%
Ø Maximum operating temperature: 80 ° C
Ø Weight: 0.5KG
Ø Dimensions: 140 × 75 × 45mm

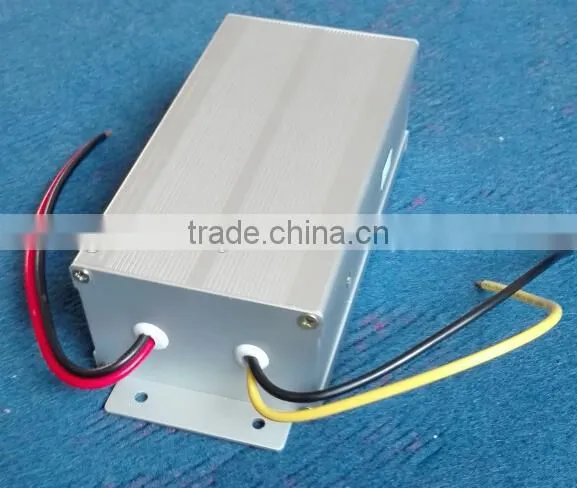

2. Wiring instructions

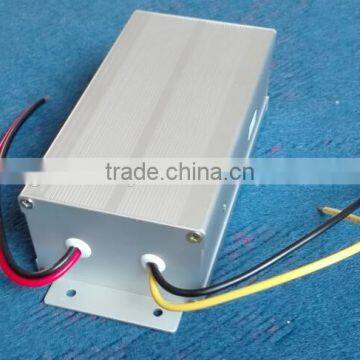

Input : Red wire :positive+ Black wire: negative-
Output: Yellow wire:positive+ Black wire: negative-
Function:
Ø protection: when circuit failure caused that the output voltage is too high, the system will stop the voltage output.
Ø overcurrent protection: when the external load is too large, causing the output current is greater than 10A, the system will automatically limit 10A output current , and guarantee the power work stability
ØOutput overvoltage protection, over-current protection, short circuit protection,Even if power output has short-circuit in long time,it is not damaged
ØThe product uses advanced circuit design, input and output are completely isolatedto effectively prevent interference with other equipment, but also to ensure that the interference of other devices of the product, even if the work to the maximum outputstate also to ensure low ripple interference, minimum guarantees on the equipment!
