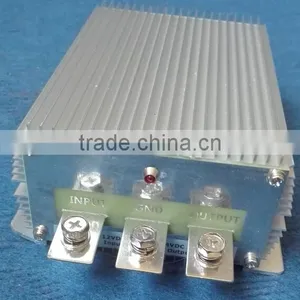

48v to 24v 50a 1200w waterproof buck dc-dc power converter
- 10000 Piece / Pieces per Month
- China port
- Credit Card PayPal
-
electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
-
45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
-
EM15-G3 General used Vector control Frequency inverter(3 phase )
-
EMHEATER soft starter
-
EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
-
Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
| Place of Origin: | Shandong, China | Brand Name: | GW | Model Number: | GW-48S24R50 |
| Output Power: | Other, 1200W | Output Type: | Single | Size: | 220*127*63mm |
| Weight: | 2.45KG | Input Voltage: | DC 36-60V | Output Voltage: | DC 24V |
| Type: | DC/DC Converters | Output Current: | 50A |
Product Description
Our products are widely used in automotive, posts and telecommunications, communications, electricity, coal, aerospace, defense, surveillance systems, railway signals, medical equipment, instruments and meters, LED displays, cable TV and other fields.
Features:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 36-60Vdc
4. Industry grade DC48V to DC24V step-down converter, high efficiency up to 96%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. According: CE/RoHS, IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating
9. Non-Isolated Module,
10. 1 year warranty, lifetime up to 100,000 hours.
Specifications:
Specifications:
Model | GW-48S24R50 |
Input rated voltage | 48V DC |
Input voltage range | 36-60V DC |
Efficiency | 97% (half load), 96% (full load) |
Output voltage | 24V DC |
Output current | 50 Amps |
Output rated power | 1200Watts |
Output peak power | 125% |
Voltage regulation | < 1% |
Load regulation | < 2% |
| Ripple (Full load test) | < 300mV |
| No-load current | 40mA |
Working temperature | -35°c ~ +80°c |
Waterproof rating | IP68 |
Over-voltage protection | YES |
Over-current protection | YES |
Over-temperature protection | YES |
Short-circuit protection | NO |
Machine size | 220*127*63mm |
Package size | 255*135*75mm |
N. Weight | 2.25kg |
G. Weight | 2.45kg |
Cooling way | Free air convection |
Other | Carton packaging |
our company specialized in the manufacture and export of electric system products , including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator ,air conditioning system,electric system solution .etc
