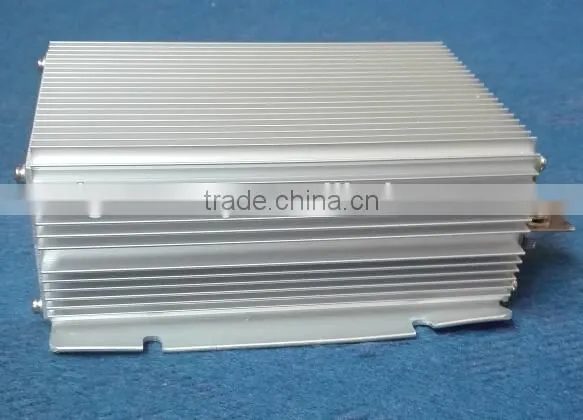

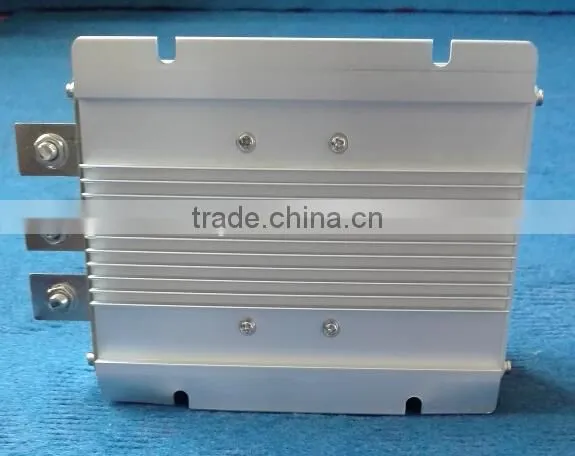

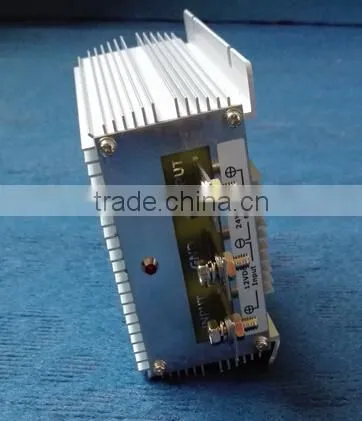

Help Center600W 36v to 12v 50a Waterproof Step Down Dc-dc Power Converter /power Supply
Related Products
-
48v to 13.8v 60a Waterproof Buck Dc-dc Power ConverterNegotiableMOQ: 1 Piece -
8v-40v to 12v 10a Waterproof Boost&buck DC-DC Power ConverterNegotiableMOQ: 1 Piece
-
24v to 12v 5a Waterproof DC-DC Power ConverterUS$ 4.5 - 5.9MOQ: 1 Piece
-
800w 315v to 12v 70a Isolated dc dc Converter for evUS$ 399 - 489MOQ: 1 Piece
-
240W 24v to 12v 20a Waterproof DC-DC Power ConverterNegotiableMOQ: 1 Piece
Our products are widely used in automotive, posts and telecommunications, communications, electricity, coal, aerospace, defense, surveillance systems, railway signals, medical equipment, instruments and meters, LED displays, cable TV and other fields.
Features:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 26-50Vdc
4. Industry grade DC36V to DC12V step-up converter, high efficiency up to 96%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. According: CE/RoHS, IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating
9. Non-Isolated Module,
10. 1 year warranty, lifetime up to 100,000 hours.
Specifications:
Specifications:
Model |
GW-36S1250 |
Input rated voltage |
12V DC |
Input voltage range |
26-50V DC |
Efficiency |
97% (half load), 96% (full load) |
Output voltage |
12V DC |
Output current |
50 Amps |
Output rated power |
600 Watts |
Output peak power |
750 Watts |
Voltage regulation |
< 1% |
Load regulation |
< 2% |
| Ripple (Full load test) | < 150mV |
| No-load current | 50~60mA |
Working temperature |
-40°c ~ +80°c |
Waterproof rating |
IP68 |
Over-voltage protection |
YES |
Over-current protection |
YES |
Over-temperature protection |
YES |
Short-circuit protection |
NO |
Machine size |
182*127*63mm |
Package size |
230*150*100mm |
N. Weight |
1.5kg |
G. Weight |
1.63kg |
Cooling way |
Free air convection |
Other |

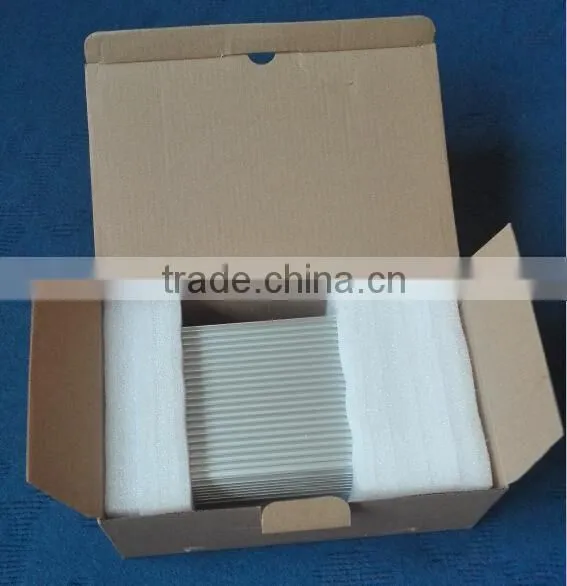

Carton packaging |
our company specialized in the manufacture and export of electric system products , including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator ,air conditioning system,electric system solution .etc
