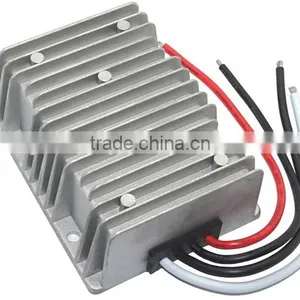

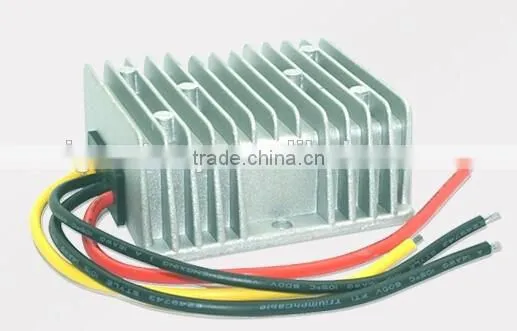

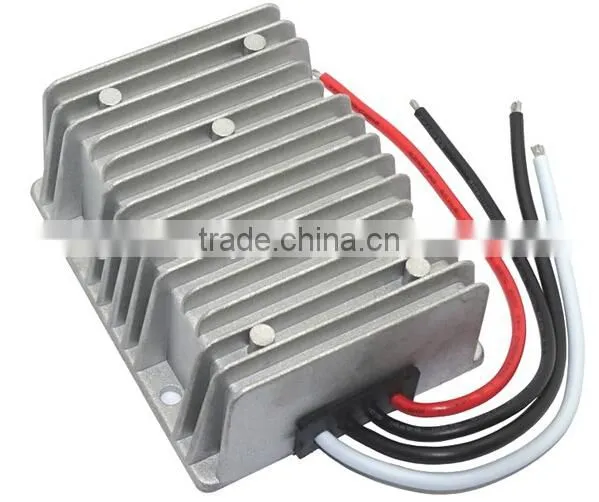

24v to 12v 5a waterproof DC-DC power converter
- 10000 Piece / Pieces per Month
- China port
- Credit Card PayPal
-
electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
-
45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
-
EM15-G3 General used Vector control Frequency inverter(3 phase )
-
EMHEATER soft starter
-
EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
-
Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
| Place of Origin: | Shandong, China | Brand Name: | gw | Model Number: | 24s12-05 |
| Output Power: | Other, 60w | Output Type: | Other, single and dual | Size: | 99*83*34mm |
| Weight: | 0.3kg | Input Voltage: | 16~40V | Output Voltage: | 12v |
| Type: | DC/DC Converters | Output Current: | 5A |
Product Description
Features:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 35-60Vdc
4. Industry grade DC48V to DC24V step-down converter, high efficiency up to 95%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. According: CE/RoHS, IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating
9. Non-Isolated Module,
Applications:
Trucks,Golf Carts,Forklifts,Buses,Loaders,Logging Vehicles,Wind Power System,Solar Power System,Electromotor,Telecommunications,Boat & Yacht,and so on...
Specifications:
Model | GW-24S1205 |
Input rated voltage | 24V DC |
Input voltage range | 16-35V DC |
Efficiency | 96.5% (half load), 95% (full load) |
Output voltage | 12V DC |
Output current | 05 Amps |
Output rated power | 60 Watts |
Output peak power | 75W |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple (Full load test) | < 50mV |
No-load current
| 20mA |
No-load loss (Watt) | 0.72 ~ 1.44 |
Working temperature | -40℃~ +80℃ |
Waterproof rating | IP68 |
Over-voltage protection | YES |
Over-current protection | YES |
Over-temperature protection | YES |
Short-circuit protection | NO |
Machine size | 57*64*22mm |
Package size | 90*72*29mm |
N. Weight | 125g |
G. Weight | 132g |
Cooling way | Free air convection |
Other | Carton packaging |
