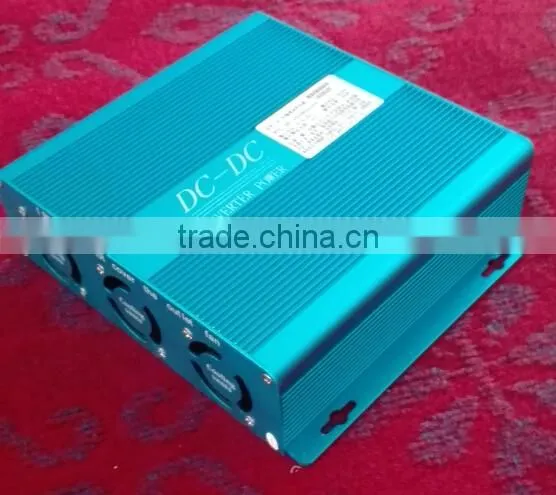

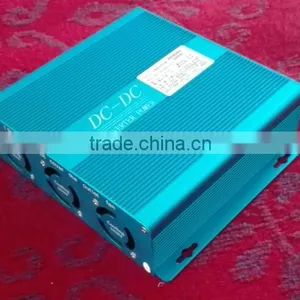

DC18~36 to DC 24V/30A/720W

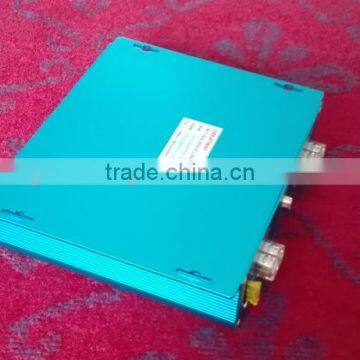

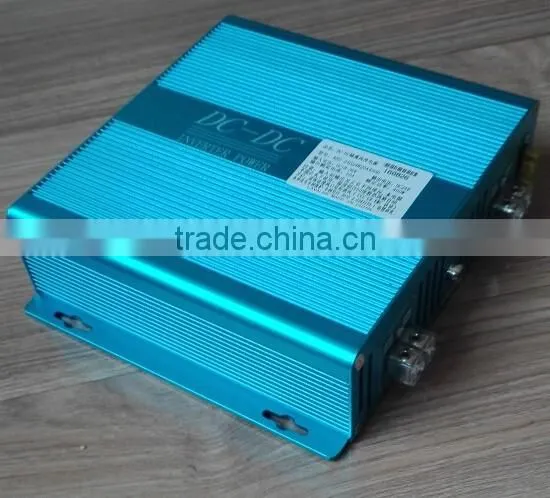

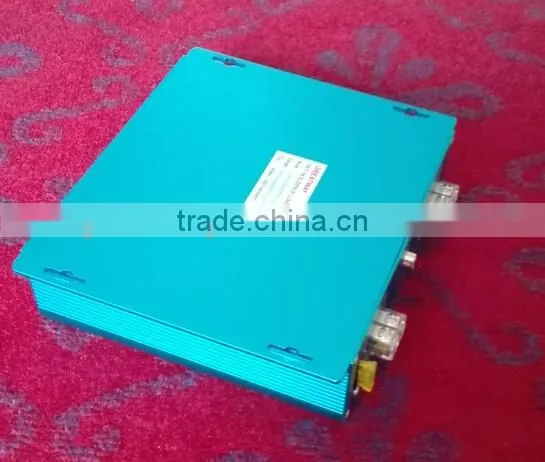

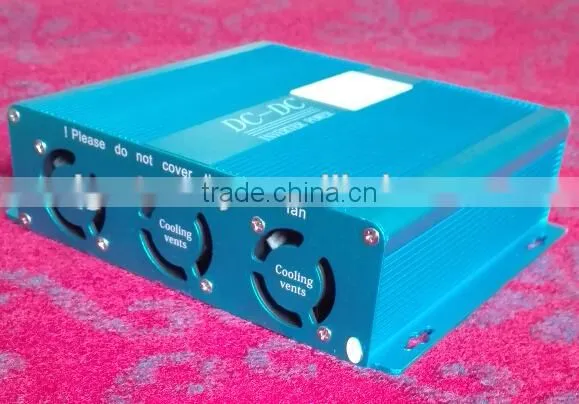

* Aluminum shell, Automatic air cooling
* High efficiency & Small Size SIL
* Output over -current Over - voltage under - voltage Short - circuit protection
* Low output ripple and noise
* Pass the cispr 25 & en55025
This power supply suitable for newsletter machine station, ship , electric cars, new energy products, LED electronic signs, GPRS, car audio, and other energy- saving appliances stable power supply use.
Input voltage: DC18-36V
Output voltage: DC24V
Current Rating: 30A
Rated output power: 720W

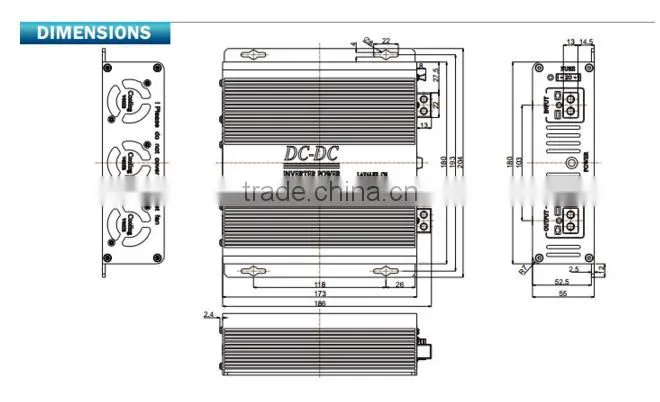

Size: 170 * 204 * 55 (mm)
Voltage stabilized isolated air cooling

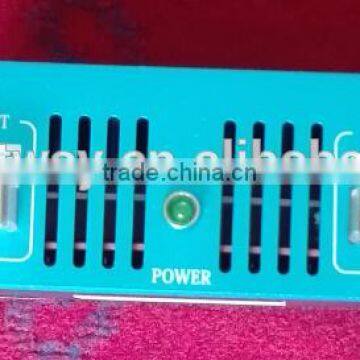

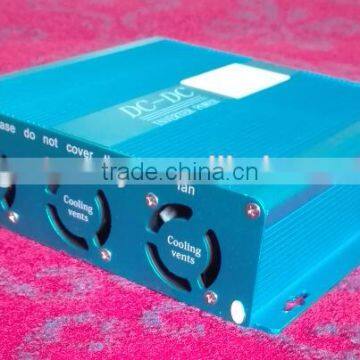

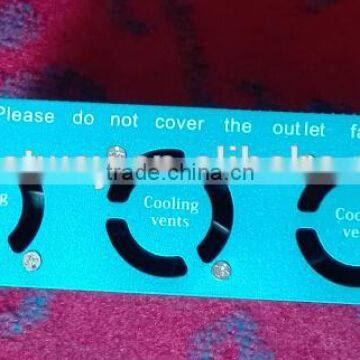

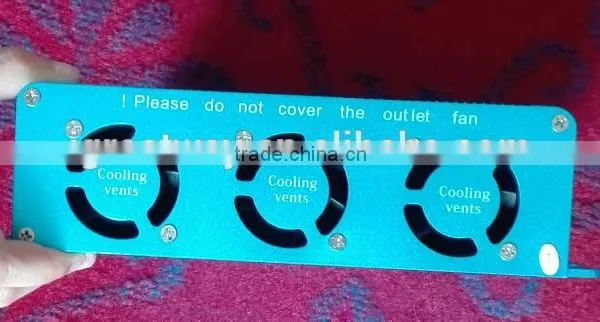

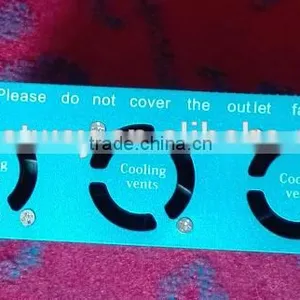

Automatic exhaust air cooling system
the power supply suitable for newsletter machine station, ship , electric cars, new energy products, LED electronic signs, GPRS, car audio, and other energy- saving appliances stable power supply use.
MODEL |
ABD -24D24N30A720D |
INPUT |
Voltage Range |
DC 18-36V |
|
|
OUTPUT |
DC Output |
24V±0.3 |
Input - Output |
AC1500V, |
|
Rated current |
30A |
Efficiency |
83% |
||
Current Range Note 1 |
0~30A |
DC Current |
<25A |
||
Ripple and noise |
<95mVpp max |
Inrush Current (Typical ) |
100A@DC Cold start |
||
Over-voltage protection |
>120%lo,latch off |
Input-Ground |
AC 1500V, 1min |
||
Over-current protection |
>120%lo,auto-recovery |
PROTECTION |
Over Power |
|
|
Line Regulation |
0.2%Vo max |
Over Current |
|
||
Load Regulation |
0.4%Vo max |
Over Voltage |
|
||
Short-circuit protection |
Continuous, auto-recovery |
Shorted Circuit |
Long-term |
||
Hold up time |
>8mS |
ENVIRONMENT |
Operating amb.Tem & Hum |
0~45℃, 20%~90%RH |
|
Transient response |
100mA max |
Storage Temp.& Hum |
|
||
Output-Ground |
DC500V, 1 mir |
||||
SAFETY&EMC NOTE3 |
Safety Standards |
CE |
|||
I/O Isolation Voltage |
400V |
||||
Isolation Resistance |
10MΩ |
||||
EMI Conduction&Radiation |
|
||||
Harmonic Current |
|
||||
EMS Immunity |
|
||||
Environmental |
MTBF |
> 2 million hrs |
|||
Temperature coefficient |
< 0.02%/℃ |
||||
Storage temperature range |
(-55℃ to 125℃) |
||||
Operating board temperature range |
(-40℃ to 55℃) |
||||
NOTE |
|||||
our company specialized in the manufacture and export of electric system products , including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator ,air conditioning system,electric system solution .etc
