12V24v to 5v 5a 25W Waterproof DC-DC Power Converter

Dezhou Greatway Import And Export Co., Ltd.
12V24v to 5v 5a 25W Waterproof DC-DC Power Converter thumbnail-1
12V24v to 5v 5a 25W Waterproof DC-DC Power Converter thumbnail-2
12V24v to 5v 5a 25W Waterproof DC-DC Power Converter thumbnail-3
12V24v to 5v 5a 25W Waterproof DC-DC Power Converter photo-1
12V24v to 5v 5a 25W Waterproof DC-DC Power Converter photo-2

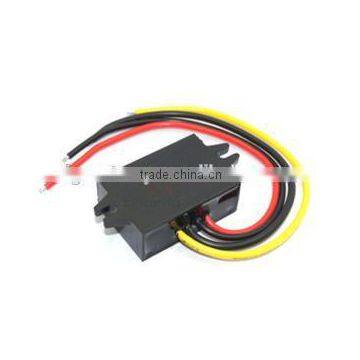

12V24v to 5v 5a 25W Waterproof DC-DC Power Converter photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
gw
Model Number:
GW1224S0505
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name gw
Model Number GW1224S0505
Output Power Other, 75w
Output Type Other, single and dual
Size 46*22*18mm
Weight 65g
Input Voltage 8~40V
Output Voltage 5v
Type DC/DC Converters
Output Current 5A

Features:

1. 100% full power & stable current output

2. 100% Imported components

3. Wide input voltage from 8-40Vdc

4. Industry grade DC12V /24Vto DC5V step-down converter, high efficiency up to 95%

5. 100% waterproof & anti-shock protection, Ultra compact size, light weight

6. According: CE/RoHS, IP68 design

7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection

8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating

9. Non-Isolated Module,

Applications:

Trucks,Golf Carts,Forklifts,Buses,Loaders,Logging Vehicles,Wind Power System,Solar Power System,Electromotor,Telecommunications,Boat & Yacht,and so on...



Specifications:

Model

GW-1224S0505

Input rated voltage

12V/24v DC

Input voltage range

8-40V DC

Efficiency

>94%

Output voltage

5V DC

Output current

5 Amps

Output rated power

25Watts

Output peak power

130%

Voltage regulation

< 1%

Load regulation

< 2%

Ripple (Full load test)

< 40mV

No-load current

< 20mA

Working temperature

-35℃~ +80℃

Waterproof rating

IP68

Over-voltage protection

YES

Over-current protection

YES

Over-temperature protection

YES

Short-circuit protection

YES

Machine size

46*22*18mm

Package size

55*25*22mm

N. Weight

65g

G. Weight

75g

Heat dissipation method

Die-cast aluminum housing

Natural heat dissipation
