48V to 5v 10A 50W Waterproof DC-DC Power Converter

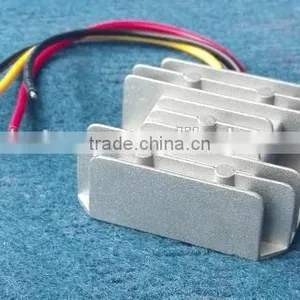

48V to 5v 10A 50W Waterproof DC-DC Power Converter thumbnail-1

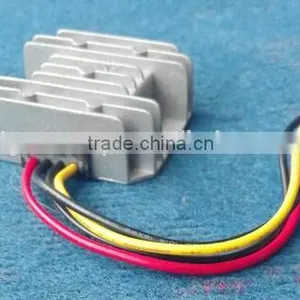

48V to 5v 10A 50W Waterproof DC-DC Power Converter thumbnail-2
48V to 5v 10A 50W Waterproof DC-DC Power Converter thumbnail-3
48V to 5v 10A 50W Waterproof DC-DC Power Converter thumbnail-4
48V to 5v 10A 50W Waterproof DC-DC Power Converter thumbnail-5
48V to 5v 10A 50W Waterproof DC-DC Power Converter thumbnail-6
48V to 5v 10A 50W Waterproof DC-DC Power Converter photo-1
48V to 5v 10A 50W Waterproof DC-DC Power Converter photo-2

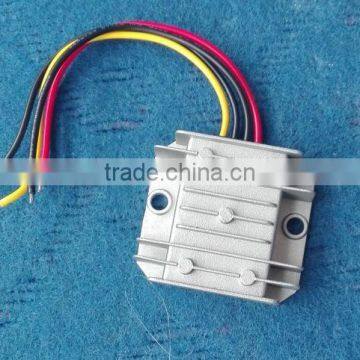

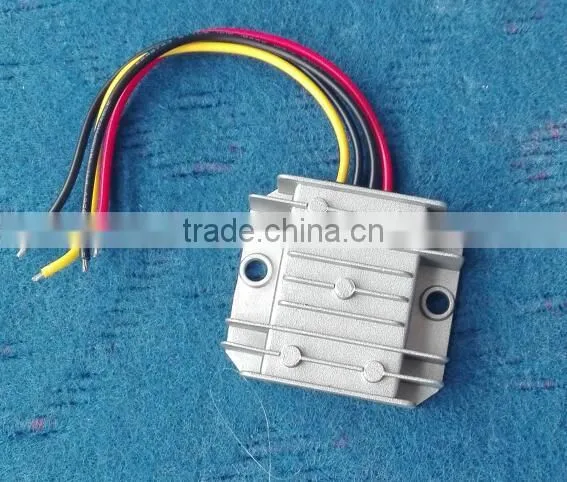

48V to 5v 10A 50W Waterproof DC-DC Power Converter photo-3

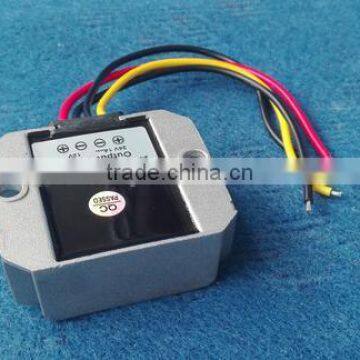

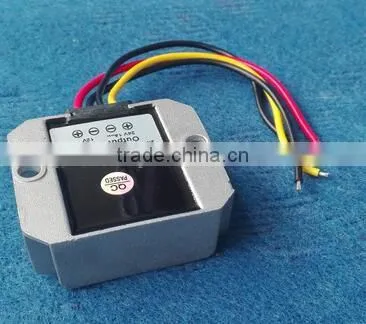

48V to 5v 10A 50W Waterproof DC-DC Power Converter photo-4

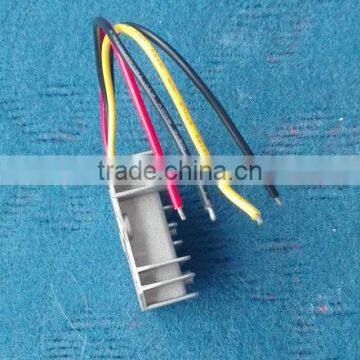

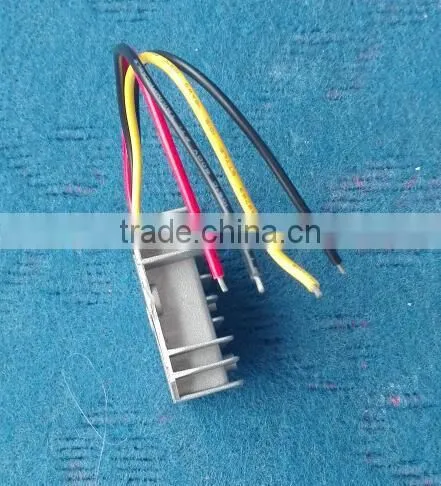

48V to 5v 10A 50W Waterproof DC-DC Power Converter photo-5

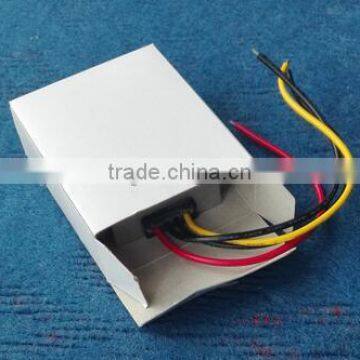

48V to 5v 10A 50W Waterproof DC-DC Power Converter photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
gw
Model Number:
GW48S0510
Contact Supplier Request Quote Chat Now
Dezhou Greatway Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name gw
Model Number GW48S0510
Output Power Other, 50w
Output Type Other, single and dual
Size 64*57.5*22.5mm
Weight 125g
Input Voltage 35~60V
Output Voltage 5v
Type DC/DC Converters
Output Current 10A

Features:

1. 100% full power & stable current output

2. 100% Imported components

3. Wide input voltage from 30-60Vdc

4. Industry grade DC48V to DC5V step-down converter, high efficiency up to 95%

5. 100% waterproof & anti-shock protection, Ultra compact size, light weight

6. According: CE/RoHS, IP68 design

7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection

8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating

9. Non-Isolated Module,

Applications:

Trucks,Golf Carts,Forklifts,Buses,Loaders,Logging Vehicles,Wind Power System,Solar Power System,Electromotor,Telecommunications,Boat & Yacht,and so on...



Specifications:

Model

GW48S0510

Input rated voltage

48V DC

Input voltage range

35-60V DC

Efficiency

>94%

Output voltage

5V DC

Output current

10Amps

Output rated power

50Watts

Output peak power

130%

Voltage regulation

< 1%

Load regulation

< 2%

Ripple (Full load test)

< 40mV

No-load current

< 20mA

Working temperature

-35℃~ +80℃

Waterproof rating

IP68

Over-voltage protection

YES

Over-current protection

YES

Over-temperature protection

YES

Short-circuit protection

YES

Machine size

64*57.5*22.5mm

Package size

99*83*34mm

N. Weight

125g

G. Weight

140g

Heat dissipation method

Die-cast aluminum housing

Natural heat dissipation

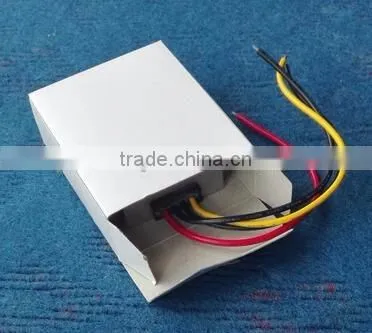

Packaging & Shipping
