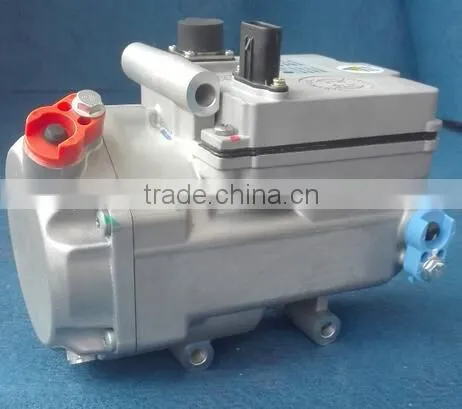

Help Center168V DC Electric Vortex Compressor for ev
Related Products
-
144V DC Electric Turbo Compressor of Air ConditioningNegotiableMOQ: 1 Piece -
48V, 60V, 72V, 96V, 144V, 220v,320V Cold and Warm Integral Universal ev Air ConditionerUS$ 469 - 599MOQ: 1 Piece
-
48V, 60V, 72V, 96V, 144V, 220v,320V ,336v,384v Cooled and Heating Electrical Air Conditioning for evNegotiableMOQ: 1 Piece
-
144V DC Electric Scroll Compressor of Air ConditioningNegotiableMOQ: 1 Set
-
400V DC Electric Scroll Compressor of Air ConditioningNegotiableMOQ: 1 Set
air conditioning system(A/C) for electric car
a/c system included the following parts
1.Scroll Compressor
Key Benefits:
1. Operated by DC power source, widely used on vehicle A/C systems, like electric car/electric bus/truck and other vehicle markets;
2. Small size, light weight, easily installation;
3. Scroll type compressor, with higher efficiency and good reliability; Low vibration and quiet operation;
4. Voltage widely ranges from 12V to 700VDC, and cooling capacity ranges from 1.0kw to 3.0kw(,24V,18cc items), 1.8kw to 5.4kw(27cc items);
Compressor type |
DLCP168-27Y3-2a |
||
Compressor mode |
Semi enclosed horizontal scroll compressor |
||
Using refrigerant |
R134a |
||
Exhaust volume |
27cm3/rev |
||
Driver |
Integrated type |
||
Motor cooling |
Suction refrigerant cooling |
||
Common speed range |
1500--4000rpm |
||
Maximum permissible rotational speed |
- |
||
Evaporation temperature range |
-10~15.6℃ |
||
Condensation temperature range |
26.7~65.6℃ |
||
pressurization |
Seal pressure |
30bar |
|
Damage pressure |
The suction side 5.2MPa The exhaust side 8.3MPa |
||
Pressure relief valve |
Pressure relief |
4.00.4MPa |
|
Recovery pressure |
3.25MPa |
||
The amount of leakage of refrigerant |
<14g/a |
||
Lubricating oil / oil |
POE-68/120ml |
||
Appearance |
Aluminum alloy surface shot peening |
||
Total mass (oil) |
6.1kg(Containing refrigerant oil) |
||
Installation method |
Through 3 holes on the bracket. |
||
Installation dimensions |
132 X 82 |
||
The suction pipe interface diameter |
18.3mm |
||
Exhaust pipe interface inner diameter |
15.5mm |
||
Protection level |
IP67 |
||
Electric parameter performance |
Motor type |
Permanent magnet synchronous motor |
|
Voltage resistance |
2000VAC, no abnormal after 1 minutes. |
||
Insulation property |
500VAC, insulation resistance >50M (20) |
||
Item |
Specifications |
||
Model |
Integral type DLCT144-1.6 |
||
Cooling mode |
Compressor suction cooling |
||
|
Speed |
Range |
4000r/min |
|
Regulation speed |
1000r/min /s |
||
Time of reaching Maximum speed |
within 5 seconds after starting |
||
Waterproof |
IP67 |
||
Control mode |
Sine wave control |
||
Operating voltage range |
134V-194v |
||
Withstand voltage range |
Less than200V |
||
Under voltage protection |
134V |
||
Under pressure recovery |
140V |
||
Over voltage protection |
200V |
||
Over voltage recovery |
190V |
||
Working current |
Normal working maximum current |
9A |
|
Overload operation |
The driver detects the load greater than 13A, and the compressor will be shut down |
||
Motor minimum operating speed |
When Motor speed is less than 1000 rpm, the compressor will be shut down |
||
|
Using environment |
Storage temperature |
-20 Degree ~65 Degree |
|
Using temperature |
-10 Degree ~ 65 Degree |
||
Drive belt work surface temperature |
30 degrees higher than the ambient temperature |
||
Insulation |
More than 50M |
||
