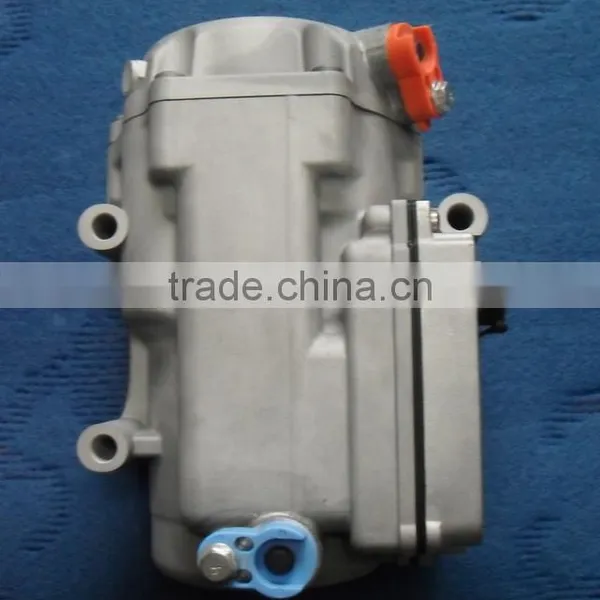

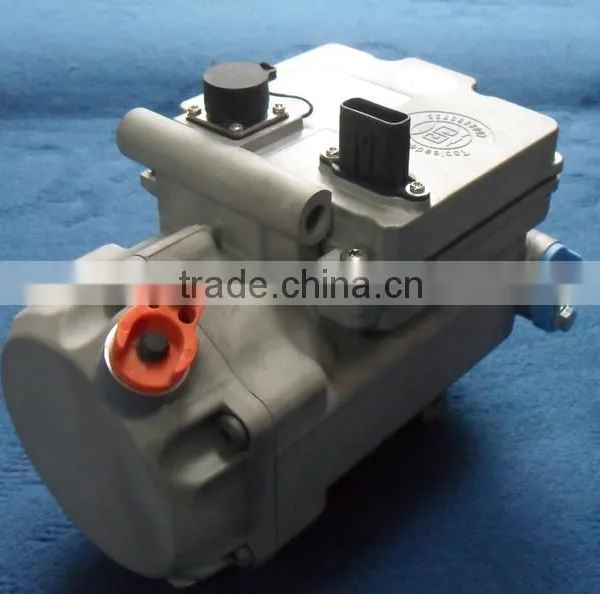

Help Center400V DC Electric Scroll Compressor of Air Conditioning
Related Products
-
360V DC Electric Scroll Compressor of Air ConditioningNegotiableMOQ: 1 Set -
DC Electric Scroll Compressor of Air Conditioning for EVNegotiableMOQ: 1 Set
-
200V DC Electric Scroll Compressor of Air ConditioningNegotiableMOQ: 1 Set
-
48V/60V/72V/96V/144V Electric Car Air Conditioning SystemNegotiableMOQ: 1 Set
-
A/C System for Electric CarNegotiableMOQ: 1 Set

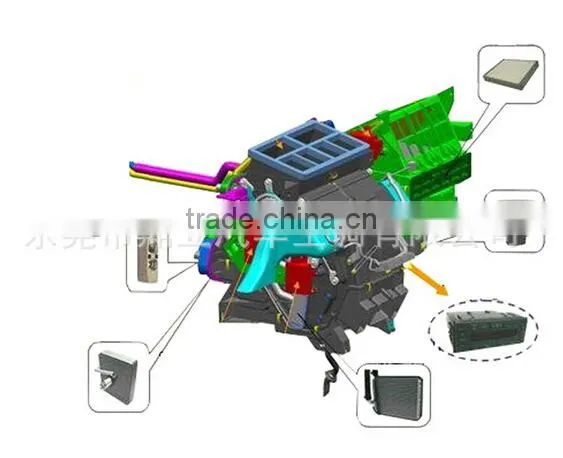

air conditioning system(A/C) for electric car
a/c system included the following parts
1.Scroll Compressor
2. The condenser assembly
3.A/C controller
4. Air conditioning pipe(line)
5. evaporator
Key Benefits:
1. Operated by DC power source, widely used on vehicle A/C systems, like electric car/electric bus/truck and other vehicle markets;
2. Small size, light weight, easily installation;
3. Scroll type compressor, with higher efficiency and good reliability; Low vibration and quiet operation;
4. Voltage widely ranges from 12V to 700VDC, and cooling capacity ranges from 1.0kw to 3.0kw(,24V,18cc items), 1.8kw to 5.4kw(27cc items);
Compressor model |
DLCP400-27Y3-2 |
|
Compressor style |
Semi-hermetical horizontal scroll compressor |
|
Refrigerant |
R134a |
|
Displacement |
27cm3/rev |
|
Compressor driver |
Compact version |
|
Motor cooling method |
Refrigerant cooling |
|
Normal speed |
1500~6000rpm |
|
Max. speed |
6000rpm |
|
Evaporator normal temp. |
-10~15.6℃ |
|
Condenser normal temp. |
26.7~65.6℃ |
|
Withstand pressure |
System detection pressure |
30bar |
Breakdown pressure |
Suction side: 5.2MPan Exhaust side: 8.3MPa |
|
Release valve |
Valve release pressure |
4.00.4MPa |
Valve release recovery pressure |
3.25MPa |
|
Refrigerant leakage rate |
<14g/a |
|
Lubricating oil |
POE-68/120ml |
|
Shell |
Aluminum alloy |
|
Gross weight |
6.1kg (including lubricating oil) |
|
Install method |
/ |
|
Comp. size |
210 x 120 x 160 mm |
|
Install size |
135 x 82 mm |
|
Suction pipe inner size |
18.3mm |
|
Exhaust pipe inner size |
15.5mm |
|
IP grade |
IP67 |
|
Motor performance |
Motor style |
Permanent-magnet BLDC electric motor |
Withstand voltage |
No abnormity when powered with 2000VAC for one minute |
|
Insulating property |
When powered with 500VAC, insulation resistance>50MΩ(with indoor temperature 20℃) |
|
