Concertina Wire – Clipped Form Increases Breaking Difficulties

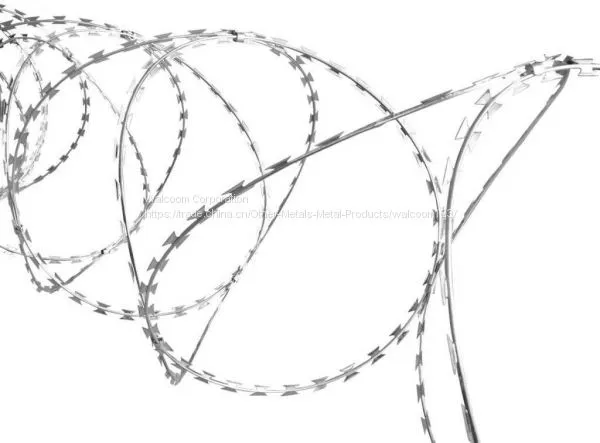

One part of concertina razor wire is shown, its adjacent loops are clipped by galvanized clips.
A Greater Sense of Security Option, The Most Defensive Barrier for Multiple Purposes.
Concertina wire is fabricated by attaching adjacent loops of helical coils to one another at specified points on the circumference, forming an accordion-like configuration. In this way, there are no gaps of sufficient size for persons to squeeze through. It provides unrivaled security and is widely used in applications such as border barriers and military bases.
Feature
Galvanized steel or stainless steel construction for corrosion resistant.
Visual and psychological deterrent to unwanted intruders.
Clipped form increases time for breaking in.
Multiple blade specs for choice.
No maintenance cost.
Specification
Blade TypeBTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65.
Concertina razor wire coil specification
Coil diameter (mm) Spiral turns per coil Clips per coil Recommended stretch length (m)
300 33 3 4
450 54 3 8 – 10
610 54 3 10 – 12
730 54 3 15 – 20
730 54 5 10 – 12
900 56 5 13 – 15
980 54 5 10 – 15
980 54 7 5 – 8
1250 54 7 4 – 6
1500 54 9 4 – 6
* Note: custom dimensions are also available.
