Framed Packs Improve Sealing Effect, Reduce Changout Time

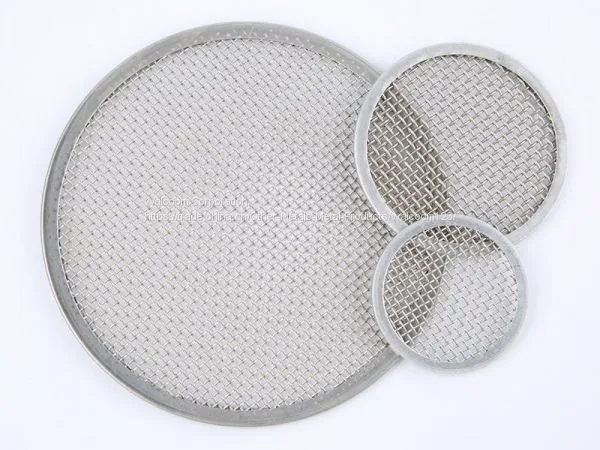

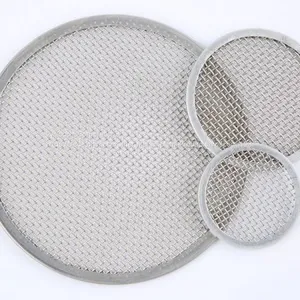

There are three rimmed filter discs constructed of single layer of woven wire mesh, and they three have different sizes.
Desired configurations and sizes to fit any filtration process.
Walcoom could provide framed packs with desired sizes and mesh combinations against order. Single or multiple layers of woven mesh cloths are encapsulated in an aluminum binding. The rigid form of framed packs helps control the flatness of the pack, improving sealing and consistency of itself. Most of them could be used in the plastic or rubber melt filtration process and are of the highest quality. Various configurations including single or multi-layer designs, rim bound, spot-welded and raw edge are supplied.
Feature
Wide variety of weaving methods and layers.
Easy and safe handling.
Framed packs improve sealing.
Bindings are available in various materials, thicknesses and widths.
Resistance to corrosion.
Reduced changeout time.
Accurate pore size.
Reversible packs to prevent improper installation.
Custom package.
Ultrasonic cleaning available for applications with cleanliness specifications.
Specification
Materialaluminum, brass, copper, stainless steel, and other alloys.Shapessquare, rectangular, round, oval, circular, etc.Weaving typesplain weave, twilled weave, dutch weave, plain dutch, twilled dutch, etc.Layersingle layer or multiple layers.Diameter of packs5–600 mm.Mesh size10–500 meshes.Micron ratings2–300 μm.
Framed packs specification
Code Mesh Wire Dia. (mm) Aperture Size (mm) Open Area %
WFP-01 10 × 10 0.711 1.829 51.80
WFP-02 14 × 14 0.457 1.357 55.90
WFP-03 16 × 16 0.457 1.131 50.70
WFP-04 20 × 20 0.559 0.711 31.40
WFP-05 20 × 20 0.457 0.813 41.00
WFP-06 24 × 24 0.376 0.682 41.40
WFP-07 30 × 30 0.376 0.531 34.20
WFP-08 30 × 30 0.310 0.536 40.00
WFP-09 40 × 40 0.274 0.361 32.30
WFP-10 50 × 50 0.193 0.335 43.60
WFP-11 60 × 60 0.193 0.230 29.80
WFP-12 80 × 80 0.122 0.196 37.90
WFP-13 100 × 100 0.102 0.152 36.00
WFP-14 120 × 120 0.091 0.120 31.80
WFP-15 150 × 150 0.071 0.088 29.60
WFP-16 200 × 200 0.050 0.077 36.76
WFP-17 250 × 250 0.040 0.062 36.76
WFP-18 300 × 300 0.040 0.045 27.83
WFP-19 325 × 325 0.035 0.043 30.49
WFP-20 400 × 400 0.028 0.036 31.25
WFP-21 500 × 500 0.025 0.026 25.79
Application
Framed packs can be used in variety of applications across many industries including oil & gas, textile, rubber, plastic, grain and oil screening, chemical, metallurgy, medicine, machinery, food and beverage, bio-pharmaceutical, etc.
