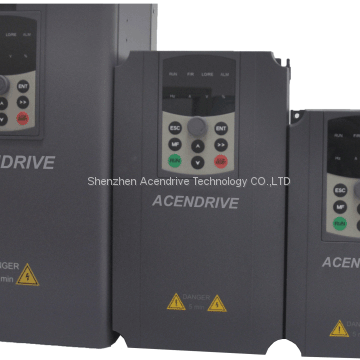

Heavy Duty AC Drive for Asynchronous and Aynchronous Motor CT120 Series

Heavy Duty AC Drive for Asynchronous and Aynchronous Motor CT120 Series thumbnail-1
Heavy Duty AC Drive for Asynchronous and Aynchronous Motor CT120 Series photo-1
US$ 50 - 5000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ACENDRIVE
Place of Origin:
China
Model Number:
CT200
Contact Supplier Request Quote Chat Now
Shenzhen Acendrive Technology CO.,LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ACENDRIVE
Place of Origin China
Model Number CT200
Type DC/AC Inverters
Weight 10
Output Power >1000KW
Output Type Triple
Output Frequency 0～600HZ, unit: 0.01Hz
Output Voltage 0～Rated input valtage
Input Voltage 220v/380v

Heavy Duty AC drive for asynchronous and aynchronous motor CT120 series


Model:  from 0.75kw to 500kw, 220v/380v, one phase and three phase available


The features of the CT200 Series Control Inverter are as follows：

Wide Applications

This inverter is applicable to both asynchronous motor and synchronous motor; therefore, it helps users to decrease the inventory since there is no problem of incompatibility for different types of motors.

Excellent Performance

SVC: 1:200; starting torque: 0.25Hz/ 150%; multiple braking modes; quick magnetic flow brake without braking resisto

Strong Adaptability

CT200 has a compact structure, independent air duct, high power density and low requirements on installation environment. The independent air duct enhances the protection effect, so that CT200 can be used in various hostile working environments. Besides, the two installation methods, i.e. board mounting and flange mounting meets the demand of different users.

Multiple Functions Two sets of motor parameters, V/F separate control, virtual terminal function, rotational speed tracking, relay delay output; Two sets of motor parameters allow users to use one inverter for different motors and help users to save cost; V/F separate control meets the demand of variable-frequency power source and achieves the flexible V/F curves.

High Reliability

CT200 obtains CE certification and has multiple protection functions and high reliability.

1. CT200 adopts thermal simulation technique; therefore, it has good heat dissipation effect and maintains high reliability.

2. CT200 is built-in C3 EMI filter to eliminate interference from outside and enhance system compatibility.

3. CT200 series passes various tests in terms of high temperature, low temperature, low pressure and vibration, which ensures high reliability before delivery.

4. CT200 series has got TUV-SUD certification, and has TUV mark and CE certification mark. It reaches the highest technical standards in Europe.

5. High-quality hardware: wide input voltage range, support DC input, DC bus, built-in braking unit (below 30KW), external high-performance LED keyboard, a great quantity of I/O terminals, C3 EMI filter, etc.

1. CT200 series has wide input voltage range to meet various working environment at user’s location, and it also supports DC voltage input

2. CT200 series supports common DC bus.

3. CT200 series supports independent control power supply to facilitate debugging by users.

4. The Built-in braking unit has the maximum power at 30KW (inclusive)

5. High-performance LED keyboard is available for users

6. Multiway I/O terminals; 3-way analog input; 2-way analog output; 8-way standard digital input, maximum frequency: 1KHz; 1-way high-speed digital input, maximum frequency: 50KHz; 1-way high-speed digital output,1-way terminal Y open collector output,

7. Support multiway analog input from -10V~10V.


Product Tags: AC drive , Heavy Duty AC drive , asynchronous and aynchronous
