Help CenterCT120 ACENDRIVE MINI Inverter Drive
US$ 50 - 500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ACENDRIVE
Place of Origin:
China
Model Number:
CT120
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Heavy Duty AC Drive for Asynchronous and Aynchronous Motor CT120 SeriesUS$ 50 - 5000MOQ: 1 Piece -
ACENDRIVE CT100 Variable Speed Drive for Pump and FunUS$ 50 - 500MOQ: 1 Piece
-
Variable Speed Drive Manufacturer China CT110 Special for Multi-pumps Water SupplyUS$ 50 - 500MOQ: 1 Piece
-
Manufacture Danfoss Low Variable Inverter Frequency Converter 50hz 3 1 Phase 60hz FC-360HSK5T4E20H2BXCOXXSXXXXAXBX 380V DriveNegotiableMOQ: 1 Piece
-
OEM Fruity Flavour 15g Mini Fruit Jelly in JarNegotiableMOQ: 500 Cartons
Brand Name
ACENDRIVE
Place of Origin
China
Model Number
CT120
Type
DC/AC Inverters
Weight
5
Output Power
>1000KW
Output Type
Triple
Output Frequency
0～600HZ
Output Voltage
0～Rated input valtage
Input Voltage
220V/380V

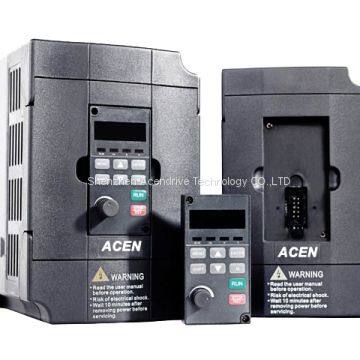

CT120 ACENDRIVE MINI inverter drive
Modle No.: 0.75KW - 2.2KW, 220V/380V, one and three phase available
CT120 Mini economic inverters are developed for general applications of small power and OEM market. It applies V/f control technology, making the functions of PID, multiple-speed step, DC braking, Modbus communication, as well as less installation space (15% smaller than the counterparts) available.
| Function | Specification | |
| I/O Features | Input Voltage Range | Single phase 220VAC±20%; Three phase 380VAC±20% |
| Input Frequency Rage | 50～60Hz±5% | |
| Output Valtage Rage | 0～Rated input valtage | |
| Output Frequency Rage | 0～600HZ, unit: 0.01Hz | |
| Output overload capacity | 150% rated current for 60S；180% rated current for 10S；200% rated current for 1S | |
| Control Function | Control mode | V/F control |
| Speed adjusting range | Asynchronous motor 1:100 | |
| Speed control accuracy： | ±0.5% (V/F control) | |
| Speed fluctuation | ±0.5% (V/F control) | |
| Starting torque | Asynchronous motor 0.5Hz/ 150% | |
| Starting frequency | 0.00～10.00Hz | |
| Accel./decel.time | 0.1～3000.0s | |
| Carrier wave frequency | 1.0KHz ～16.0KHz | |
| Frequency reference source | UP/ DOWN input, digital setting, Analog setting, Multi-step speed setting, PID setting, MODBUS communication setting. Realize the shifting between the set combination and set channel. | |
| Starting mode | Frequency start, DC bracking | |
| Halting mode | Slow down halting, free halting, slow down halting+DC bracking | |
| Energy consumption braking | 320～750V | |
| DC braking | DC braking frequency：0～300HZ； | |
| DC braking waiting time：0～50s； | ||
| DC braking current：0.0～100.0%； | ||
| DC braking time：0.0～50.0s； | ||
| Automatic voltage regulation (AVR) | When the grid voltage fluctuates, changes in the output voltages is very small, remained constant V/F | |
| I/O Terminals | DI Terminals | 5 channels common input |
| AI Terminals | 1 channel analog inputI, AIN:0～10v or 0-20mA input optional | |
| DO Terminal | 1 channel multi-functional collector | |
| Relay output Terminal | 1 channel relay outpu | |
| Communication Terminals | RS485 communication interface | Provide RS485 communication interface, adopt Modbus-RTU communication mode(RTU). |
| Fault protections | Overcurrent、short circuit、overvoltage、Undervoltage、overheat、bus undervoltage、motor overload、Inverter overload、abnormal input power、abnormal output、outside fault、communication fault、current detection fault、motor self-learning fault、EEPROM operation fault、PID fault、braking fault,ect. | |
| Man-machine interface | LED Display | Displayed related information in the high-lighted LED digital tube. |
| Environmental Constraint | Installation sites | Indoor. The inverter is prohibited to be stored at the place where with direct sunlight, fall of oil mist, steam, dust and with heavy oscillation.l |
| Temperature | −10～+40℃，inverter will be derated if ambient temperature between 40～50℃，the rated output current should be reduced 1% if temperature rise every 1% | |
| Humidity | 5～95%, without condensation | |
| Altitude | 0～2000M，inverter will be derated if the altitude >1000M，the reted output cureent reduced 1% if the altitude rise 100M. | |
| Oscillation | <0.5g | |
| Storage temperature | −40～+70℃ | |
