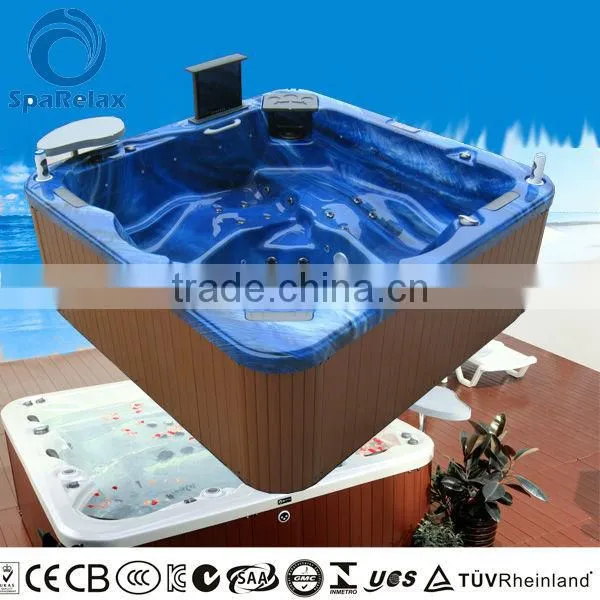

(Model A520-L ) US Designed Luxurious Pop-up TV Hot Spa

Specifications

(Model A520-L ) US designed luxurious pop-up TV hot spa

• Gross Weight: 503kgs
• Net Weight: 465kgs
• Volume: 5.32CBM

• SPECIFICATIONS:
  Dimensions (L x W x H):	230 x 230 x 92 cm
  Seating Capacity:	5 adults
  Lounge Seat (s):	2
  Water Capacity:	1,485 liters
  Dry Weight:	465 kg
  Filled Weight:	1,950 kg
  Spa Shell Material(USA):	Acrylic
  Spa Cabinet Material:	PS Wood-Plastic Composite Panels
  Cabinet Frame:	Preserve Woods+ stainless steel
  Bottom (Pedestal Base):	PVC Plastic sheet
  Jet Ring Trim(USA):	Dark Grey Plastic
  Total Jets (pcs):	41
  4"Double Rotational Jets (pcs):	1
  4" Rotational Jets (pcs):	6
  3" Rotational Jets (pcs):	8
  3" Directional Jets (pcs):	7
  2" Rotational Jets (pcs):	16
  2" Directional Jets (pcs):	2
  Ozone Jets	1
  Air jets(pcs) (Optional):	6
  Pump 1(CE, TUV Approved):	One-speed / 3.0HP
  Pump 2(CE, TUV Approved):	One-speed / 3.0HP
  Circulation Pump (CE, TUV Approved):	1 x 0.5HP
  Heater(CE, UL Approved):	1 x 3.0kW
  Lighting(ETL Approved):	Multi-colored LED Underwater Light
  Ozone Water Purification System:	Yes
  Electrical Requirements:	220-240V/50Hz, 26A Max.
  Suctions(UL Approved):	2 x 200GPM, 4 x 94GPM
  Filter Size:	50sq.ft.
  Diverter Valve(pc):	1
  Air Control Valves (pcs):	3
  EVA Spa Pillows(pcs):	3
  Bottom Drain(pc):	1
  Drain Valve(pc):	1
  Using spray insulating PU foam (USA) on the under-side of the spa shell:	Yes
  Sparelax Control System	Yes
