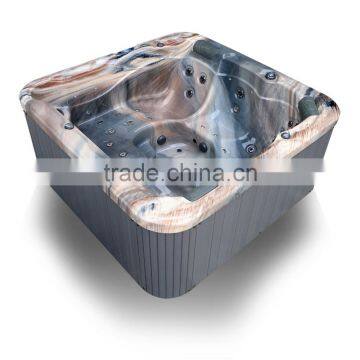

Most Fashion Popular Outdoor Wooden Spa for 5 Person (A520)

STANDARD SYSTEM

SPECIFICATIONS:

Model No.: A520

Loading Quantity:

6 sets / 20'GP

12 sets / 40'HQ

Gross Weight: 443kgs

Net Weight: 405kgs

Volume: 4.05CBM

Dimensions (L x W x H):

200 x 200 x 92 cm

Seating Capacity:

5 adults

Lounge Seat (s):

2

Water Capacity:

1,035 liters

Dry Weight:

405 kg

Filled Weight:

1,528 kg

Spa Shell Material(USA):

Lucite® Acrylic (Standard Shell Colors: Alba, Sterling silver & Navy)

Spa Cabinet Material:

PS Wood-Plastic Composite Panels

Cabinet Frame:

Preserve Woods+ stainless steel

Bottom (Pedestal Base):

PVC Plastic sheet

Jet Ring Trim (USA):

Dark Grey Plastic

Total Jets (pcs):

34

4" Double Rotational Jets (pcs):

1

3" Rotational Jets (pcs):

6

2" Rotational Jets (pcs):

12

2" Directional Jets (pcs):

4

1" Directional Jets (pcs):

11

Air jets(pcs) (Optional):

8

Pump 1(CE, TUV Approved):

One-speed / 3.0HP

Pump 2(CE, TUV Approved):

No

Circulation Pump (CE, TUV Approved):

1 x 0.5HP

Heater(CE, UL Approved):

1 x 3.0kW

Lighting(ETL Approved):

Multi-colored LED Underwater Light

Ozone Water Purification System:

Yes

Electrical Requirements:

220-240V/50Hz, 16A Max.

Suctions(UL Approved):

1 x 200GPM, 2 x 94GPM

Filter Size:

50sq.ft.

Diverter Valve(pc):

1

Air Control Valves (pcs):

3

EVA  Spa Pillows(pcs):

3

Bottom Drain(pc):

1

Drain Valve(pc):

1

Insulation(High density closed PU foam(USA)):

Yes
