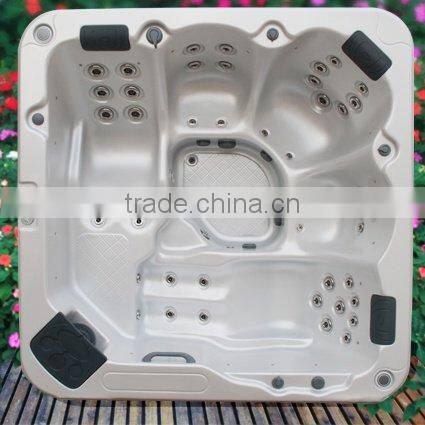

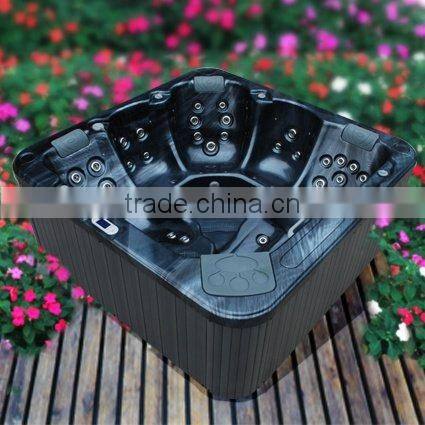

5 Person With 2 Lounges Personal Square Large Bathtub (A520-L)

Loading Quantity:

4 sets / 20'GP

12 sets / 40'HQ

Gross Weight: 503kgs

Net Weight: 465kgs

Volume: 5.32CBM

Dimensions (L x W x H):

230 x 230 x 92 cm

Seating Capacity:

5 adults

Lounge Seat (s):

2

Water Capacity:

1,485 liters

Dry Weight:

465 kg

Filled Weight:

1,873 kg

Spa Shell Material(USA):

Lucite® Acrylic (Standard Shell Colors: Alba, Sterling silver & Navy)

Spa Cabinet Material:

PS Wood-Plastic Composite Panels

Cabinet Frame:

Preserve Woods+ stainless steel

Bottom (Pedestal Base):

PVC Plastic sheet

Jet Ring Trim(USA):

Dark Grey Plastic

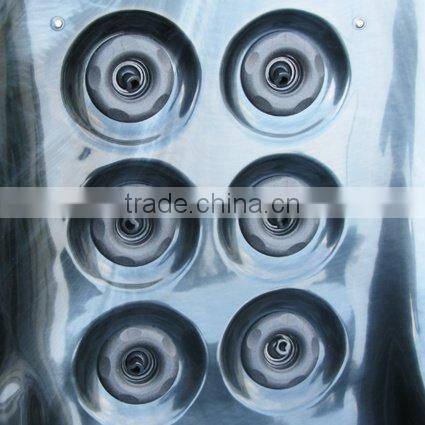

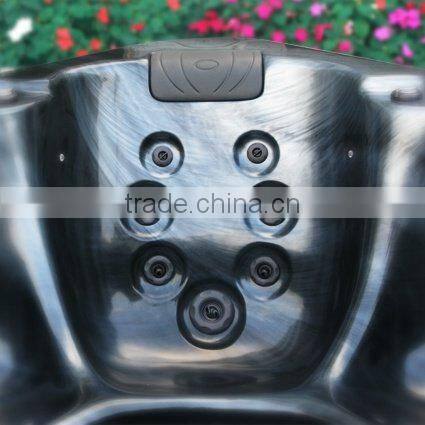

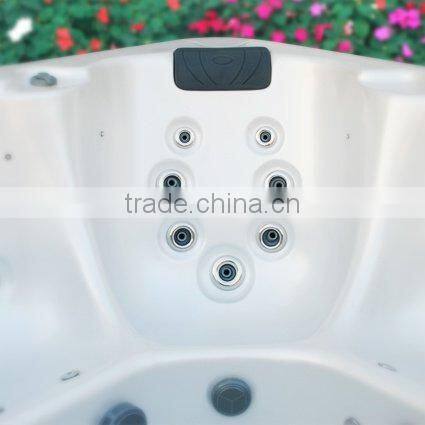

Total Jets (pcs):

41

4"Double Rotational Jets (pcs):

1

4" Rotational Jets (pcs):

6

3" Rotational Jets (pcs):

8

3" Directional Jets (pcs):

7

2" Rotational Jets (pcs):

16

2" Directional Jets (pcs):

2

Ozone Jets

1

Air jets(pcs) (Optional):

6

Pump 1(CE, TUV Approved):

One-speed / 3.0HP

Pump 2(CE, TUV Approved):

One-speed / 3.0HP

Circulation Pump (CE, TUV Approved):

1 x 0.5HP

Heater(CE, UL Approved):

1 x 3.0kW

Lighting(ETL Approved):

Multi-colored LED Underwater Light

Ozone Water Purification System:

Yes

Electrical Requirements:

220-240V/50Hz, 26A Max.

Suctions(UL Approved):

2 x 200GPM, 4 x 94GPM

Filter Size:

50sq.ft.

Diverter Valve(pc):

1

Air Control Valves (pcs):

3

EVA Spa Pillows(pcs):

3

Bottom Drain(pc):

1

Drain Valve(pc):

1

Using spray insulating PU foam (USA) on the under-side of the spa shell:

Yes

Sparelax Control System

Yes
