Mixing System & Mixers
Brief introduction and application:
We supply mixing technology that meets the highest requirements of materials preparation. Customers benefit from the competency in complete mixing system, the know-how processing technology, environment protection as well as intelligent automation solutions.
SINBAK offers high-quality heating / cooling mixers with cubage 5 - 4,000 Liters. They are applied for mixing, coloring and drying materials of PVC, PE, PP, ABS and PC. We customized designs and offers mixing system such as mixers, loaders, storage tanks, moving trolleys as well as dust suctioners.
Feature:
Strong stand. Customized design of stand height.
Ladders and guard bars for security.
Pot body made of stainless steel 304.
Fixing vane blades with anti-off gaskets and big nuts.
Double rubber sealings of covers.
No-leakage of discharge place by quality rubber sealings and curve-cut discharge plugs.
Air blowing for rapid cleaning at discharge place.
Separate water of the air from air compressor.
Strict inspection of tank leakage.
Pressure testing of water tubes.
Balance testing of vane blades.
Major Technical Parameters:
Z series vertical type mixers:
Mixer model
Mixing type
Total cubage
Liter
Effective cubage
Liter
Motor power
(kW)
Mixing time
min
Capacity
kg/h
SRL-Z 100/200
Heating/cooling
100/200
75/150
12/22/4
8- 12
175
SRL-Z 200/500
Heating/cooling
200/500
150/375
30/42/7.5
8- 12
350
SRL-Z 300/600
Heating/cooling
300/600
225/450
40/55/7.5
8- 12
550
SRL-Z 500/1000
Heating/cooling
500/1000
375/750
55/75/15
8- 12
750
SRL-Z 500/1250
Heating/cooling
500/1250
375/940
55/75/15
8- 12
850
SRL-Z 800/1600
Heating/cooling
800/1600
600/1200
83/110/18.5
8- 12
1320

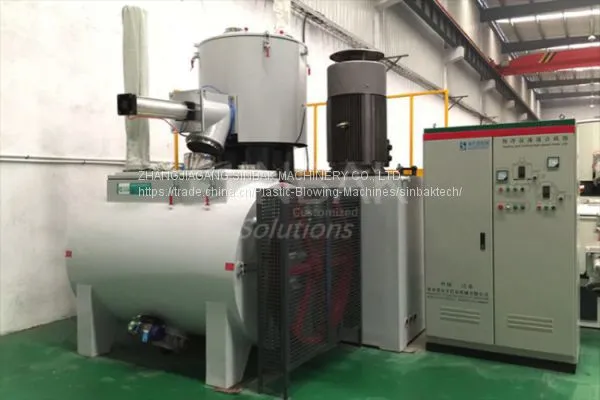

W series horizontal type mixers:
Mixer model Mixing type
Total cubage
Liter
Effective cubage
Liter
Motor power
(kW)
Mixing time
min
Capacity
kg/h
SRL-W 300/1000 Heating/cooling 300/1000 225/750 40/55/7.5 8- 12 500
SRL-W 500/1500 Heating/cooling 500/1500 375/1120 55/75/15 8- 12 850
SRL-W 800/2500 Heating/cooling 800/2500 600/1880 83/110/22 8- 12 1320
SRL-W 1000/2000 Heating/cooling 1000/2000 750/1500 110/160/30 8- 12 1750
SRL-W 1000/3000 Heating/cooling 1000/3000 750/2250 110/160/30 8- 12 1750
SRL-W 1000/4000 Heating/cooling 1000/4000 750/3000 110/160/37 8- 12 1750
SRL-W 800 X 2/4000 Heating/cooling 800 X 2/4000 1200/2700 83/110 X 2/30 8- 12 2640
