Product Introduction
Hengfeng geocell, a new type of high-strength geo-synthetics, which is popular at home and abroad since its good performance. According to the GB/T 19274-2003 execution standard, our geocell is made of strengthened HDPE sheets which welded into the structured of three-dimensional reticular by high- power ultrasonic.
The product has the features of high-strength, durable, light weight. In process of construction, the geocell can be pulled into a honeycombed grid and then filled with various materials to provide a solution for erosion control, load support and earth retention projects. Therefore, it is widely used in stabling soft roadbed and bearing the load of dike.

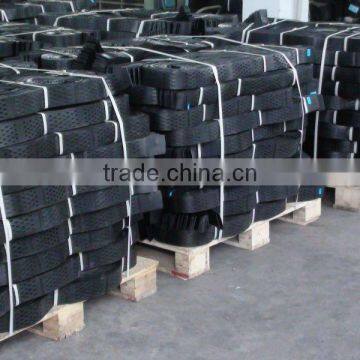

Packing & Shipping
Product Effect
1.To stable the roadbed of railway and highroad.
2. To bear the load of dike or retaining wall.
3. To support the pipeline and sewer.
4. For the prevention of landside by using geocell as a heavy-duty hybrid force retaining wall.
5. For the desert, beaches and the riverbed, the river bank's regulation.
Product Size
Product Type | Height(mm) | Welding Distance(mm) | Thickness (mm) | Tensile Strength of Welding Points(N/cm) | Tensile Strength of Connection of Cells(N/cm) | Tensile Strength at Yield of Each Sheet(N/Mpa) |
GB-50-400 | 50≤H≤250 | 330≤A≤1600 | 1.0~2.0 | ≥100 | ≥120 | ≥20 |
GB-75-400 | 50≤H≤250 | 330≤A≤1600 | 1.0~2.0 | ≥100 | ≥120 | ≥20 |
GB-100-400 | 50≤H≤250 | 330≤A≤1600 | 1.0~2.0 | ≥100 | ≥120 | ≥20 |
GB-150-400 | 50≤H≤250 | 330≤A≤1600 | 1.0~2.0 | ≥100 | ≥120 | ≥20 |
GB-200-400 | 50≤H≤250 | 330≤A≤1600 | 1.0~2.0 | ≥100 | ≥120 | ≥20 |
Remarks: Width of the product can be made according to the customer’s demand, and the other special standards will be carried out by agreement or contact. (The product has passed CE & GOST-R & SGS certification) | ||||||
