Automatic Pet (fish,dog,cat)Food production line

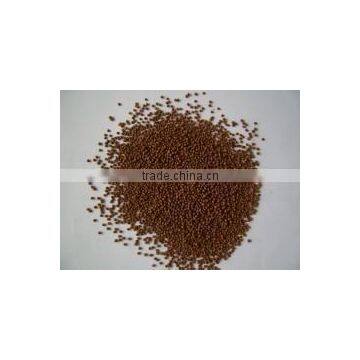

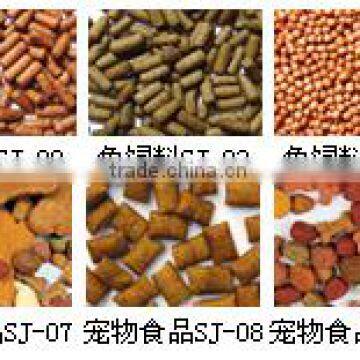

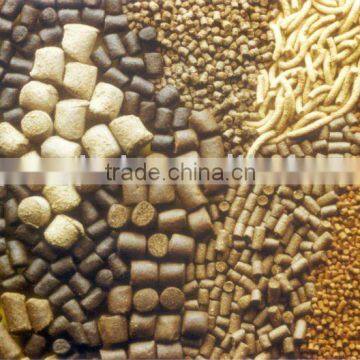

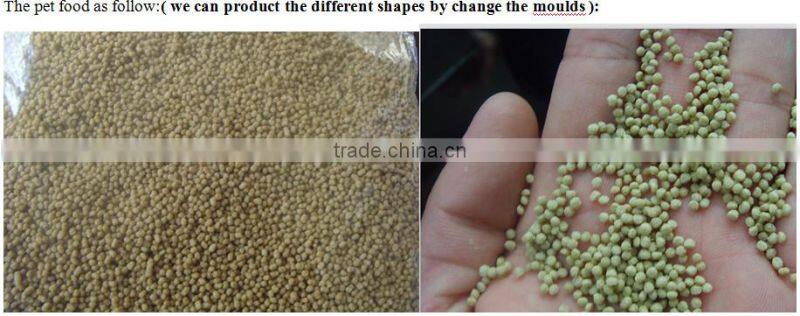

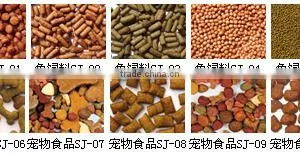

Extruding and inflating technology is that it can supply us un-image processing measure, combine with market demand. Pet food machinery produced by Chen yang company, adopts particular process technics and equipment scheme, the final products with fashion shape, special taste, scientific nutrition combinative, easily to absorb ,suits for fish,dog ,cat etc.and is quite popular to the market.

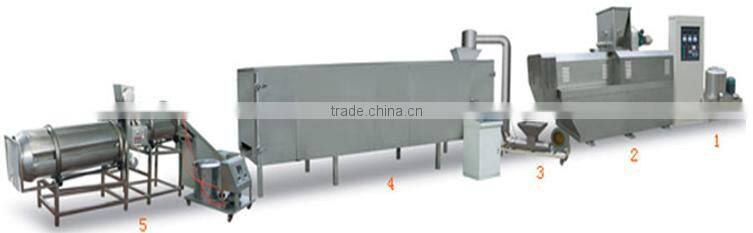

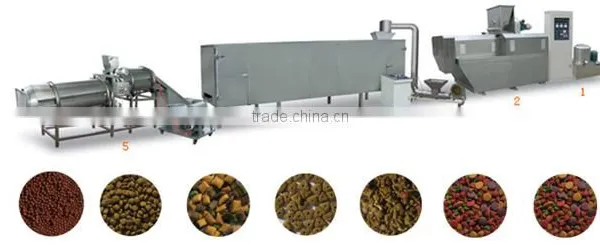

The fish food flow chart as follow
Mixer—Screw conveyor—Modulator machine-CY85 Double-screw extruder—Vibrating Screen
-Air conveyor—electrical roasting oven(dryer)-Hoister-Oil Spray-Double flavoring line-Cooling machine
For Pet Food Processing Line :
The quotation list and detailed information( 500-600kg/h)
No. | Equipment | Description | Function |
1 | Flour mixer
| Installed power:4kw Actual Power : 2kw Output :500kg/h Size:0.85×0.5×1.1 m
|
To mix the material,such as corn powder ,the bone powder and some water
|
2. | Screw conveyor
| Installed power:1.1kw Actual power:0.8 kw Size: 1.7*0.8*4m |
Automatic to convey the powder from mixer to the extruder |
3 | Modulator | Power:1.1kw Output:200-400kw Size:1.5*0.6*0.5m |
To cure the raw material before extruder |
4 | Twin screw extruder CY-85 | Installed power:110kw Actual power:60-70kw Capacity:400-600kg/h Size:3*1.1*1.8m |
Through the extruder,can make the raw material become the puffed different shape just need to change the model |
5 | Shifter(Vibrate machine)
| Motor Power:3kw Actual power:1.5kw Size:2.1*0.5*2m | To cool and vibrating the pet food |
6 |
Air conveyor
| Motor Power :3kw Actual power:2.6m Capacity:800kg/h Size:1*1*1.2m |
To send the food to the oven(dryer) |
7 |
Eight meters seven layers electrical dryer
|
Motor Power:170kw Actual power:110-135kw Capacity:500-600kg/h Size :8.5*1.1*2.5m |
To dry the food ,make it lose some water to be reserve easily(you can according to yourself choose the oil oven,gas oven or the electric oven) |
9 | Double Automatic flavoring line | Motor power:2.61kw Actual power:2kw Size: 1.8*0.7*1.6m
| This system include hoister,oil sparying machine, can flavour the fish food well. |
Please tell me the Input Voltage in your country,Chinese is 380V/50HZ or 220V/50HZ,if it is different from yours ,we will adjust it.

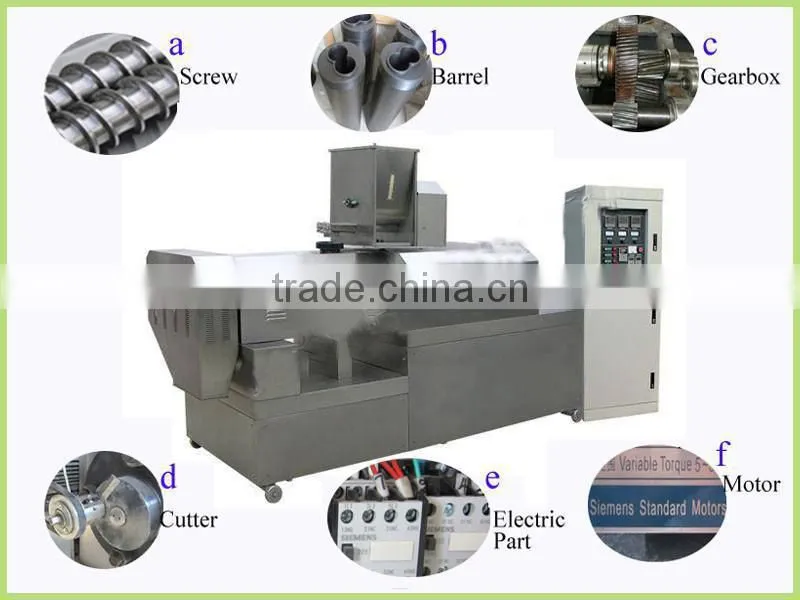

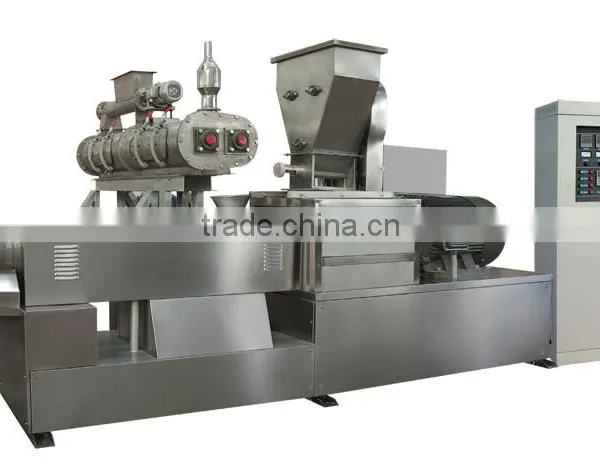

CY 85-II double screw extruder with Modulator machine
About the double screw extruder, we add the cooling system to control the temperature and then make the corn pellets more good quality, we add the Decelerator on the extruder and make the extruder runs more steady. The materials of the barrel is anti-corrosion and wear-resistant materials,as the mechanical support, the outer most is made by stainless steel for good corrosion resistance and can be washed by water directly.by using a variety of alloys and materials,this modulator should use the high temperture steam as the energy to cooking the raw material inside this modulator machine .cooking the raw material inside the modulator machine can short the extrusion time inside the extruder .
Main feature:
. Double screw extruder mainly contains :feeding systems, extruding systems, cutting systems, heating systems,gearing systems, lubricating system, control system. Main features:
A:extruding systems: the screw with high wear-resistant performance by using alloys steel materials, screw is made by special technique, is able to bear grinding, steady and reliable, longer using life.according to different screw design rate to ful different technology request.
B:Cutting system :the cutting system adopt center cutting,high precisional orientation to make sure that the cutting knife keep a parallel place with the cyclostyle avoid the wear and tear, the head of the cutting knife like a spring ,so that the symmetrical pressure make the cutting very easy ,after cutting the products size looks more perfect.especially avoid the metal powder go into the products.
C:Heating system:use the far infrared heating manner,circulate water for cooling,to guarantee the extruder running safely.
D: Gearing system:the main motor,feeding ,cutting,liquid feeding system of the extruder all use the frequency to control the speed ,the frequency w e use is : DELTA,the gear we use hard gear,enough strong,running placidly and low noise.
E: lubricating system:have single oil box circle system,and have a inspect equipment for the press meter.
F: Controlling system :consists of feeding system, extruding system and cutting system adopts frequency speed-controlling with high automation and stable per-formation.
G: Feeding system:according to different materials, to choose the relative single or double screw feeding system, the materials should be uniformity and stable.
H: the extruder has cooling system, it can control the temperature well.
