Chewing dog food production line
Introduce:

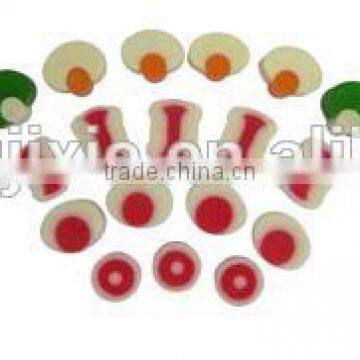

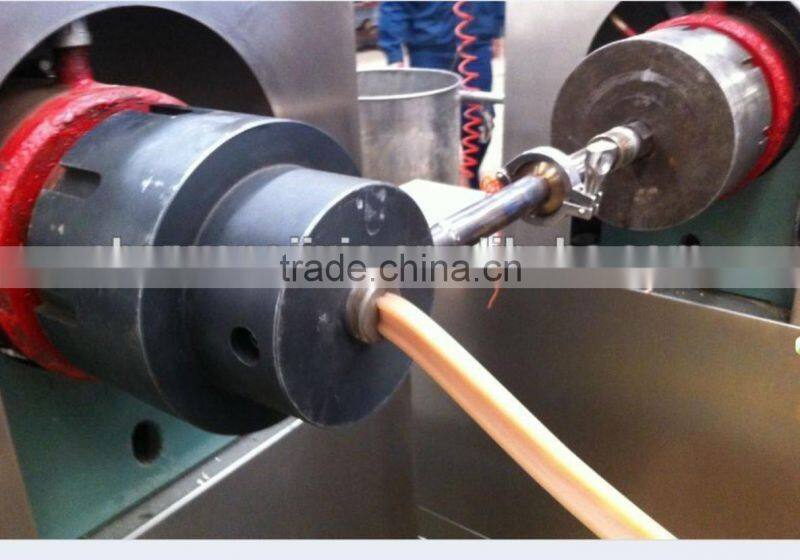

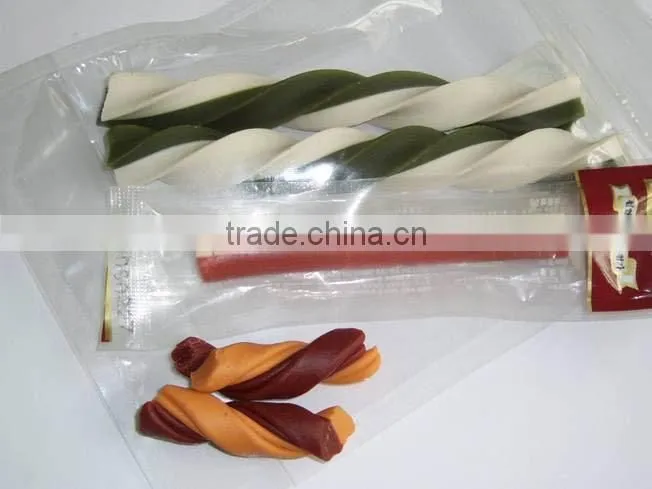

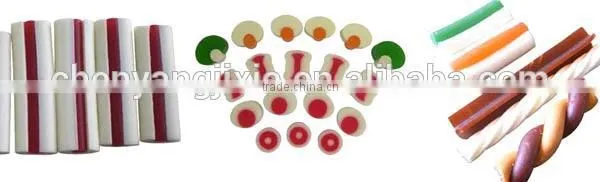

Dog chewing food machine can make dog chewing food is made of many kinds of different materials with scientific configuration and extrusion in the extruder. This kind of product can be made into a variety of shapes such as stick, bone, etc. This kind of food not only provides nutrition to dogs, like protein, fat, vitamin, etc, but also satisfies the dog nature hobby, benefits its strong teeth, cleans mouth and teeth, and prevents disease.The motor used Siemens motor .
Materials:
adopts corn flour, bone meal, fish meal as raw materials
Capacity:
100kg/h 200kg/h
Process and follow chart

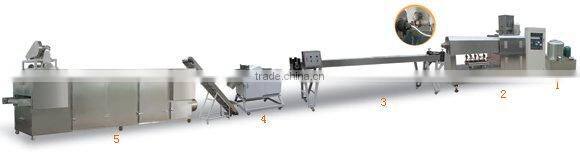

Mixer---Screw conveyor--- Single screw extruder---Cooling machine---Cutting machine--- Hoister---Drying oven
Voltage:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
Technical Parameter:
| Model | Installed powder | Power consumption | Output | Dimension |
| CYS-100 | 65kw | 45kw | 100kg/h | 13000*1200*2000mm |
The Various Parts Of Details Technical Parameter:
| Model | Installed powder | Power consumption | Output | Dimension |
| Mixer | 4kw | 3kw | 40kg/time | 1200*650*1100mm |
| Screw conveyor | 1.1kw | 0.8kw | 100-200 kg/h |
3000*800*2800mm |
| CYS-100 single screw extruder | 45kw |
30kw | 100kg/h | 3200*1050*1960mm |
| Cooling | 0.75kw | 0.5kw | 100-200 kg/h |
6000*400*800mm |
| Cutting machine | 2.2kw | 1.8kw | 100-200 kg/h |
1200x 700x 1350mm |
| Hoister | 0.75kw | 0.5kw | 100-200 kg/h |
1000*300*1500 mm |
| Drying oven |
65kw(elec.) 7.5kw(gas/oil) |
40kw 12L/h |
100-200 kg/h |
5000×1400×2000mm |
Installation and after-sale service system:
1. Installation and commissioning
2. Project planning and design services
3. Training of equipment maintenance and operating personally
4. New production techniques and formulas
5. 1 year complete warrantee
If you have any question about our product or any other question about this kind of machine ,please contact with us,we will try our best to help you with your problems.
We-chat:2621693984
QQ:2621693984
you can also write Email to me,and my name is daisy.I will reply you within 24 hours.
welcome to visite our company!
