Product Description

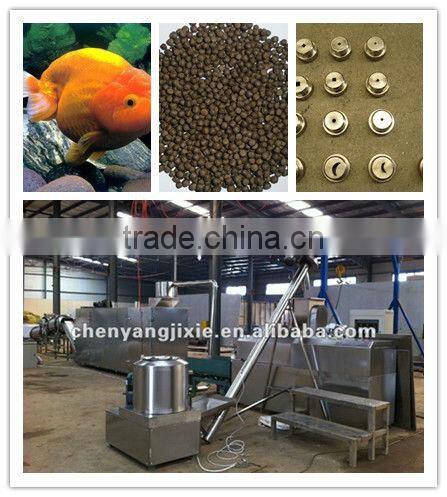

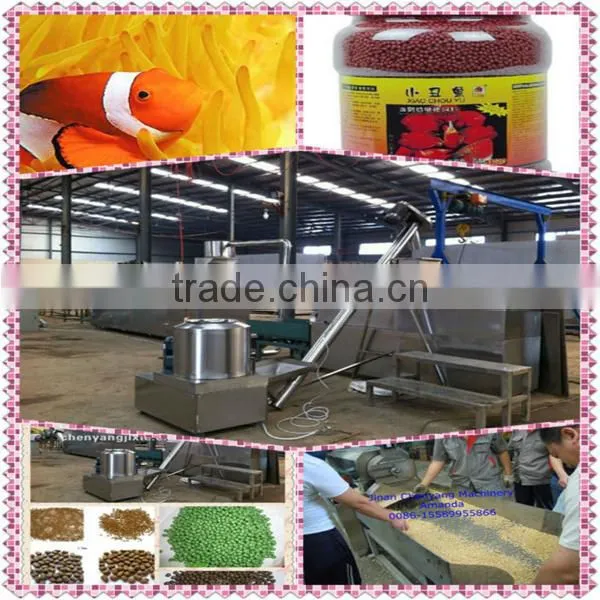

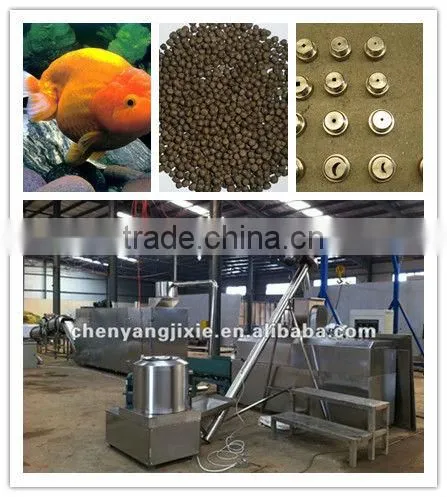

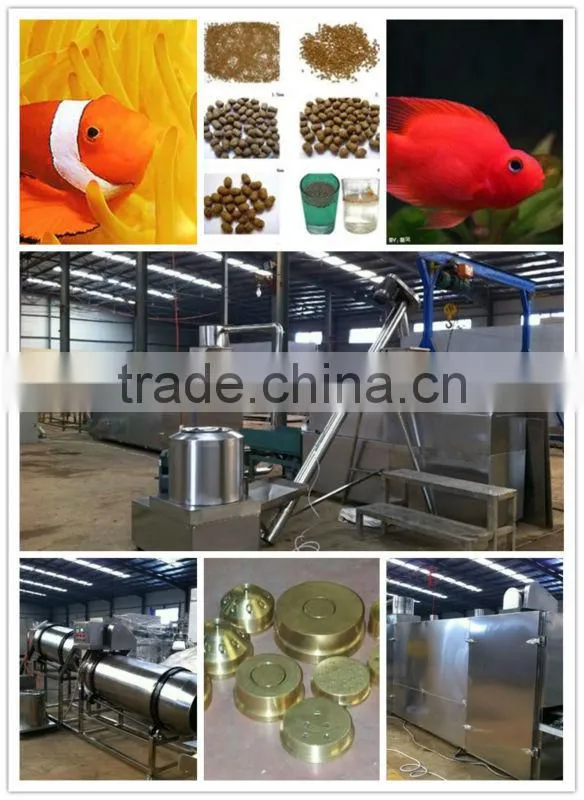

Extruding and inflating technology is that it can supply us un-image processing measure, combine with market demand, fish food machinery produced by Chenyang Company, adopts particular process technics and equipment scheme. The final products with fashion shape, specail taste, scientific nutrition combinative, easily to absorb and is quite popular to the pet market
Capacity: 120-150kg/h 160-200kg/h 300-500kg/h
Process and follow chart:

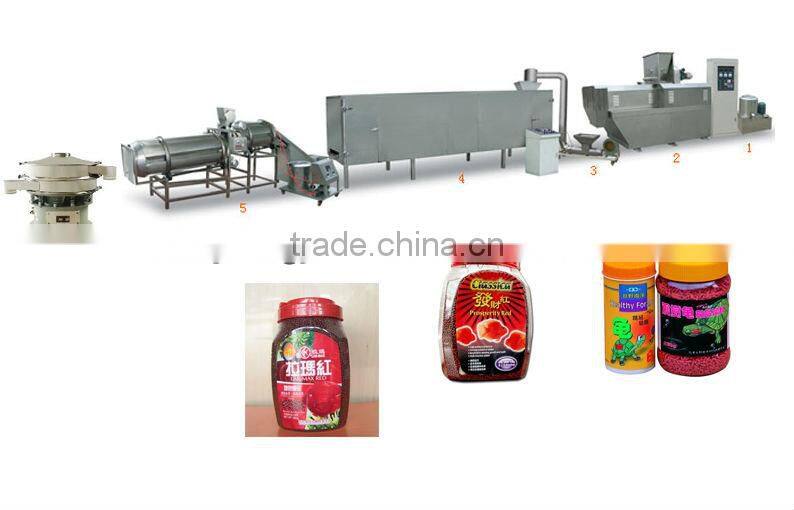

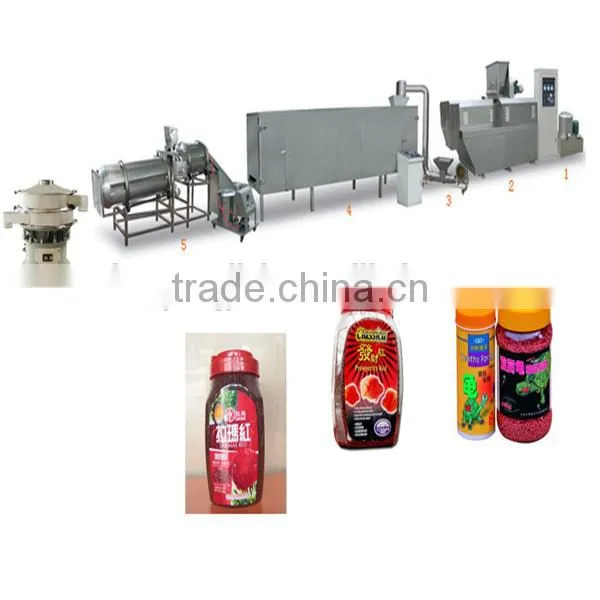

Mixer---Screw conveyor---Double screw extruder--- Air conveyor--- Drying oven------Hoister---Flavouring---Cooling
Voltage: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
Technical Parameter:
| Model | CY65-II Pet food processing Line | CY70 Pet Food Processing Line | CY85 Pet Food Processing Line |
| Installed Capacity | 70 kw | 120 kw | 145 kw |
| Power | 22kw | 30 kw | 90 kw |
| Capacity | 120-150kg/h | 160-200 kg/h | 300-500kg/h |
| Dimension | 12000x1200x2300mm | 33000x1500x2400mm | 35000x1500x2500m |
The Various Parts Of Details Technical Parameter:
| Model | Installed powder | Power consumption | Output | Dimension |
| Mixer | 4kw | 3kw | 40kg/time | 1200*650*1100mm |
| Screw conveyor | 1.1kw | 0.8kw | 100-200 kg/h | 3000*800*2800mm |
| Double screw extruder | 45kw | 30kw | 120-150 kg/h | 2500*1050*1800mm |
| Air Conveyor | 0.75kw | 0.5kw | 120-150 kg/h | 1000*200*1800mm |
| Drying oven | 65kw(elec.) 7.5kw(gas/oil) | 40kw 12L/h | 120-200 Kg/h | 5000*1400*2000mm |
| Flavouring | 4.5kw | 3kw | 120-150 kg/h | 3500*600*1600mm |
Installation and after-sale service system:
1. Installation and commissioning
2. Project planning and design services
3. Training of equipment maintenance and operating personally
4. New production techniques and formulas
5.1 year complete warrantee
FAQ:
Q1, What is the material for making fish feed pellet?
A1: There is a wide selection for material. corn flour, wheat meal, bone meal, meat meal, fish meal, etc. All can be sued for making fish feed pellet. Please note that the size should be 60-80 mesh.
Q2, What is the size of the final fish feed pellet?
A2: The fish feed pellet is 1-12mm size, you can choose the size you prefer.
Q3, The fish feed pellet machine is a single machine or a complete production line?
A3: It is depend on your chooice. the machine can working seperatly, also in a production line, from material crushing to final pellet packing. You can choose it freely.
Q4, What is the production chart for the whole production line?
A4: The production line is goes as follows: material crushing----mixing----making pellets---pellets flavoring----pellet drying----pellet packing.
Q5, What is the delivery time of the fish feed pellet machine?
A5: Usually the single machine can be sent within 15 days after getting the deposit. If it is a large order or production line, the time maybe longer.
