Specifications
1.High quality nutrition protein food production line2.advanced technology
3.friendly human-machine interface
4.energy save
Nutritional protein food production line /Textured soybean protein Food Production Line
Introduction:
Plant tissue protein production line is puffed my company which to adapt to the requirements of the food market, it is based on years of the development of new equipment experience. The machine use low-temperature soybean meal or peanut meal as raw materials, produce new foods such as lean meat state (commonly known as artificial meat),looks like muscle and taste like mastication.It can be widely used in ham, sausage, canned food, fast food, frozen food production . Nowadays, with the increasing of people's lives,Jinan Chenyang artificial plant meat production is not only nutritional but also the health benefits to the human body, 54 % plant protein to be much higher nutritional than the animal protein.
Voltage:
Chinese Input Voltage is 380V/ 50Hz /3, If it is different from yours , we will adjust it .
Process Flow:

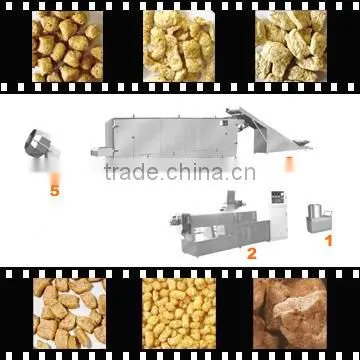

Mixer---extruder---vibrate cooler---air convey---roasting oven---cooling conveyor---(packing machine)
Technical parameter of the protein food production line:
Model |
CY65-III Double-screw extruder line |
CY85-II Double-screw extruder line |
Installed capacity |
90KW |
120KW |
Power consumption |
65KW |
95KW |
Output |
180-220kg/h |
300-500kg/h |
Size |
16.0*1.2*1.8m |
18.0*1.2*1.8m |
Technical parameter of the machine:
NO |
Machine |
Motor Power |
Capacity |
Dimension |
Quantity |
Function |
1 |
Mixer |
4KW |
50kgs /once time |
0.8*0.7*1.5m |
1set |
To mix the raw materals with the water |
2 |
Screw conveyer
|
1.1KW |
100-150kg/h |
3.0*0.8*2m |
1set |
To send the materials to the extruder |
3 |
CY65-III Double screw extruder |
30KW
|
180-220kg/h |
4.0*1.2*3.0 m |
1set |
To extrude and inflate the food.the main machine of the line |
4 |
Air conveyer |
1.5KW |
|
4.1m length |
1set |
To connect two machines |
5 |
3layers 5meter oven |
|
150-300kg/h |
5.0×1.4×2.0m |
1set |
To dry the protein food |
12 |
Cooling machine |
1.2kw |
150-300kg/h |
6m lenth |
1set |
To cool the protein food |

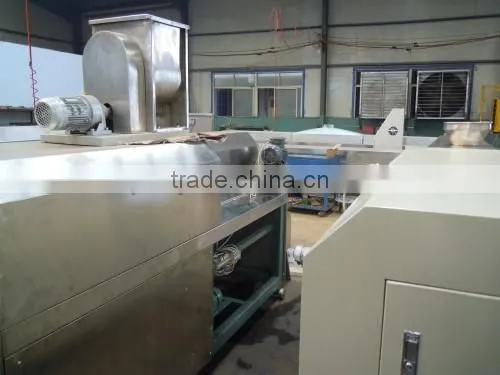

Pictures show:
