Instant Rice/Nutritional Rice Food /Artifical rice Processing line/machine
Technical parameter
Model | CY65-II | CY70-II | CY85-II |
Installed capacity | 54KW | 60KW | 135.5KW |
Power consumption | 35KW | 40KW | 105.6KW |
Output | 120-150kg/h | 160-180kg/h | 200-250kg/h |
Size | 14000*1200*2200mm | 16000*1200*2200mm | 33000*1800*2500mm |
The detailed information for instant rice processing line
NO | Machine
| Motor Power
| Capacity
| dimension
| Quantity
| Function |
1 | Mixer | 4KW | 50kg/3-5mins
| 0.8*0.7*1.5m | 1set | To mix the raw materials with the water |
2 | screw conveyor | 1.1KW | 3.0*0.8*2m | 1set | To send the materials to the extruder | |
3 | CY70-II Double screw extrude | 30KW
| 100-200kg/h | 2.8*1.0*1.8 m | 1set | To extrude and inflate the food. |
4 | Shifter | 0.55KW | 2.0m length | 2sets | To cool and sifting the food | |
5 | air conveyor | 2KW | 5.2m length | 2sets
| To connect two machines
| |
6 | 3layer 5meter dryer | 37KW | 100-200kg/h | 3.0*1.5*2.0m | 1set | To dry the food |
7 | High-temperature gas oven | 13m3 | 100-200kg/h | 4.0*1.7*2.0m | 1set | To inflate the food |
8 | 5layers 8meters dryer | 75KW | 100-200kg/h | 8*1.5*2.0m | 1set | To dry the food |
9 | cooling machine | 1.2kw | 6m length | 1set | To cool the instant rice |
Main features
For the instant rice food processing equipment has advantage of high degree automation
and energy saving.
It can use rice ,millet,brown rice,buckwheat and other cereals as raw materials.
After strengthen mixed with a variety of vitamins,
proteins and minerals,and extruded,mixed and cured in extruder,it became to rice again.
The usage is same to natural rice,but more sample and convenient than before.
It not only nutrition but also adapts to the fast rhythm of the modern life.
Voltage:Three phases: 380V/50Hz, Single phase: 220V/50Hz,
we can make it according to customers' Local voltage according to different countries
The production process flow
For Instant Rice(it is porridge after brewed by boiled water in 3-5 minutes)
Mixer---extruder---vibrate cooler machine machine---roasting machine---vibrate cooler machine --- high-temperature inflated machine---roasting machine---cooling machine---packing
For Nutritional Rice(using the rice powder,Pumpkin powder potato powder etc as material,
mixed with vitamins,proteins,minerals,reduce the cooking time):
Mixer---extruder---vibrate cooler machine machine---cooling machine---
roasting machine---polishing machine---packing
About installation and after-sale service system:
1. We can provide factory layout according to customer’s factory size in advance.
2. When we received your deposit of this order, we will ask our engineers to prepare
to apply the visa, when the processing line arrived your country,
and we will send two engineers to go and help you to install the line, teach your worker(3-4 workers) how to operate the line, until your worker know the line well.
3. Our engineers has responsibility to teach your worker how to clean the extruder,
how to change the screw, how to change barrel etc. and we have responsibility to provide
technology support with you forever.
4. Our engineers can provide basic formula for producing the instant rice and help customer
to produce good quality food according customer’s detailed formula.
5. We provide the spare parts will at preferential price for an extended long time.
6. other item:
a). Free consultation service before, during, and after sales;
b). Free project planning and design services;
c). Free debugging of equipment until everything is functional;
d). Free management of equipments' long distance shipping;
e). Free training of equipment maintenance and operating personally;
f ). Free new production techniques and formulas;
g). Provide 1 year complete warrantee and life-time maintance service;

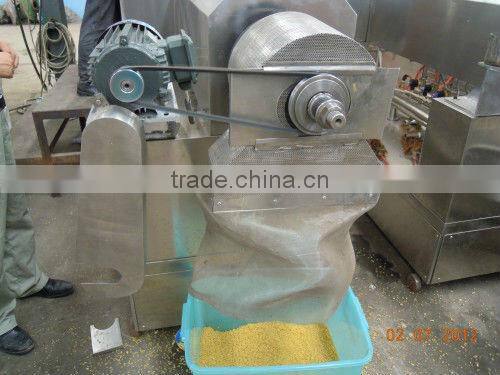

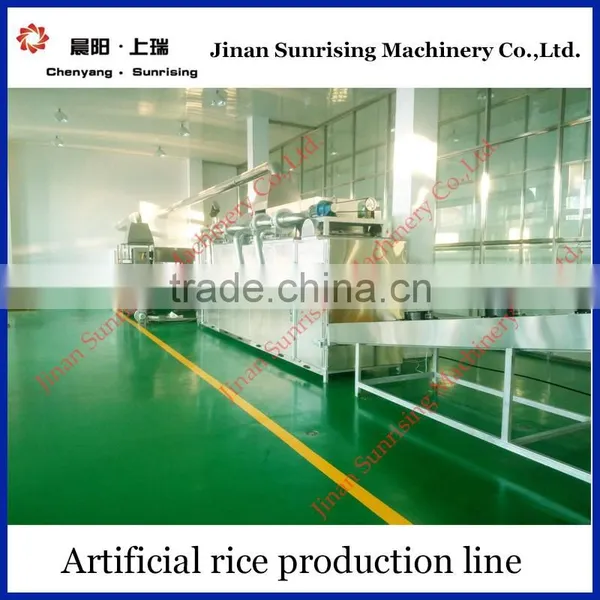

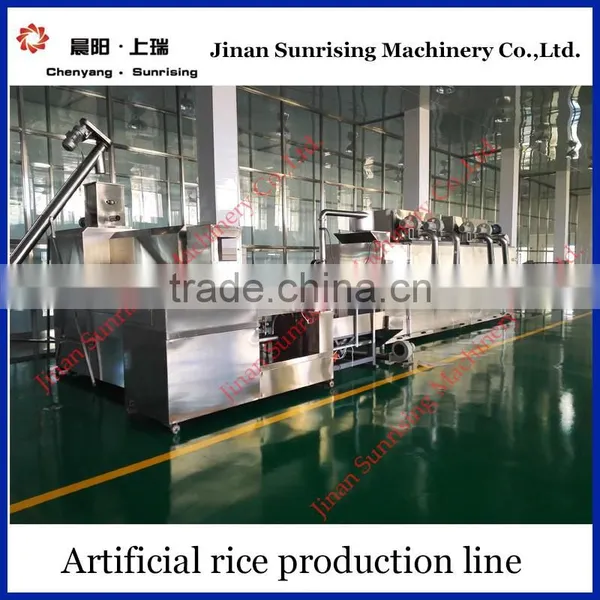

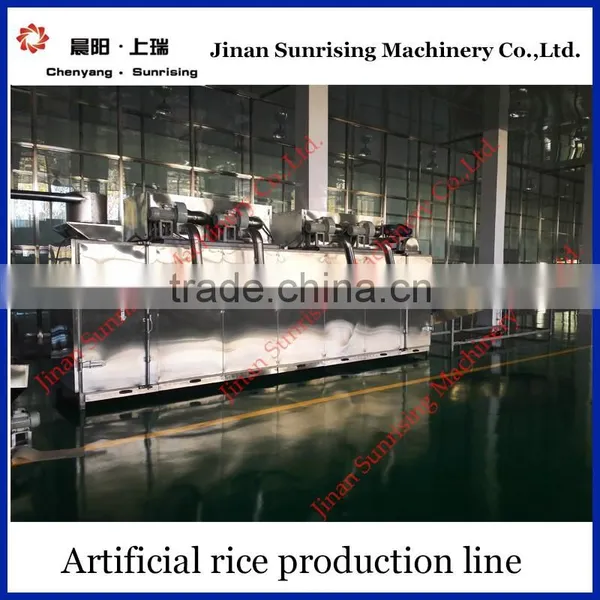

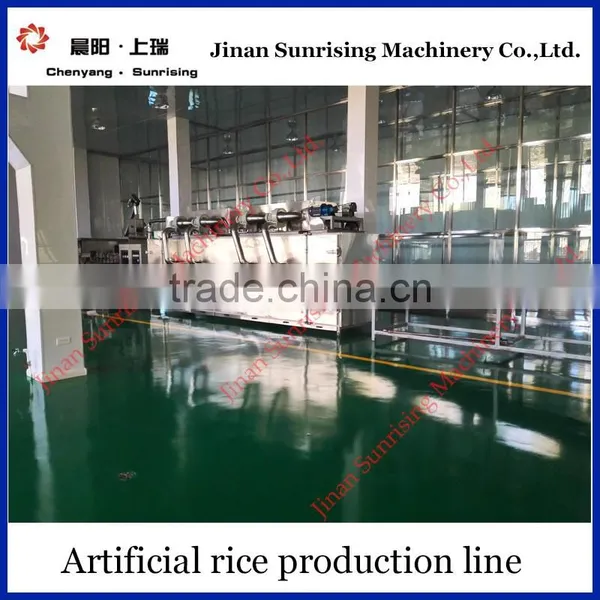

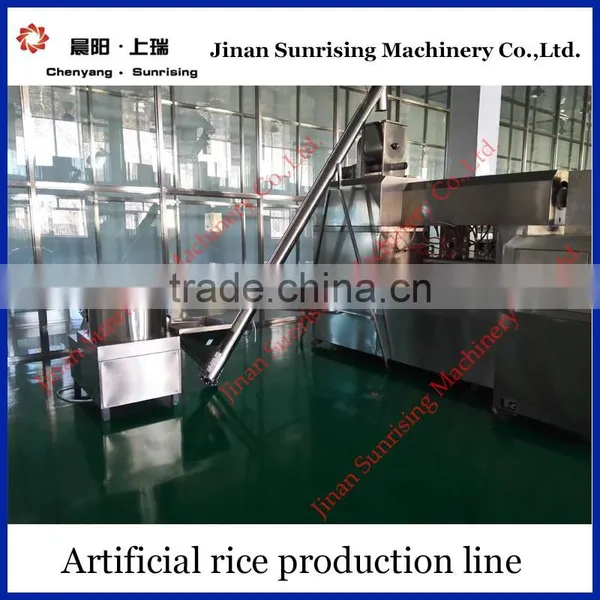

The pictures:
