Specifications
1.best quality2.large amount
3.reasonable price
Artifical rice extruder processing line
Main features
For the instant rice food processing equipment has advantage of high degree automation and energy saving.

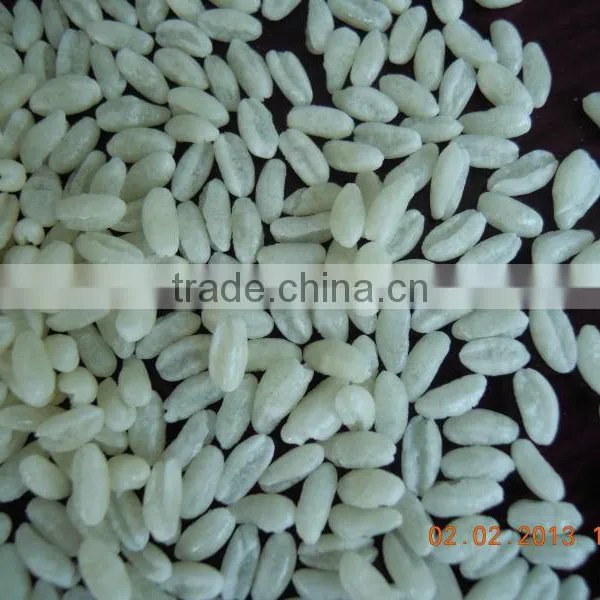

It can use rice ,millet,brown rice,buckwheat and other cereals as raw materials. After strengthen mixed with a variety of vitamins,proteins and minerals,and extruded,mixed and cured in extruder,it became to rice again.
The usage is same to natural rice,but more sample and convenient than before. It not only nutrition but also adapts to the fast rhythm of the modern life.
Voltage:Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
Extruded Instant rice Productions Flow-chart
The production process flow
For Instant Rice(it is porridge after brewed by boiled water in 3-5 minutes)
Mixer---extruder---vibrate cooler machine machine---roasting machine---vibrate cooler machine --- high-temperature inflated machine---roasting machine---cooling machine---packing
For Nutritional Rice(using the rice powder,Pumpkin powder potato powder etc as material,mixed with vitamins,proteins,minerals,reduce the cooking time):
Mixer---extruder---vibrate cooler machine machine---cooling machine---roasting machine---polishing machine---packing
Technical parameter
Model |
CY65-II |
CY70-II |
CY85-II |
Installed capacity |
54KW |
60KW |
135.5KW |
Power consumption |
35KW |
40KW |
105.6KW |
Output |
120-150kg/h |
200-250kg/h |
|
Size |
14000*1200*2200mm |
16000*1200*2200mm |
33000*1800*2500mm |
The detailed information for instant rice processing line
NO |
Machine
|
Motor Power
|
Capacity
|
dimension
|
Quantity
|
Function |
1 |
Mixer |
4KW |
50kg/3-5mins
|
0.8*0.7*1.5m |
1set |
To mix the raw materials with the water |
2 |
screw conveyor |
1.1KW |
|
3.0*0.8*2m |
1set |
To send the materials to the extruder |
3 |
CY70-II Double screw extrude |
30KW
|
100-200kg/h |
2.8*1.0*1.8 m |
1set |
To extrude and inflate the food. |
4 |
Shifter |
0.55KW |
|
2.0m length |
2sets |
To cool and sifting the food |
5 |
air conveyor |
2KW |
|
5.2m length |
2sets
|
To connect two machines
|
6 |
3layer 5meter dryer |
37KW |
100-200kg/h |
3.0*1.5*2.0m |
1set |
To dry the food |
7 |
High-temperature gas oven |
13m3 |
100-200kg/h |
4.0*1.7*2.0m |
1set |
To inflate the food |
8 |
5layers 8meters dryer |
75KW |
100-200kg/h |
8*1.5*2.0m |
1set |
To dry the food |
9 |
cooling machine |
1.2kw |
|
6m length |
1set |
To cool the instant rice |
If you want to know more production,pl click
If you have any questions,pl contact with me asap.
Mobile:008615553172758 Skype:hongzhen.yang2 Trademanager:cn1510969003
