concrete pole machine | concrete pipe plant

Name: concrete pole machine | concrete pipe plant
Brand: CICQ
Price: USD $1,500 - 3,000 / Set

FOB Price

USD $1,500 - $3,000 / Set

1 Set(Min.Order)

Product Details

Place of Origin:	Shandong, China	Brand Name:	CICQ	Model Number:	LX
After-sales Service Provided:	Engineers available to service machinery overseas

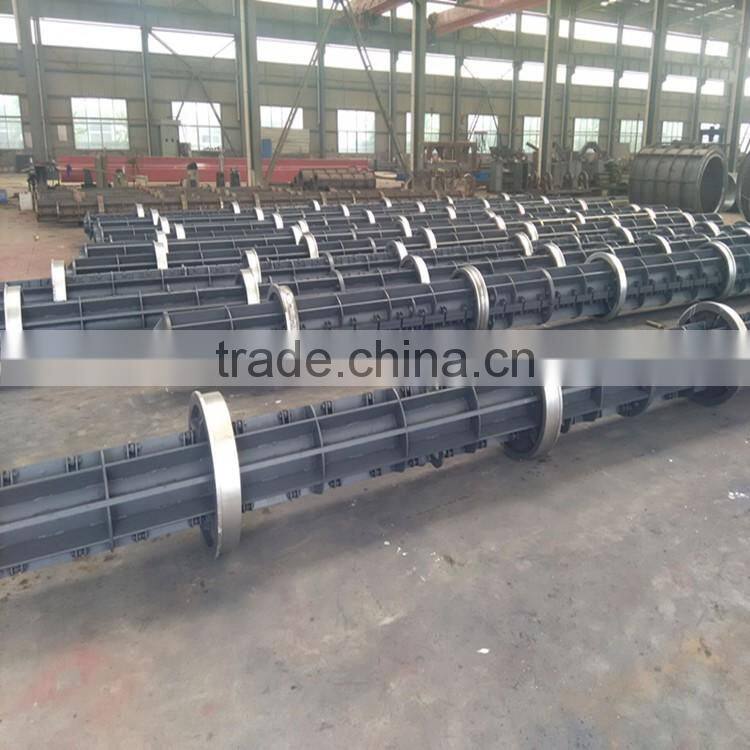

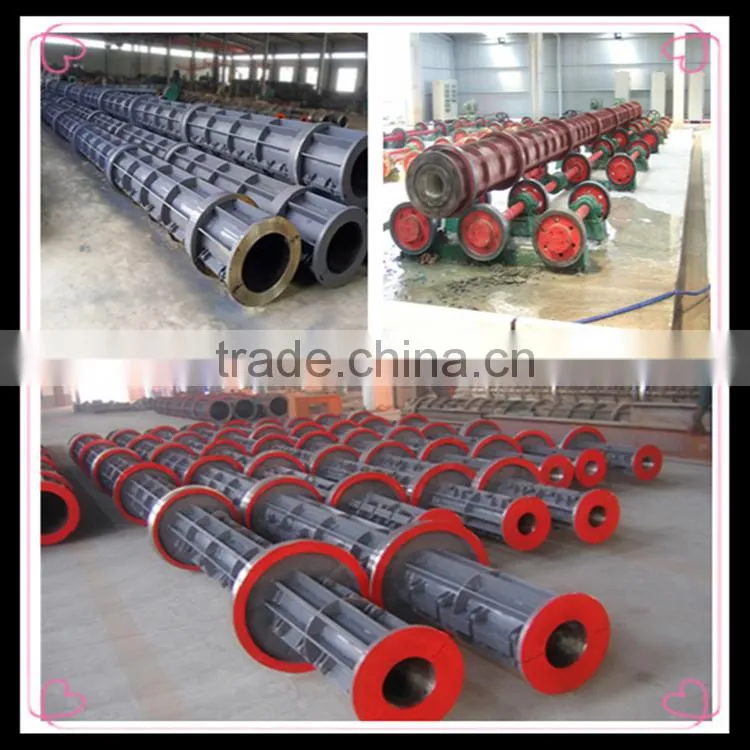

HEAVY TYPE PRESTRESSED CONCRETE SPUN POLE MAKING MACHINE

1. Strong wear- resistance, wheel material 45# casting steel

2. High fitness between mold and spinning machine, close joint tech

3. Long life span and durability, save more cost

4. Reasonable nice design, save space and good-looking

Parameter

No.	Item		Unit	Model
				Double-wheel	Three-wheel
1	Riding wheel thread		MM	1870
2	Riding wheel wheelbase		MM	1500-2800
3	Riding wheel external diameter		MM	800-920
4	Riding wheel width		MM	100
5	Angle between wheel center and the center of steel mould		(°)	75°-110
6	The Max. length of molding drainage pipe		M	2-4
7	The Max. diameter of molding drainage pipe	Plain top/tongue and groove/pipe-jacking	MM	Φ2600	Φ1800
		Bell and spigot		Φ1800	Φ1800
8	The motor power		KM	37-90	55-132
9	The range of speed of main drive axle		r/min	100-500(continuous)	100-500(continuous
