Centrifugal Pump,sewage water pump, Single stage sewage pump
- 1400 Set / Sets per Month
- Chongqing
-
MONO progressive block for prefabried concrete houses
-
MONO progressive block for concrete pump spare parts
-
MONO progressive block for ready mix concrete trucks
-
MONO progressive block for concrete statue molds
-
MONO progressive block for concrete columns mold
-
MONO progressive block for gearbox for concrete mixer
Product Details
| Place of Origin: | Chongqing, China | Brand Name: | JUANYONG | Model Number: | WB100 |
| Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
| Power: | Other, Hydraulic, 15hp | Standard or Nonstandard: | Standard | Fuel: | Other, diesel&gasoline |
| Pressure: | Low Pressure | Application: | Sewage |
Product Description
Centrifugal Pump,sewage water pump, Single stage sewage pump
Sewage features
Suitable for pumping up to include 30% solid sewerage.
Particles up to 15mm soft granule can be pumping through.
Guaranteed suction head of 7 meters.
Long bolt assembly for easy maintenance.

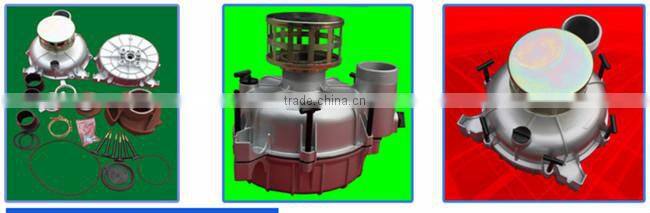

Product of picture
Advantages we have:
A. Experienced slate products supplier.
B. Professional design team and sales department for your service.
C. Alibaba golden supplier, factory recognized by "CE/IS9001"and so no.
D. 7/24 service for you all the question will be dealed within 24 hours.
Benelit you got:
A.Stable quality-coming from good material and technic.
B.Lower price-not cheapest but the lowest at the same quality.
C.Good service-satisfactory service before and after sale.
D.Delivery time10-15 days for mass production.

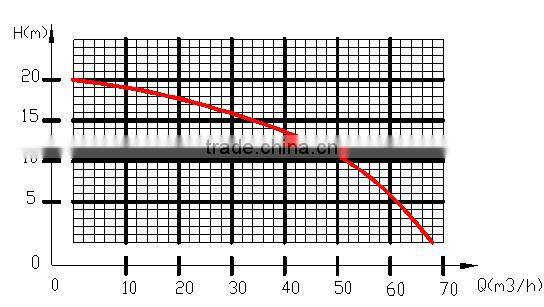

Performance
Parameter
ITEM | WB100 |
Outlet Size(mm) | 100 |
Inlet Size(mm) | 100 |
Speed(rpm) | 3600 |
Displacement Q.max(m3/h) | 68 |
Lift H.max(m) | 20 |
Suction(m) | 5 |
Power | 15hp |

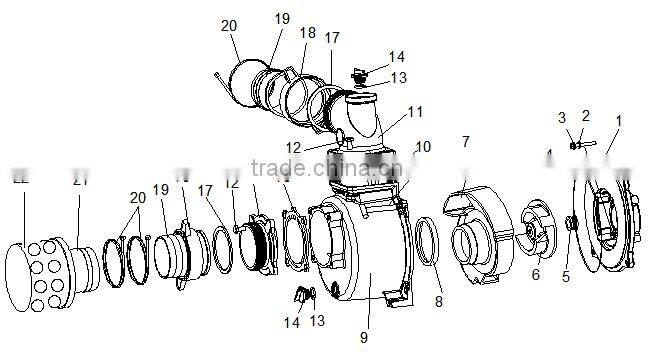

Serial number | Name | Number |
1 | Water pump cover | 1 |
2 | Aluminum flat washer φ8×φ16×1.5 | 5 |
3 | Bolt M8×45 GB5787 | 4 |
4 | Pump sealing ring | 1 |
5 | Mechanical seal / ceramic | 1 |
6 | Impeller | 1 |
7 | Eddy shell | 1 |
8 | Eddy shell sealing ring | 1 |
9 | Water pump body | 1 |
10 | Outlet gasket | 1 |
11 | The water outlet joint | 1 |
12 | Bolt M10×30 | 8 |
13 | Rubber plug gasket | 2 |
14 | Threaded plug pump | 2 |
15 | Inlet sealing gasket | 1 |
16 | Inlet joint | 1 |
17 | Pipe joint sealing gasket | 2 |
18 | Pipe joint connecting nut | 2 |
19 | Pipe joint | 2 |
20 | Clamp | 3 |
21 | The filtering orifices | 1 |
22 | Filter cover | 1 |
23 | T bolt | 4 |
Business type:manufacturer,trading company.
Location:chongqing,china(mainland).
Year established:2010.
Company certifications:
Main products:chemical pumps,sewage pumps,self priming drag pumps,self priming
high lift pumps,self priming pumps.
Our philosophy is to provide our clients with a wide choice of quality products and
unprecedented services,we assure our clients of a mutually beneficial relationship
as we look forward to developing a long term strategic partnership with your
esteemed organization.
Customers to visit our factory
1.Q:Are you a manufactory or trading company?
A:We are water pump manufactory with more than seven years production experience,
welcome to visit our factory.
2.Q:What's your MOQ?
A:Trial sample order is ok.
3.Q:What's ypur payment terms?
A:T/T 30% payment in advance,70% pay it when we send all goods after.
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps
in China and we will provide 24 hours services for customer. If you have any needs or technque
question, you can choose by online talk or call us directly.
