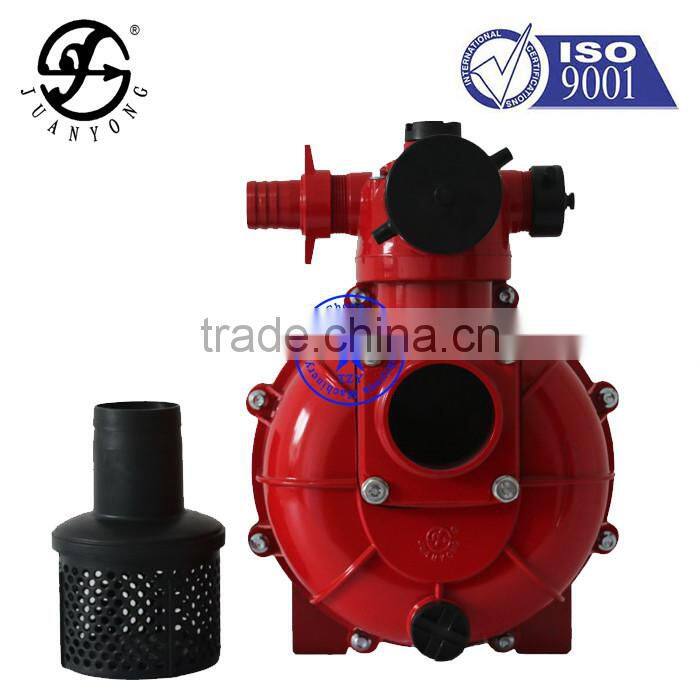

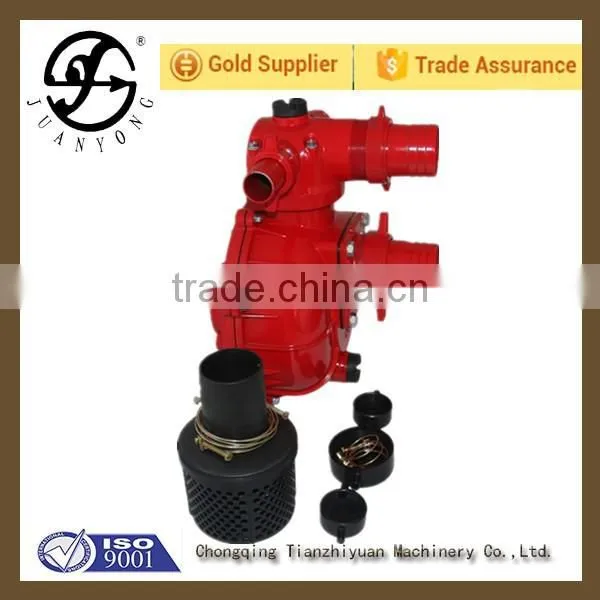

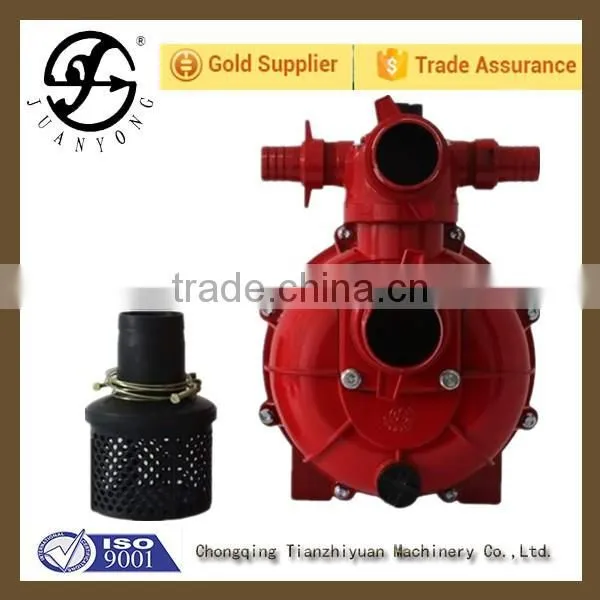

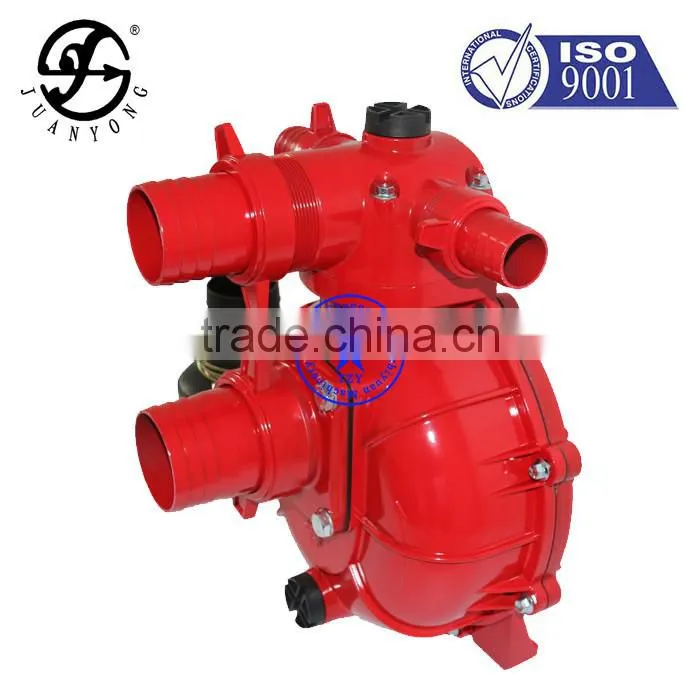

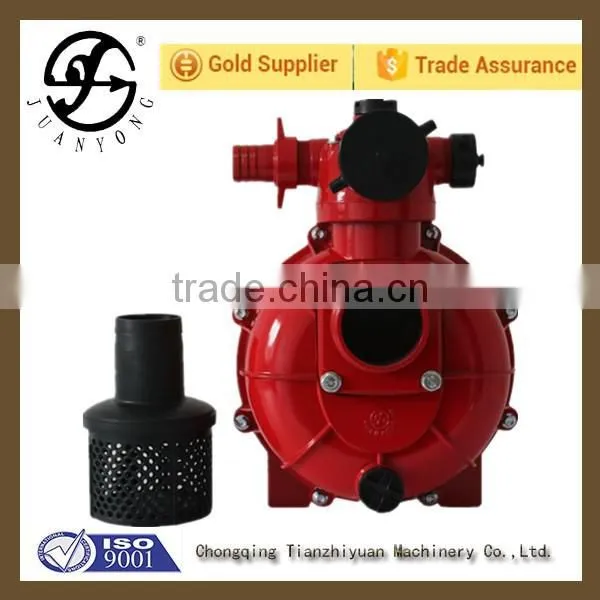

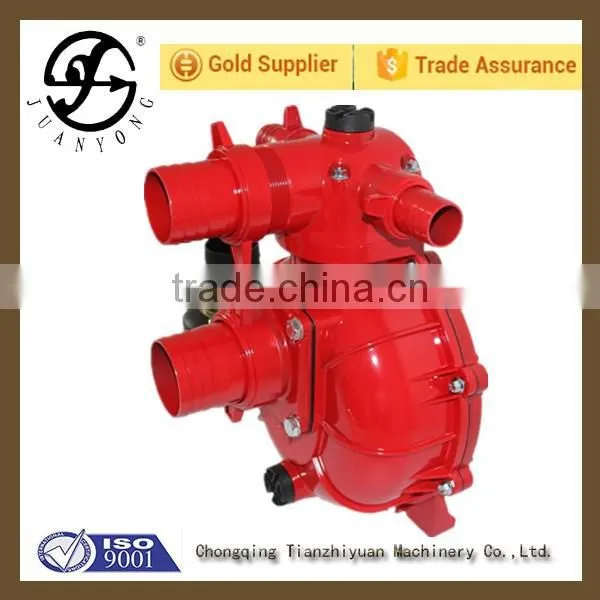

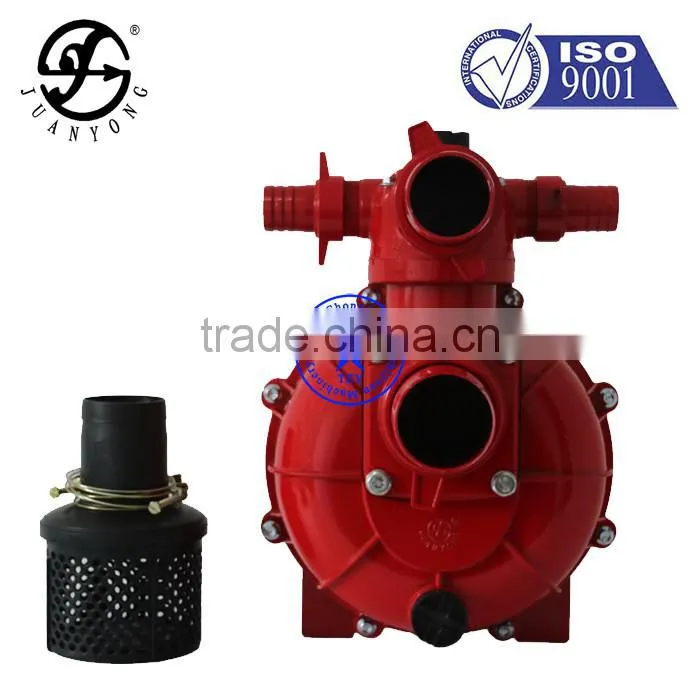

Help Center70m High Lift Diesel Engine Driven High Pressure Water Pump
Related Products
-
High Lift Diesel Engine Powered Centrifugal Syringe PumpUS$ 66 - 70MOQ: 10 Sets -
High Lift High Pressure Aluminum Body Water Spray PumpUS$ 66 - 70MOQ: 10 Sets
-
3 Inch Max Loft 70m High Pressure Three Discharge Port Fire Water PumpUS$ 67 - 72MOQ: 10 Sets
-
High Lift Pump(3 Inches) With Aluminum Material For Axial Hydraulic Motor China Fire PumpsUS$ 40 - 50MOQ: 5 Sets
-
High Lift Pump(3 Inches)USAGE for Outdoor Water Fountains With Agriculture Water Pump Made in ChinaUS$ 65 - 75MOQ: 5 Sets
Introduction of 3 inch water pump
We specilize in water pump for many years, which has enjoyed great popularity in world market.This kind of high pressure water pump is designed with 190F engine, which can work efficiently and stably.
Features:
1.2" suction and three discharge port
2.Rigid mounted cast iron volute and aluminium double mpeller
3.Strong die cast aluminium alloy
4.Guaranteed suction head of 7 meters.
5.One year warranty on pump
Specifications of 3 inch water pump
| Item | HP80-F |
| Inlet Size(mm) | 80 |
| Outlet Size(mm) | 65 |
| Speed(rpm) | 3600 |
|
Displacement Q.max(m3 /h) |
55 |
Lift H.max(m) |
70 |
| Suction(m) | 7 |
| Engine Model | 190F |
Engine Crankshaft Data Request
| No. | Name | Number |
| 1 | water pump cover | 1 |
| 2 | Aluminum flat washer Φ8×φ16×1.5 | 4 |
| 3 | Bolt M8×60 GB5787 | 4 |
| 4 | Pump sealing ring | 1 |
| 6 | mechanical seal/ceramic | 1 |
| 7 | Impeller | 1 |
| 8 | Eddy shell | 1 |
| 9 | Eddy shell sealing ring | 1 |
| 10 | water pump body | 1 |
| 11 | Outlet gasket | 1 |
| 12 | The water outlet joint | 1 |
| 13 | Bolt M8 | 12 |
| 14 | Rudder plug gasket | 2 |
| 15 | Threaded plug pump | 2 |
| 16 | Inlet sealing gasket | 1 |
| 17 | Inlet joint | 1 |
| 18 | Pipe joint sealing gasket | 2 |
| 19 | Pipe joint connecting nut | 2 |
| 20 | Pipe joint | 2 |
| 21 | Clamp | 3 |
| 22 | The filtering orifices | 1 |
| 23 | filter cover | 1 |
Certificate of Tianzhiyuan Water Pump
Our Service
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
FAQ
1.What’s your MOQ?
The sample order is OK.
2.What’s your payment terms?
T/T,L/C,D/A,D/P,etc.
