China Supplier Fire Fighting Usage Red 3 Inch High Pressure Diesel Water Pump
US$ 65 - 75
/ Set
10 Sets(Min. Order)
- Shanghai or Chongqing Port
- T/T
You May Like
-
3 Inch High Discharge Max Pressure 125 Psi Engine Driven High Pressure Water Pum
-
High Lift High Pressure Aluminum Body Water Fire Pump
-
High Lift High Pressure Water Pump Inline Water Booster Pump
-
Juanyong Brand 3 Inch High Lift High Pressure Water Pump
-
70m High Lift Diesel Engine Driven High Pressure Water Pump
-
High Lift Diesel Engine Powered Centrifugal Syringe Pump
Product Details
| Place of Origin | Chongqing, China | Brand Name | Juanyong | |
| Model Number | HP80 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | High Pressure | |
| Application | Other, Irrigation, fire fighting |
Product Description
Introduction of 3 inch diesel water pump
Features:
1.2" suction and three discharge port
2.Rigid mounted cast iron volute and aluminium double mpeller
3.Strong die cast aluminium alloy
4.Guaranteed suction head of 7 meters.
5.One year warranty on pump
Specifications of 3 inch diesel water pump
| Item | HP80 |
| Inlet Size(mm) | 80 |
| Outlet Size(mm) | 65 |
| Speed(rpm) | 3600 |
Displacement Q.max(m3 /h) | 55 |
Lift H.max(m) | 70 |
| Suction(m) | 7 |
| Engine Model | 190F |

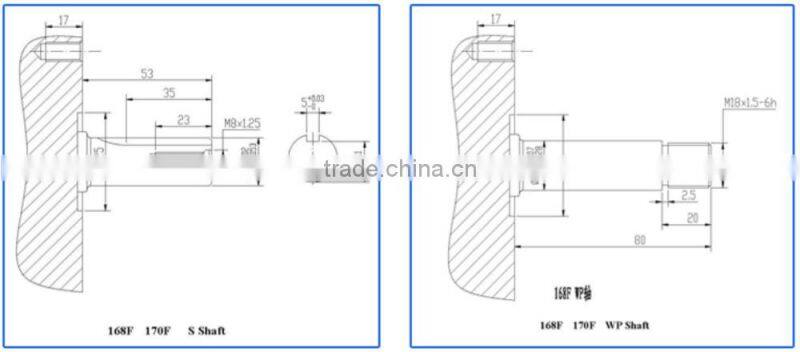

Engine Crankshaft Data Request

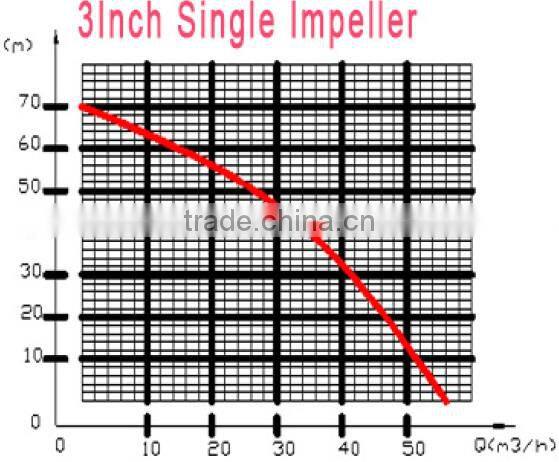

Performance Curve
Water Pump Part List
| No. | Name | Number |
| 1 | water pump cover | 1 |
| 2 | Aluminum flat washer Φ8×φ16×1.5 | 4 |
| 3 | Bolt M8×60 GB5787 | 4 |
| 4 | Pump sealing ring | 1 |
| 6 | mechanical seal/ceramic | 1 |
| 7 | Impeller | 1 |
| 8 | Eddy shell | 1 |
| 9 | Eddy shell sealing ring | 1 |
| 10 | water pump body | 1 |
| 11 | Outlet gasket | 1 |
| 12 | The water outlet joint | 1 |
| 13 | Bolt M8 | 12 |
| 14 | Rudder plug gasket | 2 |
| 15 | Threaded plug pump | 2 |
| 16 | Inlet sealing gasket | 1 |
| 17 | Inlet joint | 1 |
| 18 | Pipe joint sealing gasket | 2 |
| 19 | Pipe joint connecting nut | 2 |
| 20 | Pipe joint | 2 |
| 21 | Clamp | 3 |
| 22 | The filtering orifices | 1 |
| 23 | filter cover | 1 |

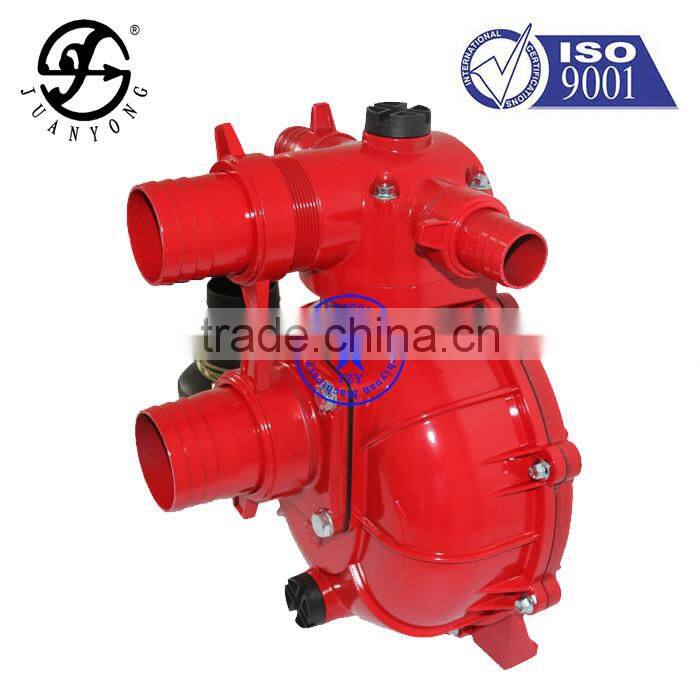

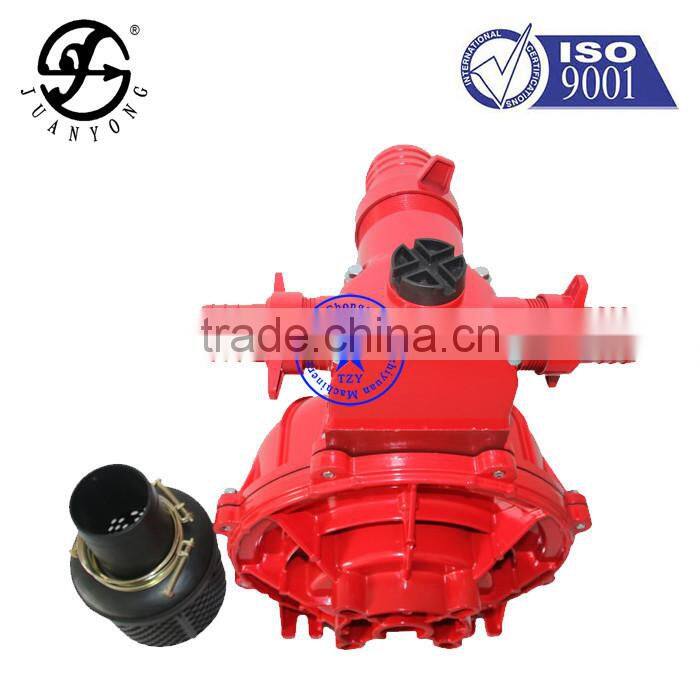

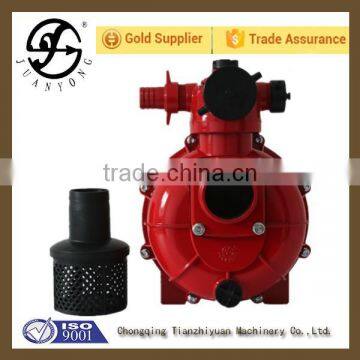

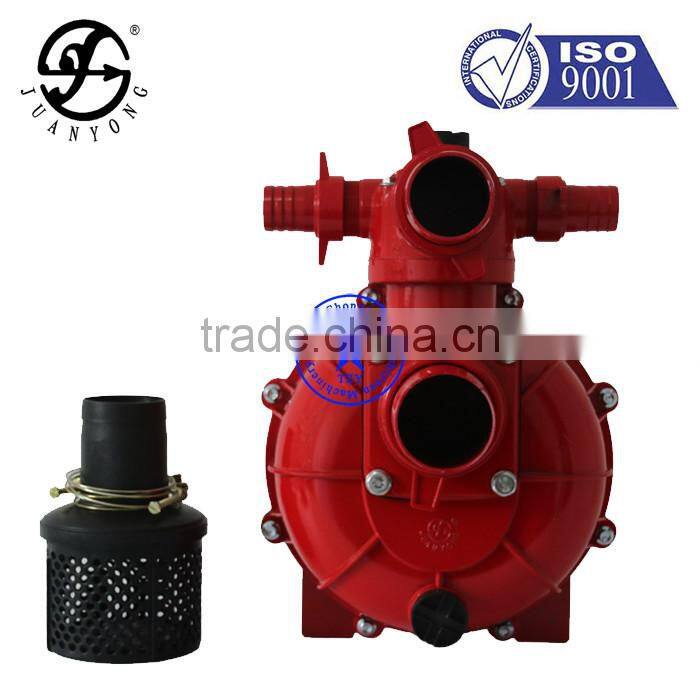

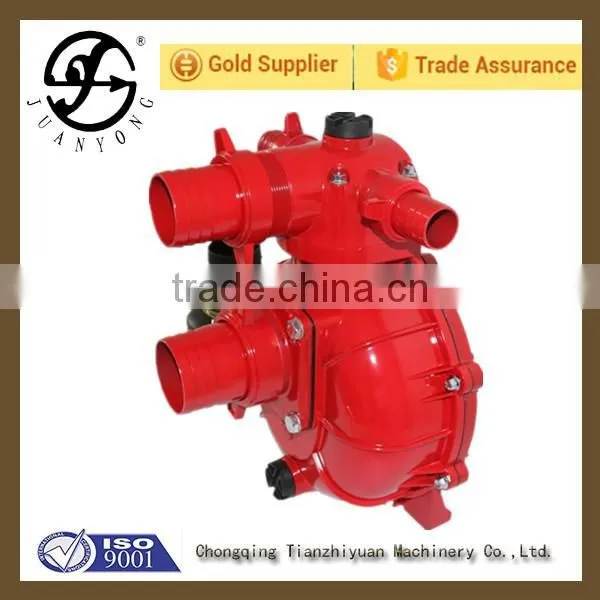

Image of 3 inch diesel water pump

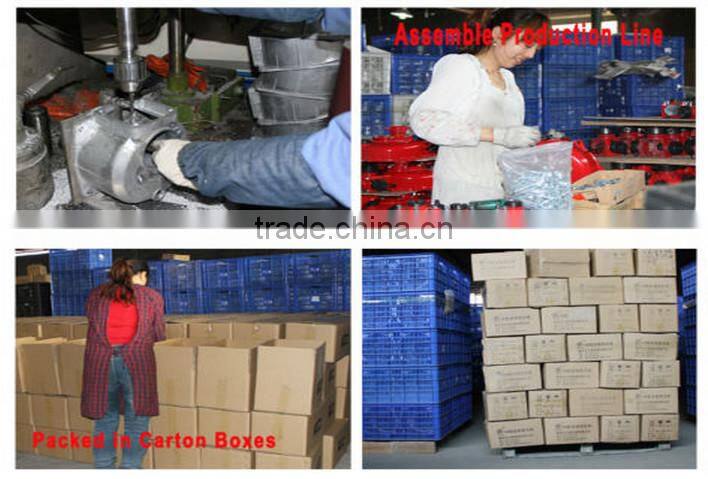

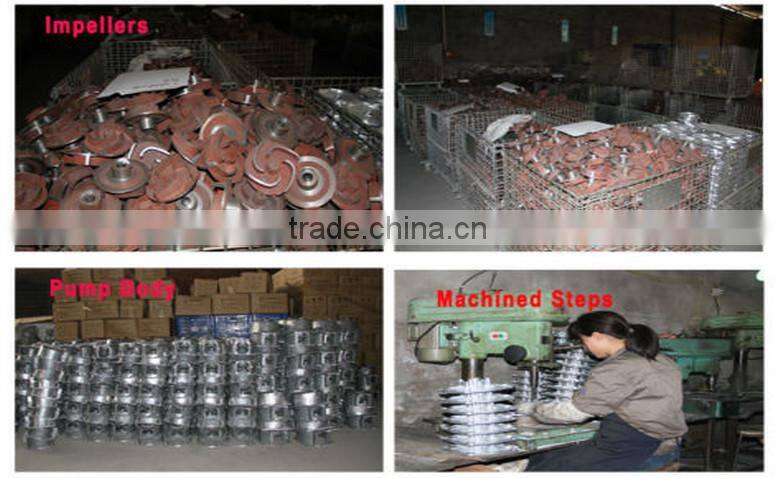

Factory Pictures
Certificate of Tianzhiyuan Water Pump
Our Service
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
FAQ
1.What’s your MOQ?
The sample order is OK.
2.What’s your payment terms?
T/T,L/C,D/A,D/P,etc.
Contact Us
- Chongqing Tianzhiyuan Machinery Co., Ltd.
- Contact nameJane Zhang Chat Now
- Phone86-023-86083286
- AddressFuzibao Community, Tianma Village, Xiema Town
